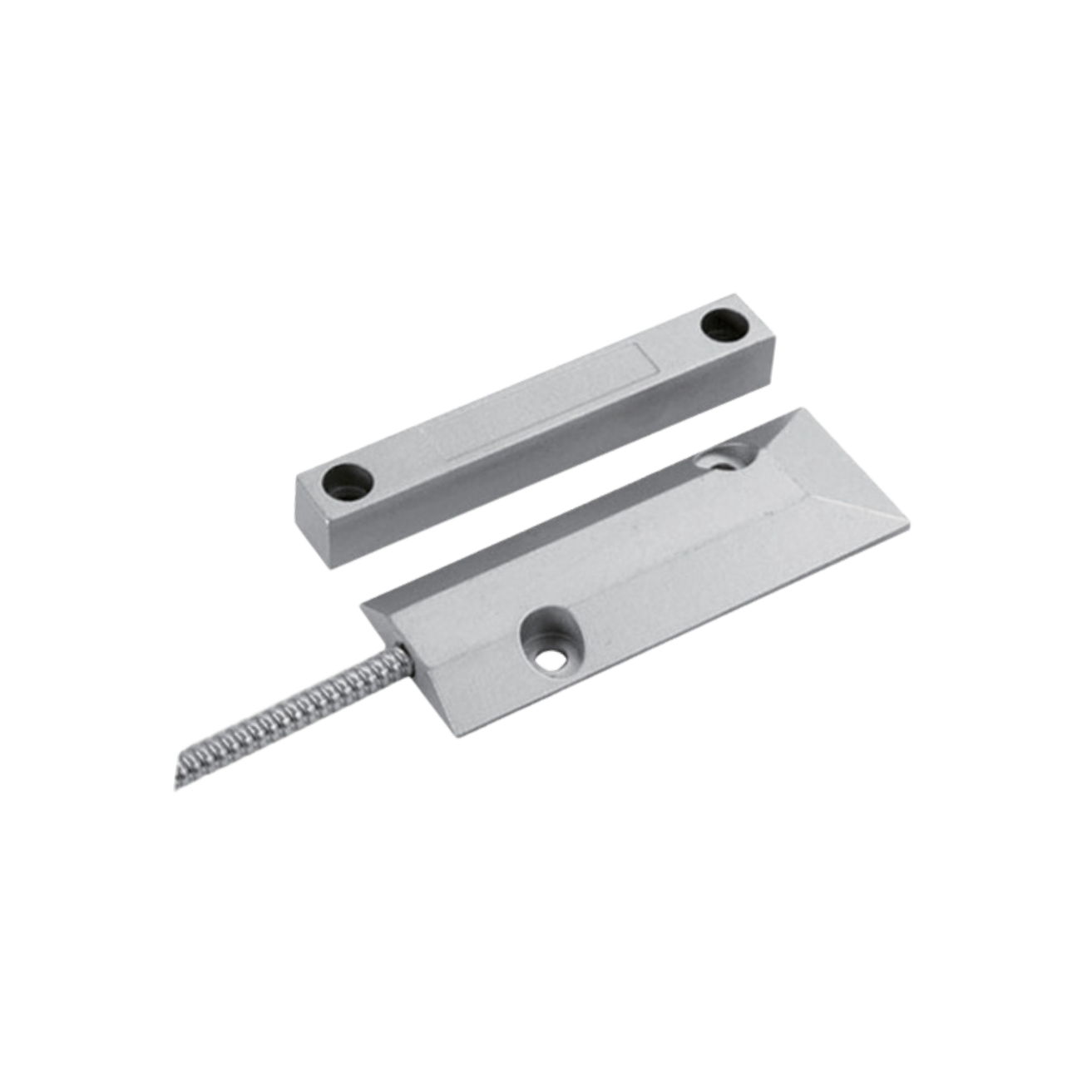

Door Contact for Shutter Door – Q-55Z

Technical Specification

Switching Form: NC/NO options.
Operating Distance: ≥50mm.
Voltage/Current: 100V DC/AC, 0.5A.
Contact Load: 10W.
Material: Zinc alloy

Description

The Q-55Z is a high-performance intrusion detector designed to monitor the status of doors and windows in anti theft systems. Utilizing a reed tube switch and magnet, it triggers an alarm when a door or window is opened without authorization, disrupting the magnetic field. Constructed with durable zinc alloy, it is built to withstand various environmental conditions.

Product Advantage and Applications

•Reliable Switching Mechanism: Offers both NC (normally closed) and optional NO (normally open) configurations for versatile applications.
•Extended Detection Range:
Operates effectively at a distance of ≥50mm, ensuring a broad detection area for enhanced security.
•Durable Construction:
Manufactured from premium zinc alloy, providing resistance to wear and environmental damage.
