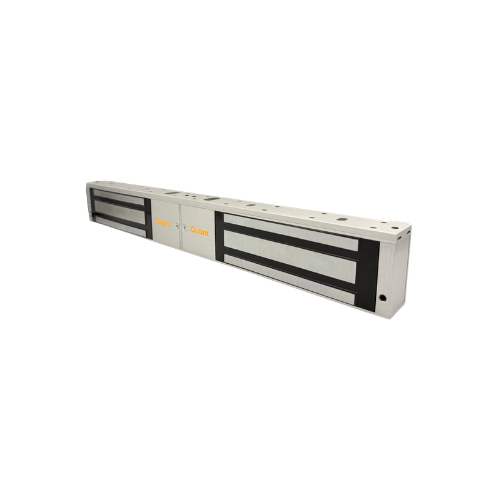

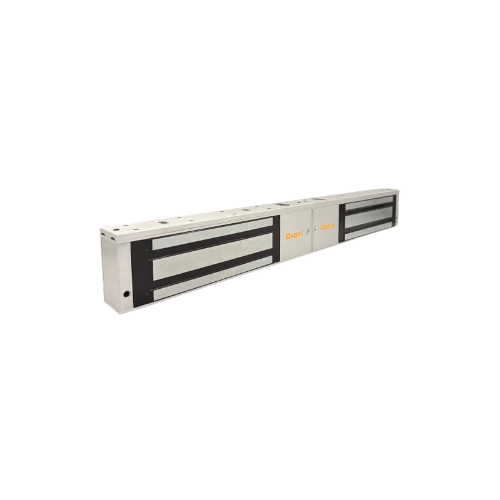

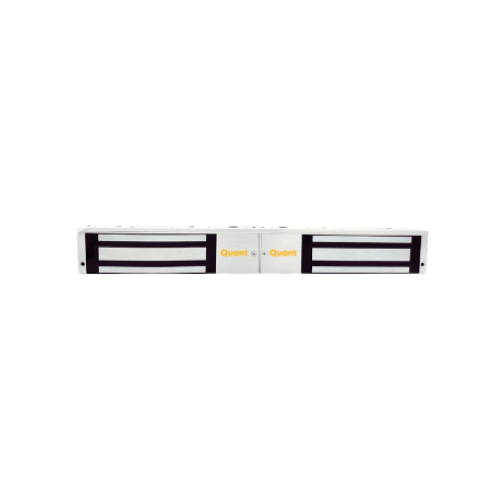

Electro Magnetic Locks 2 pin 500kg (1200 lbs) – Q-Y500D (LED,2PIN)

Technical Specification

•Holding Force: 560 kg (1200 lbs)
•Lock Size: 500mm x 47mm x 25mm
•Working Voltage: 12V/24V DC
•Working Current: 400mA at 12V DC, 200mA at 24V DC
•Fail-Safe Features: LED Indicator
•Application: Designed for dual door installations, suitable for commercial, industrial, and institutional settings
•Installation: Surface-mounted

Description

The Q-Y500D (LED, 2PIN) is a robust surface-mounted magnetic lock designed for dual door applications, providing a holding force of 560 kg (1200 lbs). The lock features an LED indicator for visual status monitoring and operates with a 2-pin connection. This lock is ideal for high-security environments where reliable access control for dual doors is essential.

Product Advantage and Applications

•Fail-Safe Operation: Designed to automatically unlock in the event of a power
failure, ensuring safe exit during emergencies.
•Durable Construction: Made with high-quality materials, this lock is built to
withstand regular use and harsh conditions, ensuring long-lasting reliability.
•Versatile Applications: Ideal for securing dual doors in commercial spaces, offices,
and residential properties, this lock combines security with convenience.
