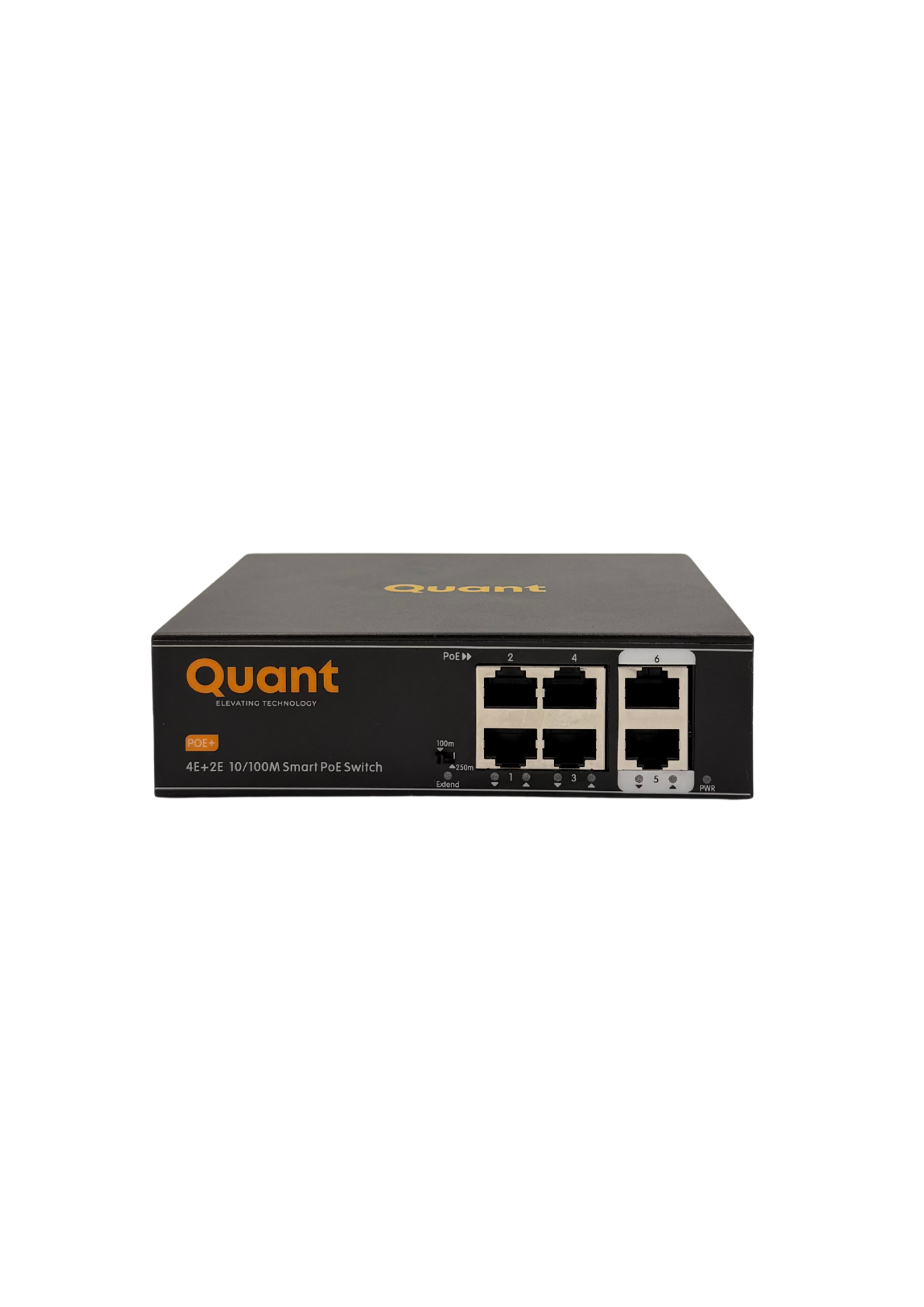

208 Series 4-Port Fast Ethernet PoE+ Unmanaged Switch with 2 × Uplink Ports – Q-UM-208-4P-2EU

Technical Specification

  • Switching Capacity: 1.6 Gbps
  • Forwarding Rate: 1K
  • Buffer Memory: 768 K
  • Jumbo Frame: 1536 byte
  • Input Voltage: 65 W
  • Uplink Ports: 2 × 10/100 Mbps RJ45

Description

The Quant 208 Series is a compact, cost‑effective Fast‑Ethernet PoE switch family designed for surveillance, Wi‑Fi, VoIP, and access‑control deployments. With 4 or 8 PoE+ access ports and dual uplinks (RJ45 and optional SFP on select models), the series delivers plug‑and‑play installation, robust surge protection, and watchdog‑assisted PoE auto‑recovery to keep critical devices online. Typical applications include hotels, campuses, retail, factories, and SMEs where simplicity, stability, and PoE budget efficiency matter.

Product Advantage and Applications

  • PoE+ on all access ports — up to 30 W per port (IEEE 802.3af/at), with built‑in PSU
  • Auto‑recovery (watchdog) — restarts a PoE port if the camera/AP stops responding
  • Extend & VLAN‑isolation mode — optional long‑distance 10 M / 250 m transmission on access
    ports with port isolation for simple segmented networks
  • Uplink flexibility — dual RJ45 uplinks; 1× SFP (1000BASE‑X) on 8P‑1S model for fiber backhaul
  • Wire‑speed switching with store‑and‑forward and jumbo‑frame support (model‑dependent)
  • Industrial‑grade protection — 4 kV lightning protection, IP30 enclosure
  • Wide temperature operation −20 to +55 °C, fanless designs
  • Desktop / Wall‑mount options; compact metal chassis
ENQUIRE NOW
File Name Size Download
208-Series-PoE-switch-Q-UM-208-4P-2EU-Q-UM-208-8P-2EU-Q-UM-208-8P-1S-2EU.pdf 1.08 MB Download
