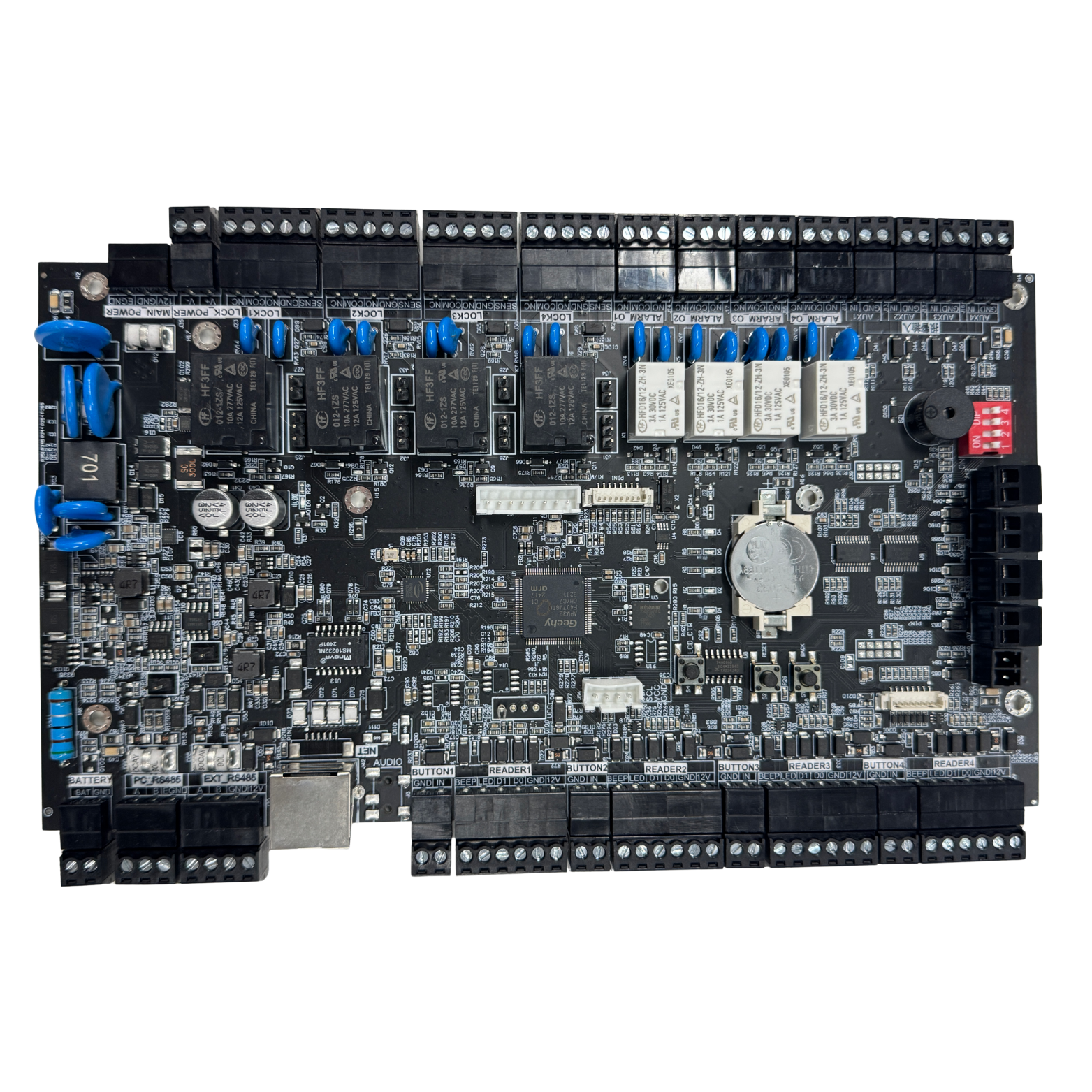

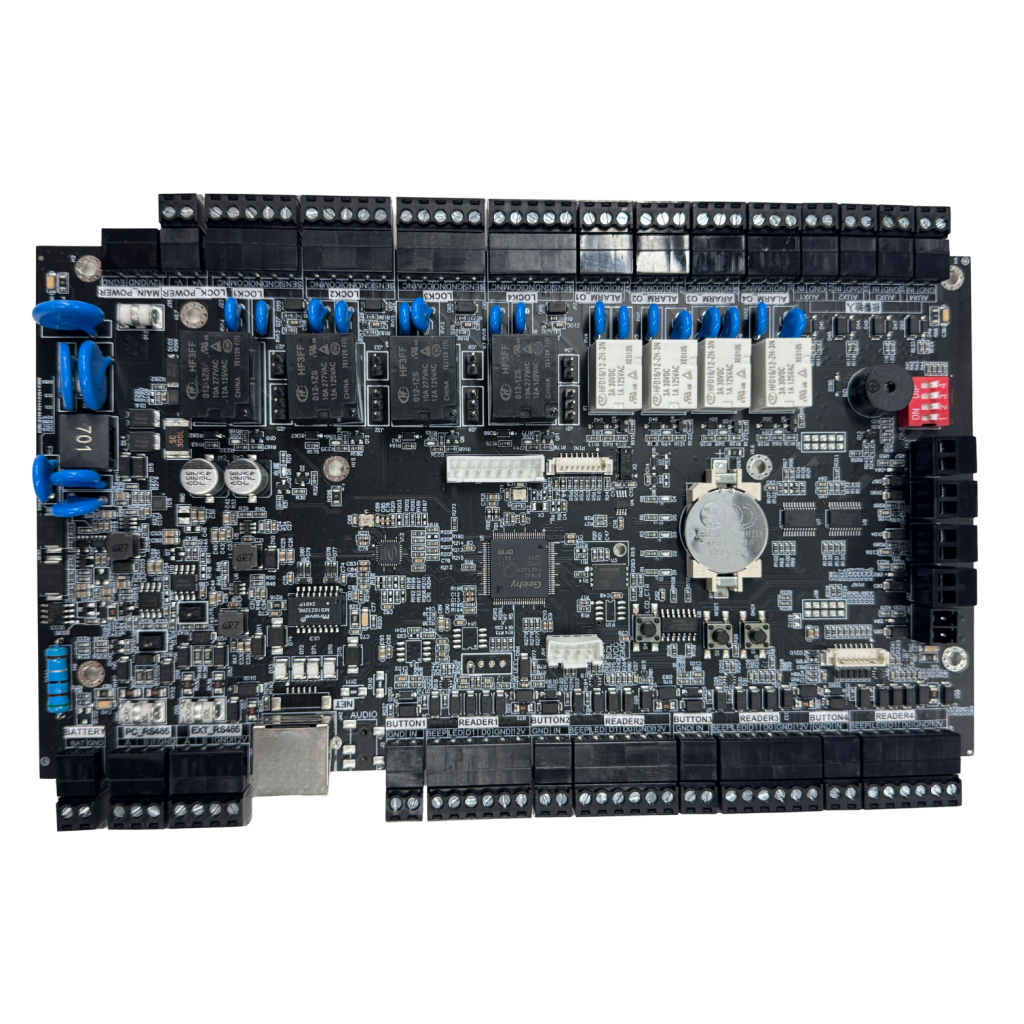

4-Door Controller – Q-AC04

Technical Specification

•4-Door Controller
•Authentication: Fingerprint, RFID card, Password
•Connectivity: TCP/IP, USB, RS485, Wi-Fi
•Capacity: 10,000 fingerprints, 30,000 cards, 5,000 passwords
•Record Storage: 100,000 logs
•Power Supply: DC 12V
•Dimensions: 215mm x 105mm x 35mm

Description

Q-AC04 (4-Door Controller): A compact access control solution for managing up to 4 doors. Supports fingerprint, RFID card, and password authentication, with centralized monitoring via TCP/IP, USB, or RS485. Offers a capacity of 10,000 fingerprints, 30,000 cards, and 5,000 passwords, with 100,000 log storage. Ideal for small to medium installations

Product Advantage and Applications

•Versatile Authentication: Supports multiple methods, including fingerprint, RFID card, and password, ensuring flexible security.
•Centralized Management: Real-time monitoring and control through TCP/IP, USB, or RS485 connectivity.
•High Storage Capacity: Stores up to 100,000 access logs, perfect for detailed tracking and reporting
