AI Core XR144-H8<br><span>High-Density 4U AI Server For Deep Learning, GPU Computing, and Scientific Simulation</span>

AI Core XR144-H8
High-Density 4U AI Server For Deep Learning, GPU Computing, and Scientific Simulation

Technical Specification

  • Dual Socket P+ platform supporting Intel® Xeon® Gen 3 Scalable Series processors
  • Intel® C621A chipset with ASPEED AST2500 BMC
  • 16 memory slots supporting ECC DDR4 RDIMM / 3DS RDIMM
  • Up to 4TB memory with Intel® Optane™ PMem 200 support
  • 6 × PCIe 4.0 x16, 1 × PCIe 4.0 x8, plus 2 × M.2 PCIe 4.0 x4
  • 2 × SATA 3.0 DOM and 2 × MCIO interfaces for storage expansion
  • 2 × 10 Gigabit RJ45 Ethernet ports using Intel® X550
  • 1 × dedicated RJ45 management port with IPMI LAN
  • 2000W 1+1 redundant power supply
  • 4U high-density rackmount GPU server

Description

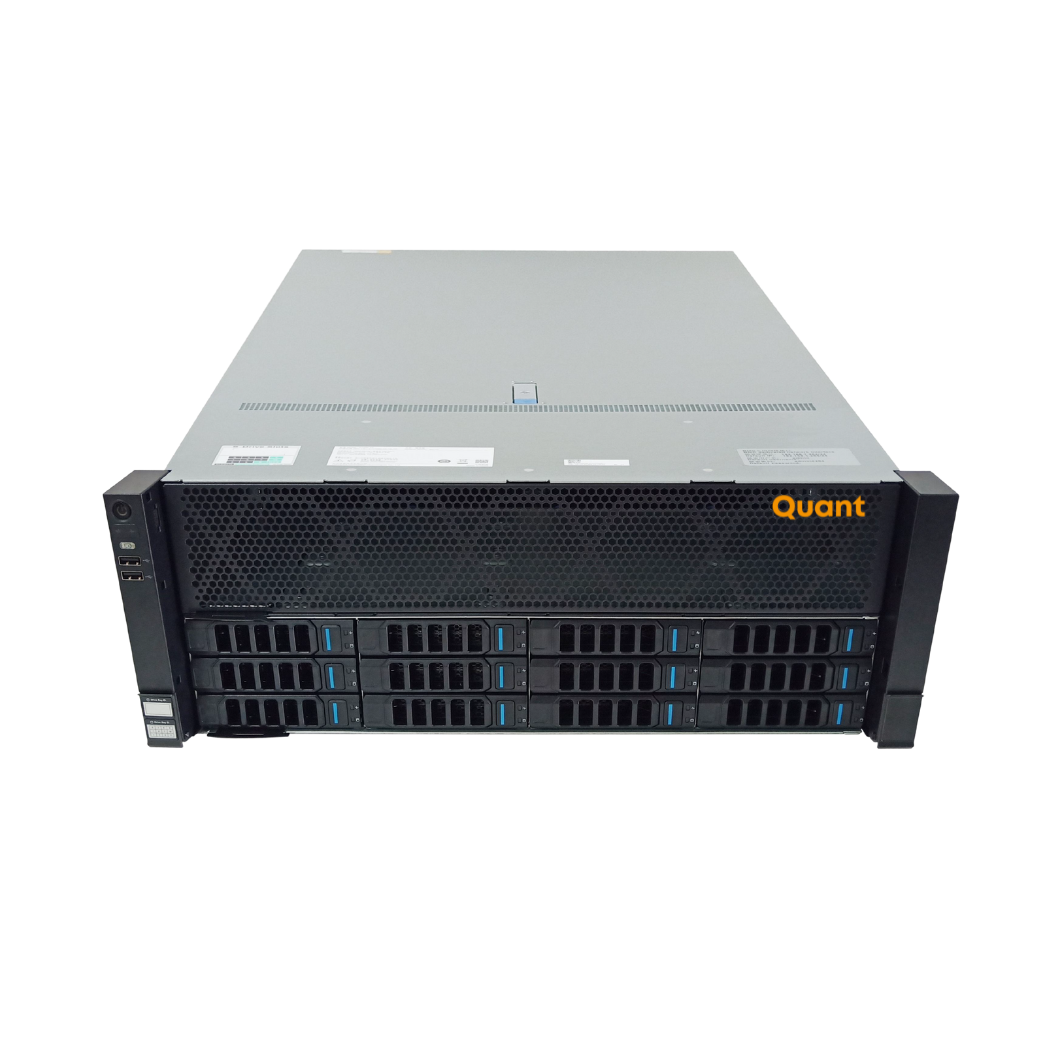

The Quant AI Core XR144-H8 is a high-density 4U rackmount GPU server designed for AI infrastructure, GPU-enabled computing, and enterprise acceleration workloads. With support for Intel® Xeon® Gen 3 Scalable processors, high-capacity memory, PCIe 4.0 expansion, and 10GbE connectivity, it delivers the performance, scalability, and reliability required for modern data centers and compute-intensive enterprise environments.

Product Advantage and Applications

The XR144-H8 is designed for high-density AI computing, GPU-enabled workloads, and enterprise processing.

With dual Intel® Xeon® Gen 3 Scalable processor support, up to 4TB memory, and PCIe 4.0 expansion, it is ideal for:

  • AI Model Training & Inference
  • GPU Computing & Parallel Data Processing
  • Scientific Simulation & Engineering Analysis
  • Virtualization & Enterprise Workloads
  • Data Center AI Infrastructure

This platform delivers scalable performance and reliable operation for modern AI and compute-intensive environments.

ENQUIRE NOW
File Name Size Download
AI-Core-XR144-H8-1.pdf 1.99 MB Download

Related Products

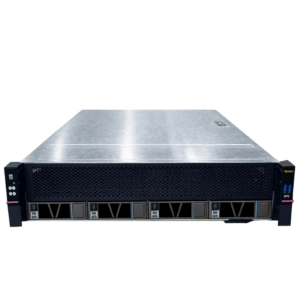

COMPUTE EDGE CR264
