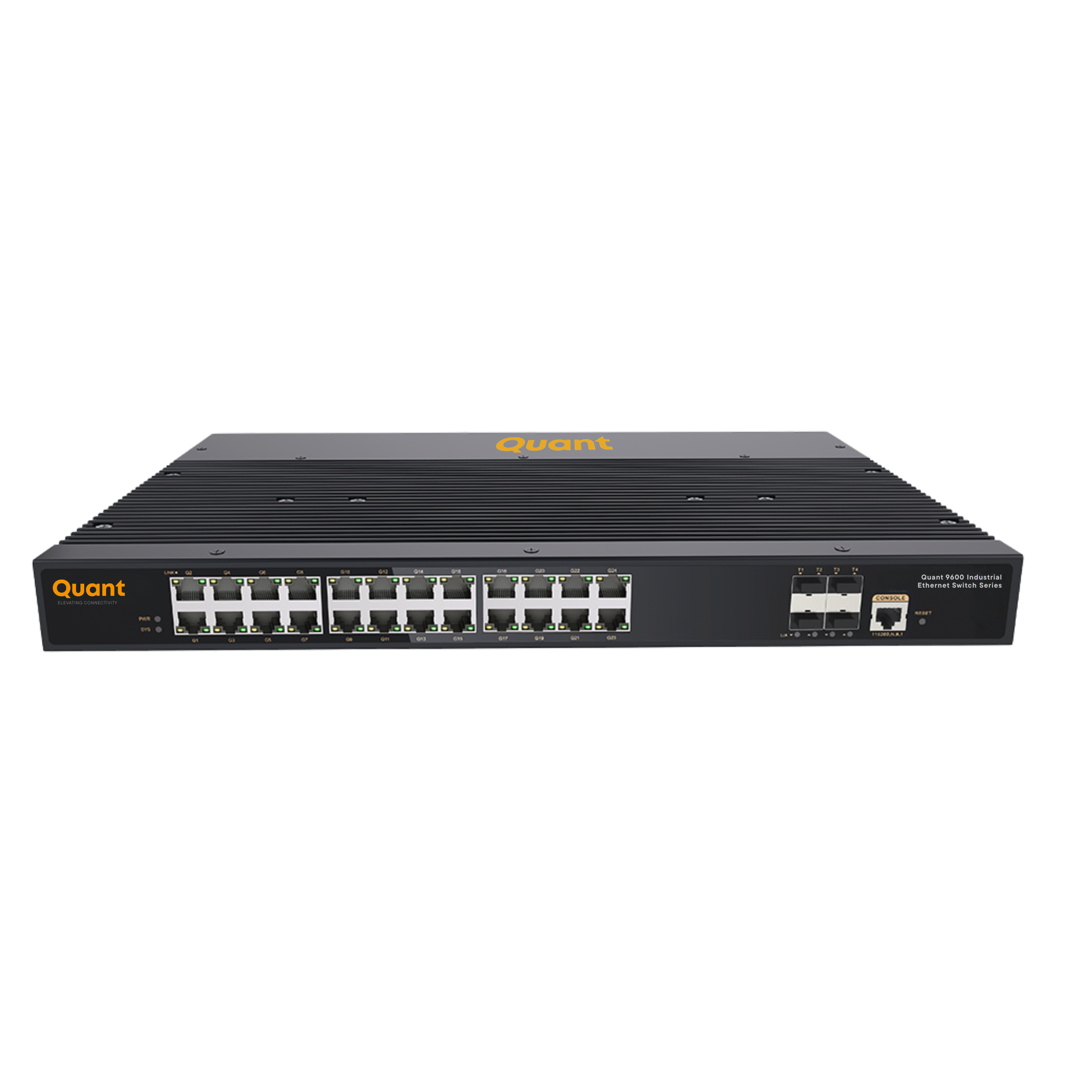

9600 Series – 24-Port Gigabit L3 Industrial Ethernet Switch with 4 × 1/10 G SFP+ uplinks – Q-IE-9600-24P-L3-4G-E-R

Technical Specification

  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • Buffer Memory: 12M
  • Jumbo Frame: 12K
  • Input Voltage: 45W
  • Uplink Ports: 4 × 1/10 G SFP+
  • Dimension: 440*298*44mm

Description

The Quant 9600 Series are high-performance Layer 3 managed industrial Ethernet switches engineered for reliable connectivity in harsh environments. They provide Gigabit access and 10G uplinks, featuring 24/48 RJ45 ports and four 1/10G SFP+ uplinks with a 216 Gbps switching capacity and non-blocking architecture. Powered by a 800MHz/dual-core 1 GHz CPU, the series supports IPv4/IPv6 routing (RIP, OSPF, BGP) and redundancy protocols (STP/RSTP/MSTP, ERPS) for rapid recovery under 20 ms. Built for endurance, it includes a fanless IP40-rated galvanized steel enclosure, –40°C to +75°C operating range, 6 kV surge protection, and dual AC+DC power inputs. Advanced security features include 802.1X authentication, ACLs, DoS protection, and RADIUS/AAA integration, with multiple management options via Web GUI, CLI, SNMP, HTTPS, and Quant NMS/LLDP tools. Quant 9600 Series delivers carrier-grade reliability, intelligent routing, and industrial-grade resilience for mission-critical networks.

Product Advantage and Applications

  • High-Performance Hardware – 24 or 48 Gigabit RJ45 ports + 4 × 1/10 G SFP+ uplinks; non
    blocking switching fabric (128/216 Gbps).
  • Layer 3 Routing – IPv4/IPv6 dual-stack support with RIP, OSPF, BGP, VRRP (up to 255 groups).
  • Industrial Reliability – Operating range –40 °C to +75 °C; IP40 protection; 6 kV surge
    protection; fanless design.
  • Redundant Power Inputs – Dual AC (100–240 V) and DC (12–48 V) inputs with automatic
    failover.
  • Comprehensive Security – 802.1X, MAC/IP binding, DHCP Snooping, ARP Inspection, DoS
    prevention.
  • Advanced QoS and Multicast – 802.1p/DSCP prioritization, WRR/SP scheduling, IGMP/MLD
    snooping for HD video and VoIP.
  • Resilient Topology – STP/RSTP/MSTP and ERPS (G.8032) for sub-20 ms failover redundancy.
  • Smart Management – Web, CLI, SNMP v1/v2/v3, HTTPS/SSH, LLDP discovery, Quant NMS
    integration.
ENQUIRE NOW
File Name Size Download
Quant-9600-Industrial-Ethernet-Switch-Series-Q-IE-9600-24P-L3-4G-E-R-Q-IE-9600-48P-L3-4G-E-R-1.pdf 1.43 MB Download
