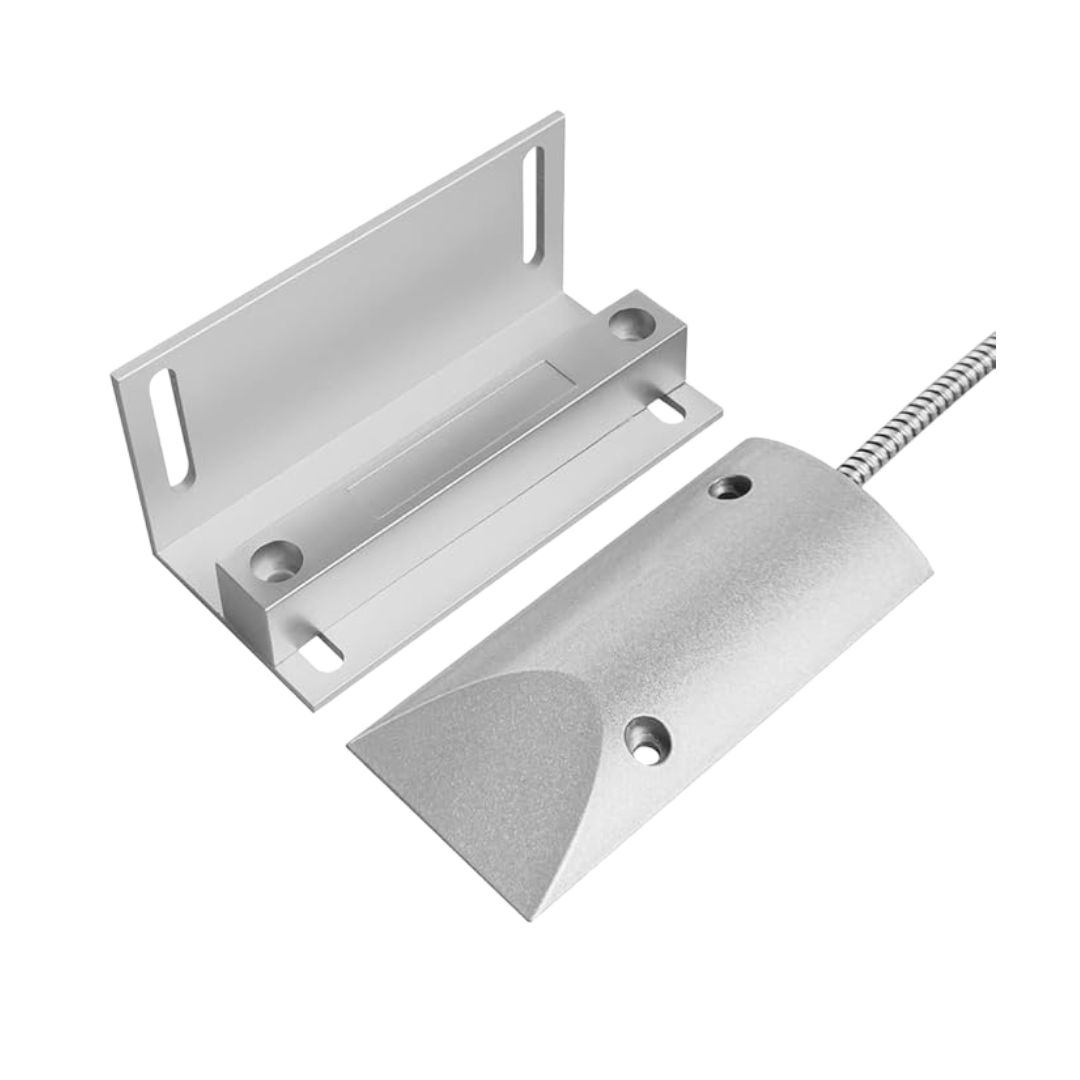

Door Contact for Foldable Door – Q-61L

Technical Specification

Operating Distance: ≥50mm
Voltage/Current: 100V DC/AC, 0.5A
Contact Load: 10W
Temperature Range: -20°C to 80°C
Switch Life: >100,000 operations
Material: Zinc alloy with 550mm wired connection (380mm armored hose)
Switching Options: NC/NO configurations available

Description

The Q-61L Door Magnetic Switch is an intrusion detection device designed for anti-theft systems. It consists of a reed tube switch and a magnet, which work together to detect the status of doors or windows. When the door or window is securely closed, the magnetic field maintains the switch contact in a conductive state. However, if the door or window is forcibly opened, the magnetic field is disrupted, breaking the circuit and triggering an alarm. This ensures effective security for both residential and commercial applications.

Product Advantage and Applications

•Reliable Detection: Equipped with a reed tube switch and magnet for precise status monitoring of doors and windows.
•Extended Operating Distance:
Detects movement effectively with an operating distance of ≥50mm, ensuring reliable performance.
•Durable Construction:
Built with a zinc alloy case for long-lasting durability and resistance to external damage.
