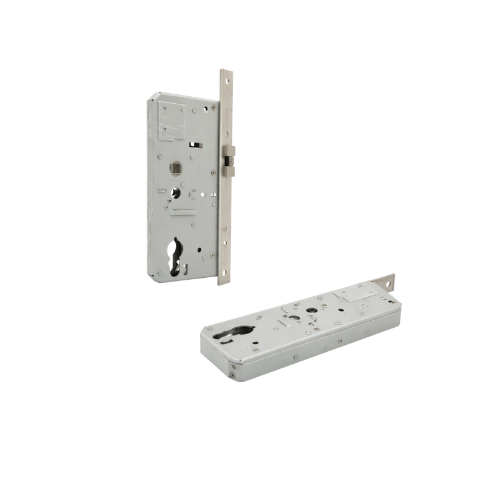

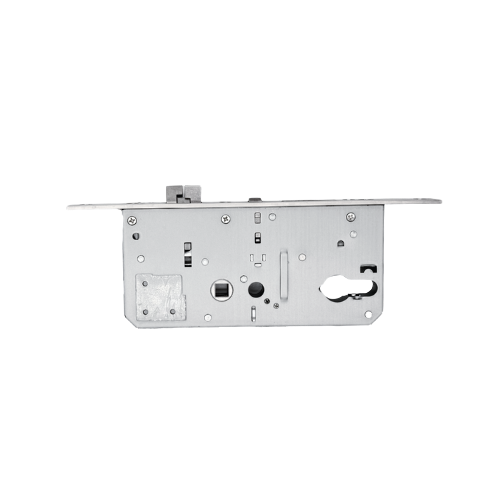

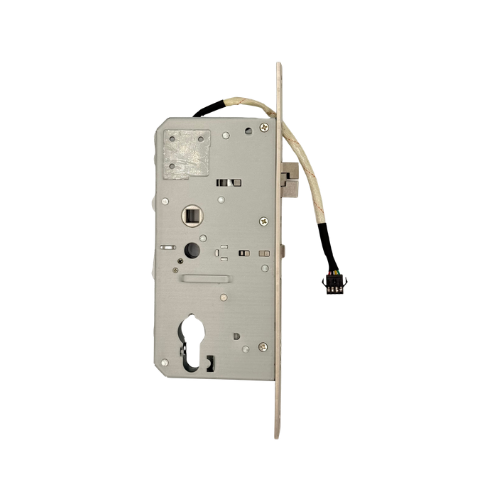

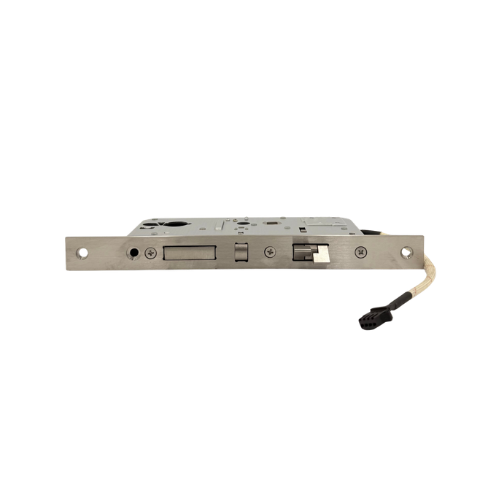

Q-EML5572
Electric Mortise Door Lock

Technical Specification

• Product Type: Electric mortise door lock
• Panel Dimension: 22 × 230mm
• Backset: 55mm
• Locking Distance: 72mm
• Lock Signal / Handle Output: Yes

Description

The Q-EML5572 is advanced Electronic Locking System is designed for reliable and secure access control, suitable for various door types including wooden, metal, and fire doors. With flexible voltage options and robust performance, this system is ideal for both residential and commercial applications.

Product Advantage and Applications

• Working Voltage: Available in both DC 12V and DC 24V options to accommodate different installation requirements.
• Working Current: Efficient operation with current ratings of 240mA or 120mA, ensuring minimal energy consumption.
• Signal Outputs: Lock signal output ensures secure locking with feedback; handle signal supports additional access control features.

ENQUIRE NOW
File Name Size Download
Q-EML5572-Data-Sheet.pdf 843.20 KB Download
