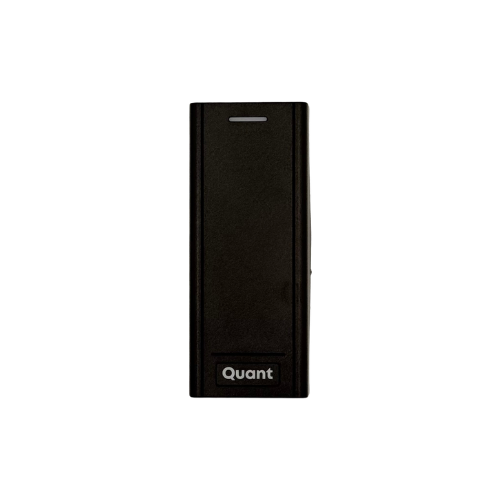

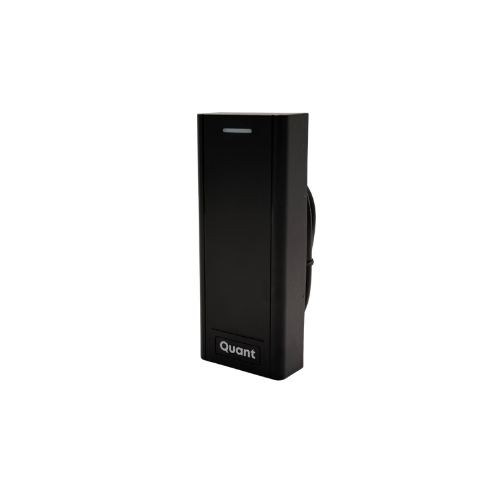

OSDP/Weigand Multi Technology Card Reader – Q-X6-RX

Technical Specification

Model Q-X6-RX
Protocols Supported: OSDP (Open Supervised Device Protocol) and Wiegand (Optional for backward compatibility)
Ingress Protection: IP66 (Dust-tight, water-resistant)
Card Compatibility: 125kHz (HID, EM) and 13.56MHz (NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, CPU cards

Description

The Q-X6-RX is a robust and versatile OSDP reader designed to provide secure and efficient access control. With compatibility for both OSDP and Wiegand controllers (optional), this device ensures seamless integration into a variety of access control systems. The Q-X6-RX supports multiple card technologies, including 125kHz HID, EM, and 13.56MHz Mifare, ensuring flexibility in card use. Built with an IP66 waterproof rating, the reader is well-suited for both indoor and outdoor applications, making it reliable even in harsh environments. Its modern design and advanced functionality make it ideal for organizations seeking to enhance their security infrastructure.

Product Advantage and Applications

Dual Compatibility: The Q-X6-RX supports both OSDP and Wiegand protocols, making
it compatible with a wide range of access control systems. This flexibility ensures that it
can easily fit into both modern and legacy setups, reducing installation costs and
complexity.
Durability with IP66 Rating: With its IP66 rating, the Q-X6-RX is built to withstand
challenging environments, from dust-heavy industrial areas to outdoor installations
exposed to rain or high-pressure water. This enhances the longevity of the product,
reducing the need for frequent replacements or maintenance.
Enhanced Security with OSDP: The OSDP protocol offers higher security through
encrypted communication between the reader and the controller. This prevents tampering
or unauthorized access, ensuring that the system is secure against modern threats.
