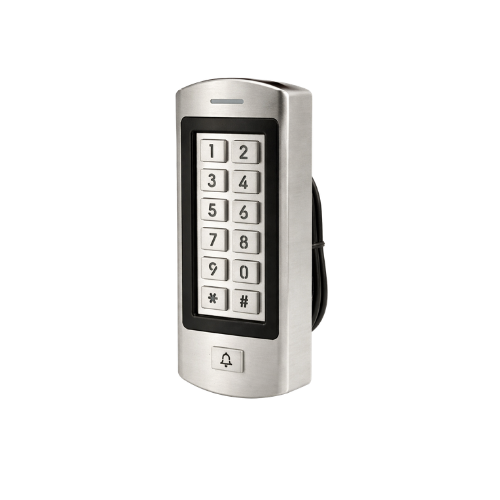

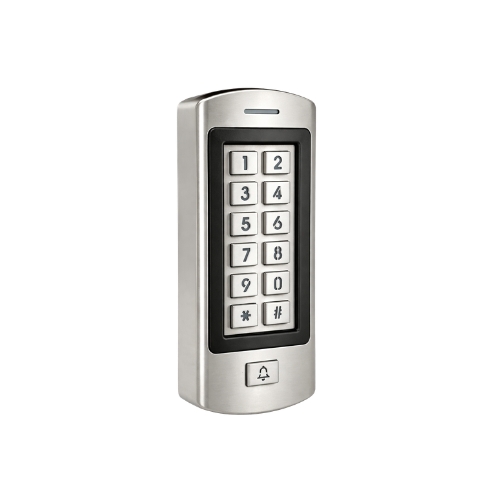

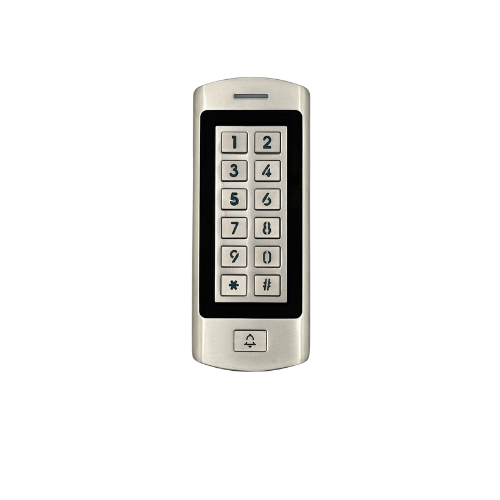

Standalone Metal Keypad Proximity Reader – Q-208C-EMW Outdoor Waterproof

Technical Specification

Operating Voltage: DC 12V / 2A
Card Type: ID 125KHz
Input/Output: Wiegand 26/34
Valid Card Capacity: 1,000 / 4,000
Password Capacity: 1,000
Dimension: 130x58x24mm
Locking Mechanism: Electric locking
Interface: Relay output or optional input

Description

The Q-208C-EMW is a rugged and waterproof access controller designed for outdoor use. Built with a durable metal casing, it is ideal for harsh environments, offering secure access control with multiple authentication options.

Product Advantage and Applications

•High Storage Capacity: Accommodates up to 2000 individual cards with 4-digit PINs,
making it suitable for a wide range of applications, from small businesses to larger
facilities that require extensive access management.
•Electrical Safety Features:
Built-in short-circuit protection helps safeguard the device
and connected systems from potential damage due to electrical malfunctions, enhancing
overall reliability and safety.
•Durability in Extreme Conditions:
Engineered to perform in harsh weather conditions,
including extreme temperatures and high humidity, ensuring continuous operation in all
climates.
