Q-IE-7200-4P-2S-RS<br><span>7200 Series - 6-Port Gigabit Managed Industrial PoE Switch with 4 × PoE ports, 2 × SFP uplinks, and dual DC input.</span>

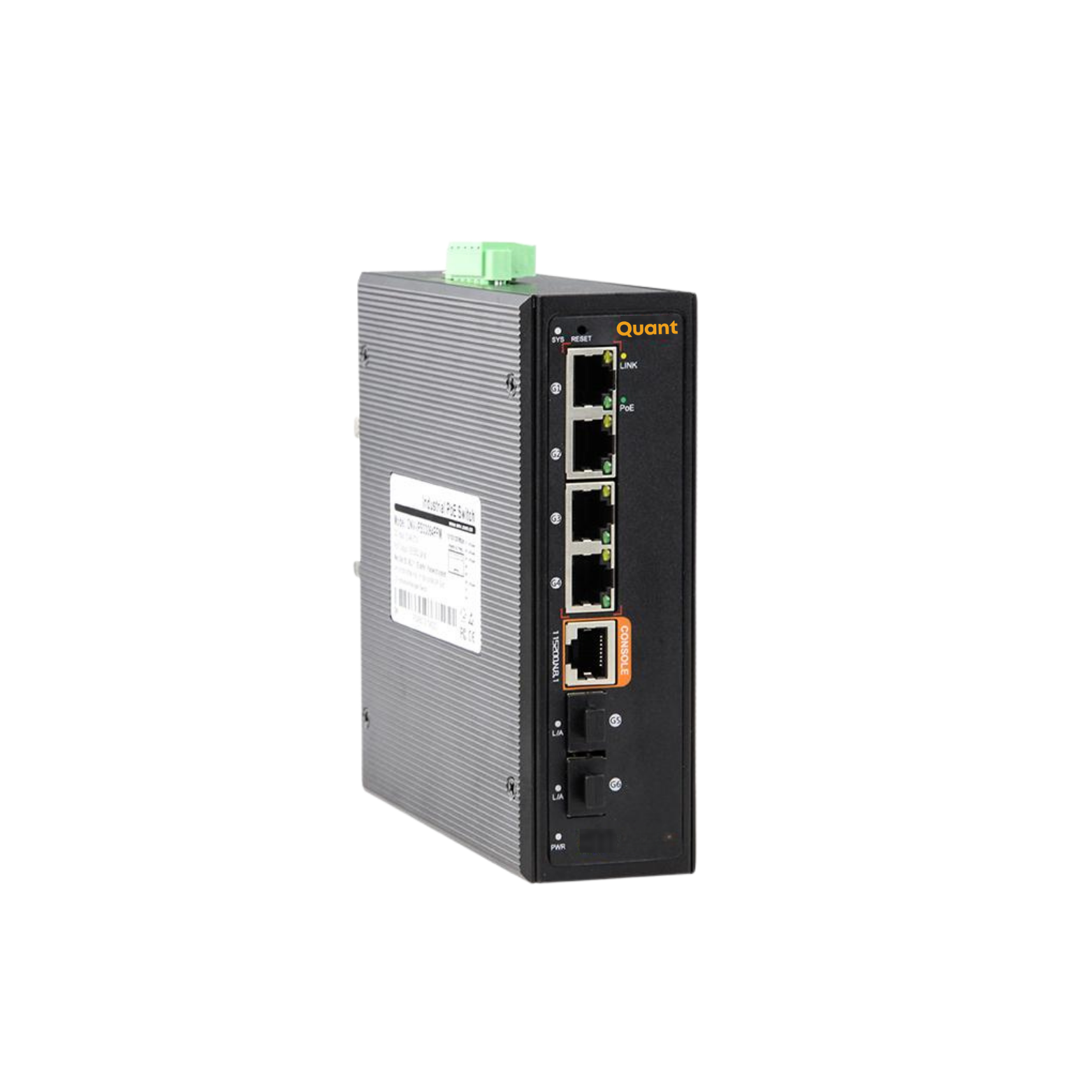

Q-IE-7200-4P-2S-RS
7200 Series – 6-Port Gigabit Managed Industrial PoE Switch with 4 × PoE ports, 2 × SFP uplinks, and dual DC input.

Technical Specification

  • 4 Gigabit PoE ports with two SFP uplinks
  • Dual 48–57 V DC redundant power input
  • L2+ managed switching with RS232 console port
  • IEEE 802.3af/at PoE supports up to 30 W
  • 36 Gbps switching capacity with 8.93 Mpps
  • IP40 housing supports -40 °C to +75 °C

Description

The Q-IE-7200-4P-2S-RS is a managed industrial PoE switch built for secure and stable industrial communication networks. It features 4 Gigabit PoE RJ45 ports, 2 × 100/1000M SFP uplinks, 1 × RS232 console port, dual DC redundant power input, and L2+ management functions for reliable deployment in demanding field environments.

Product Advantage and Applications

  • Rugged IP40 metal housing supports harsh industrial environments
  • Gigabit PoE ports power cameras, APs, phones, and sensors
  • Two SFP uplinks enable flexible fiber backbone connectivity
  • L2+ management improves security, control, and network stability
  • Ideal for surveillance, automation, utilities, and industrial communication
ENQUIRE NOW
File Name Size Download
7200-Switch-Series-Q-IE-7200-4P-2S-RS-Q-IE-7200-8P-2S-RS.pdf 1.84 MB Download
