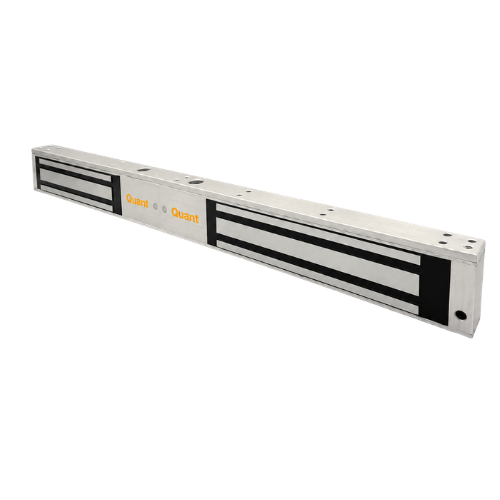

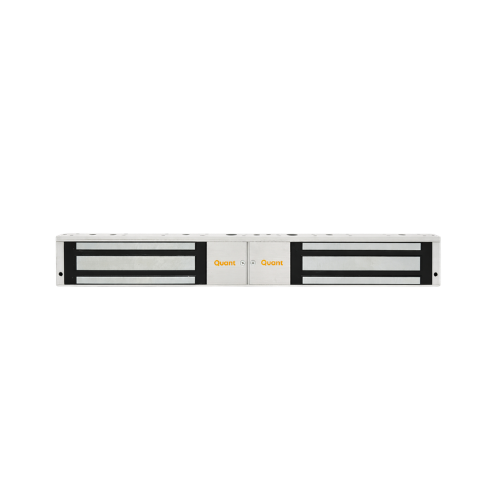

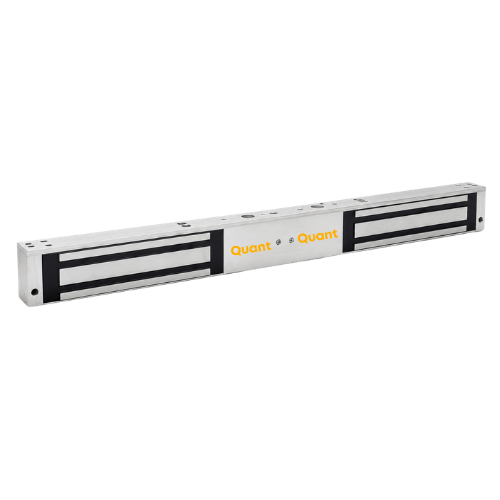

Electro Magnetic Locks 2 pin 280kg (600 lbs) – Q-Y280D (LED,2PIN)

Technical Specification

•Holding Force: 280 kg (600 lbs) per door, 560 kg total
•Lock Size: 500mm x 47mm x 25mm
•Working Voltage: 12V DC
•Working Current: 400mA at 12V DC, 200mA at 24V DC
•Fail-Safe Features: LED Indicator
•Application: Designed for dual door installations, suitable for commercial and industrial use
•Installation: Surface-mounted

Description

The Q-Y280D (LED, 2PIN) is a surface-mounted magnetic lock designed for dual door applications, providing a holding force of 280 kg (600 lbs) per door. The lock is equipped with an LED indicator for status monitoring and operates with a 2-pin connection. With a total holding force of 560 kg, this lock ensures secure and reliable access control for high-security environments.

Product Advantage and Applications

•Holding Force: Capable of securing doors with a holding force of up to 600 pounds
(280kg) per lock, this magnetic lock delivers reliable security for areas requiring
strong access control.
•Power Supply: Operates on 12V DC, ensuring straightforward integration with
existing security systems and reliable operation in various environments.
•LED Feedback Signal: Equipped with an LED feedback signal, the lock provides a
clear visual indicator of the lock status, enhancing security monitoring.
