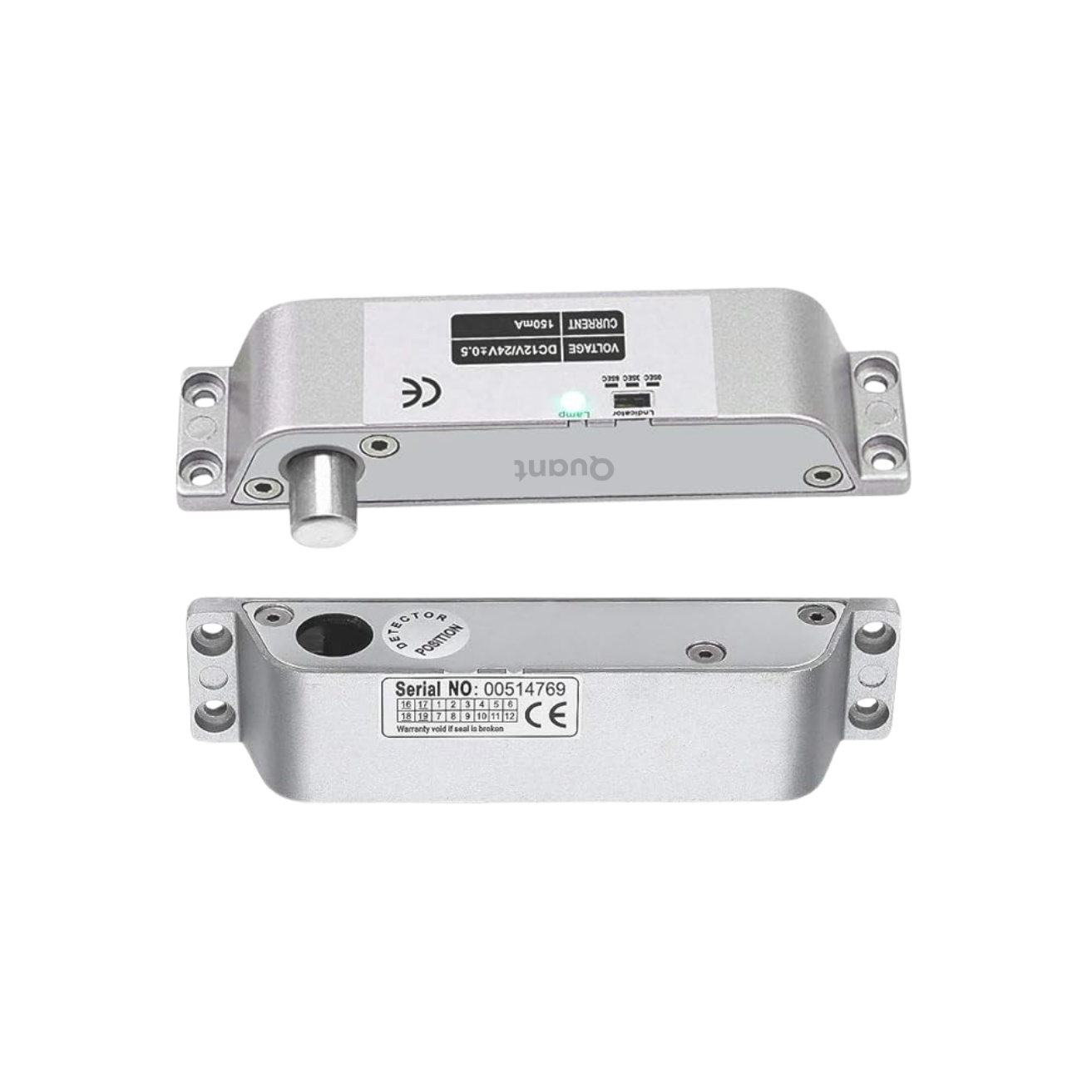

Mortise Concealed Electric Drop bolt Lock 5-Wire – Q-Y300

Technical Specification

Lock Size: 149mm x 34mm x 27mm
Working Voltage: 12V DC
Current: Standby: 1A
Working: 150mA
Function: Time-delay (0-3-6 seconds)
Connection: 5-wire

Description

The Q-Y300 is a mortise concealed electric drop bolt lock designed for secure door locking in access control systems. This lock is built for discreet installation within the door frame, providing a high level of security without compromising aesthetics. It features a 5-wire connection and offers a time delay function, making it suitable for a variety of security applications.

Product Advantage and Applications

Concealed Installation: Designed for mortise installation, providing a secure and discreet locking solution that integrates seamlessly with the door frame.
Time-Delay Function: Offers adjustable time-delay options (0-3-6 seconds), enhancing security by allowing controlled access.
Low Power Consumption: Operates efficiently with a low working current of 150mA, ensuring minimal power usage while in operation.
