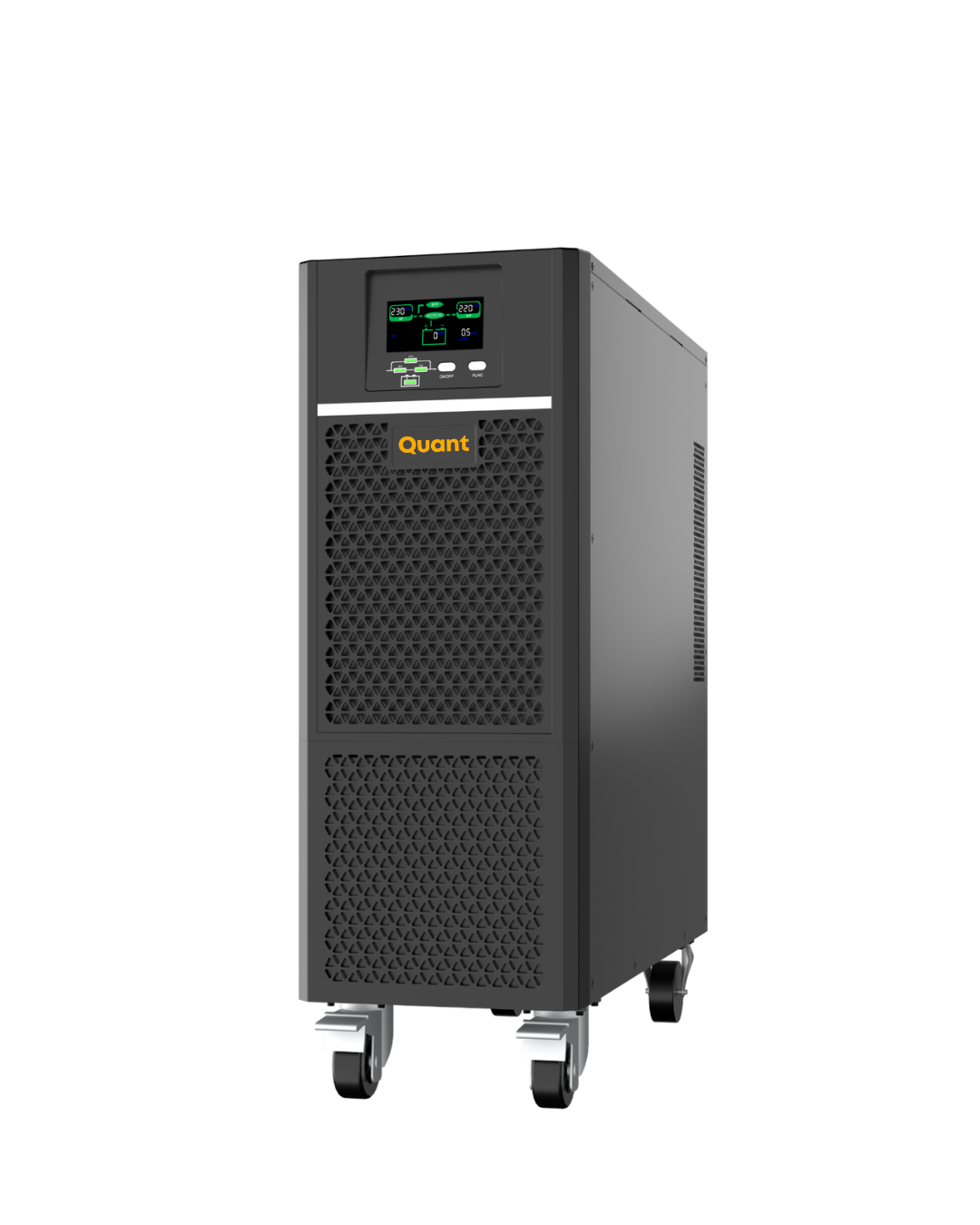

PL-TS010-X<br><span>Proline Tower Online UPS (6–20kVA Single-Phase)</span>

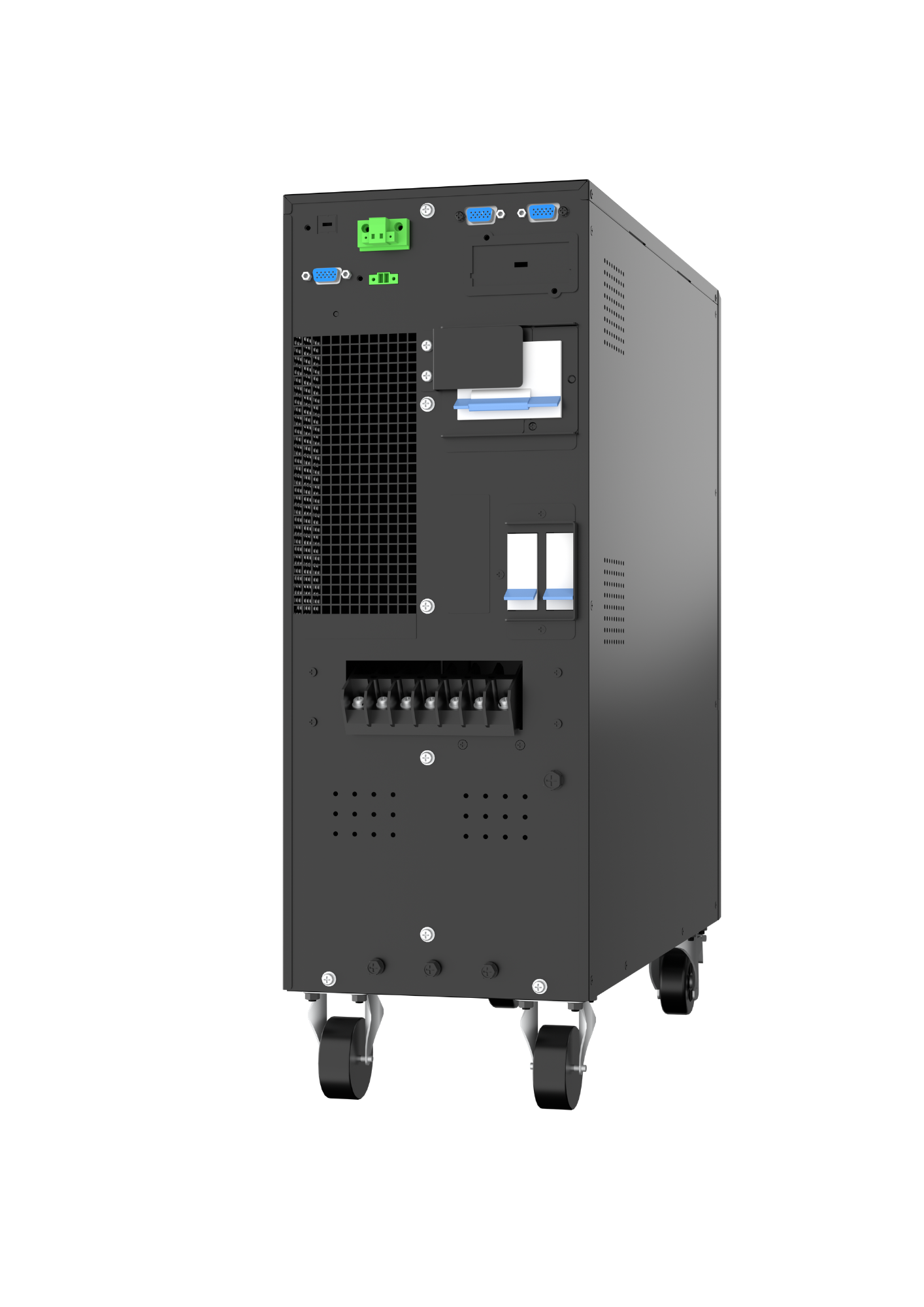

PL-TS010-X<br><span>Proline Tower Online UPS (6–20kVA Single-Phase)</span> - Image 2

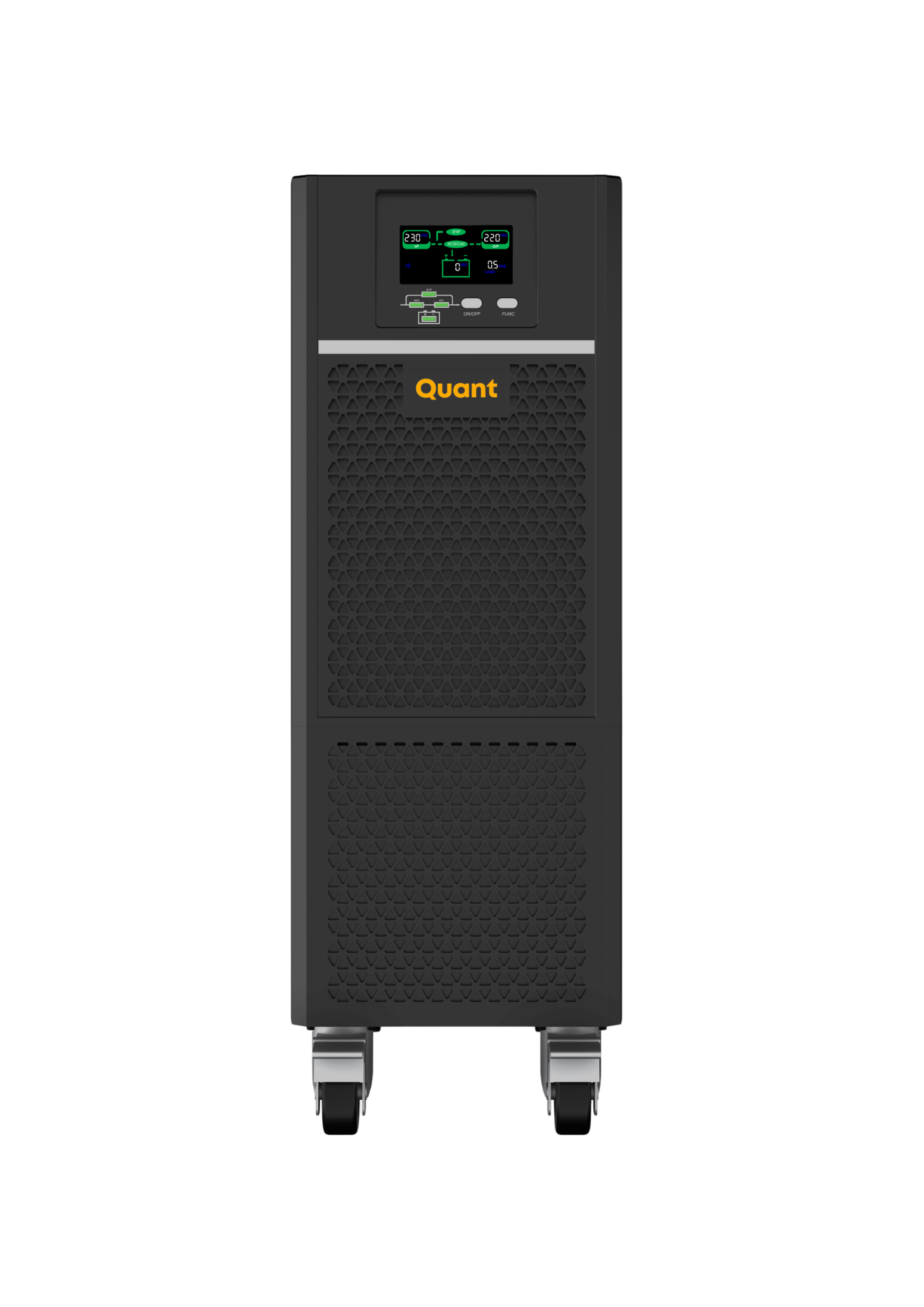

PL-TS010-X<br><span>Proline Tower Online UPS (6–20kVA Single-Phase)</span> - Image 3

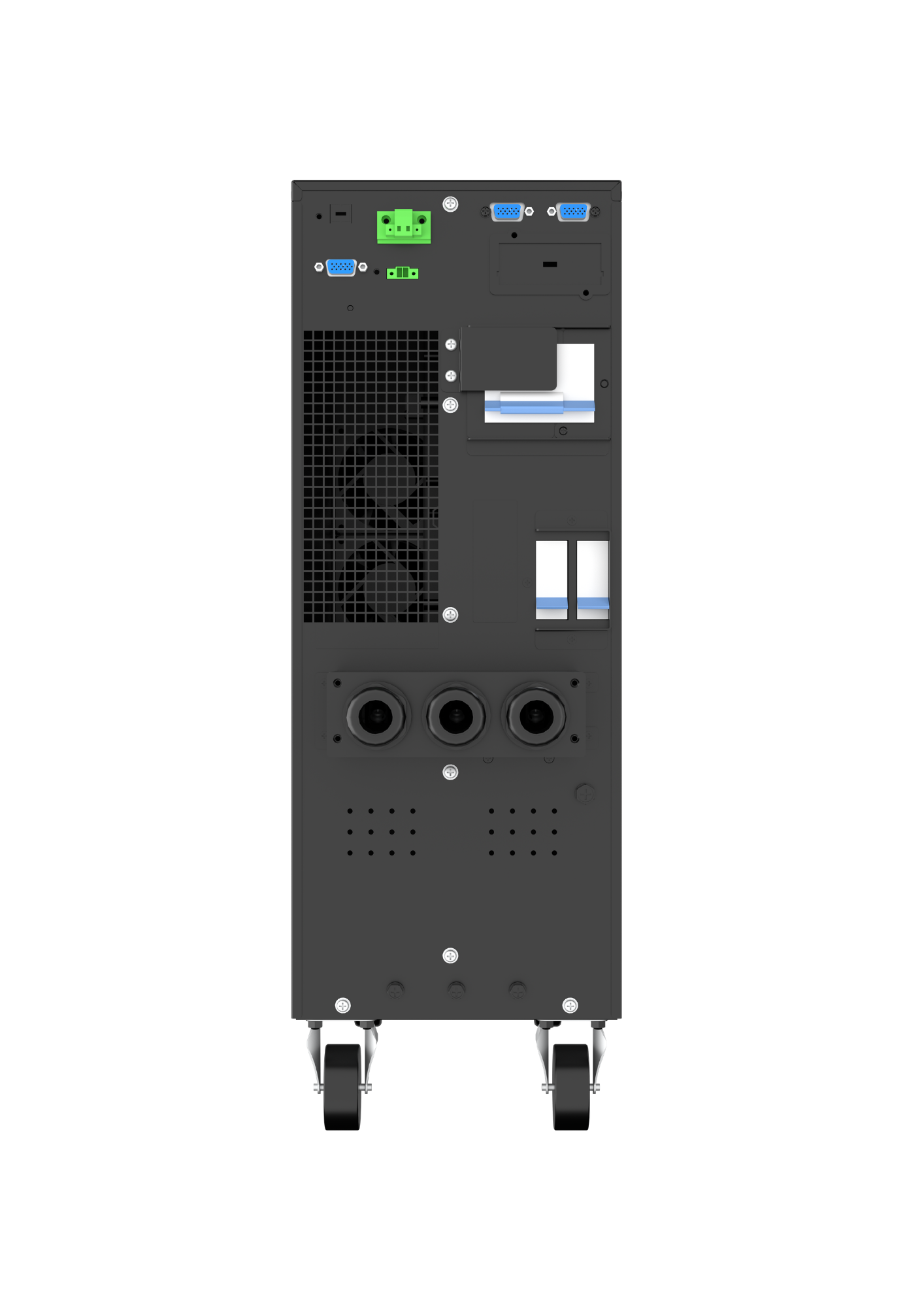

PL-TS010-X<br><span>Proline Tower Online UPS (6–20kVA Single-Phase)</span> - Image 4

PL-TS010-X
Proline Tower Online UPS (6–20kVA Single-Phase)

Technical Specification

  • Technology: Online Double Conversion
  • Phase: 1P/1P or 3P/1P
  • Rated Power: 10kVA / 10kW
  • Input Voltage Range: 190–499VAC
  • Frequency Range: 40–70Hz
  • Output Voltage: 220/230/240VAC
  • Output PF: 1.0
  • Transfer Time: 0ms
  • Efficiency: Up to 95% (98% ECO Mode)
  • THDu: ≤1% (Linear Load)
  • Load Regulation: ±1%
  • Noise: <55dB

Description

The QUANT PROLINE Tower Online UPS series is a premium three-phase input / single-phase output power protection solution designed for critical applications that require continuous, clean, and stable power. Using advanced online double-conversion technology, the system ensures zero-transfer time, providing uninterrupted power for sensitive equipment in Government, Banking, IT, Education, Medical, Transportation, and Industrial environment

Product Advantage and Applications

  • True Online Double-Conversion Technology
    Ensures pure, stable, and isolated output with zero transfer time
  • High Output Power Factor = 1.0
    Supports full-rated kW load with maximum efficiency and compatibility with modern IT equipment
  • Wide Input Voltage Range
    Stable operation even in unstable electrical environments (190-499VAC L-L)
ENQUIRE NOW
File Name Size Download
PROLINE-TOWER-ONLINE-UPS-PL-TS010-X-Data-Sheet.pdf 959.04 KB Download
6-20kVA-Online-Rack-UPS-User-Manual-5.pdf 4.32 MB Download
