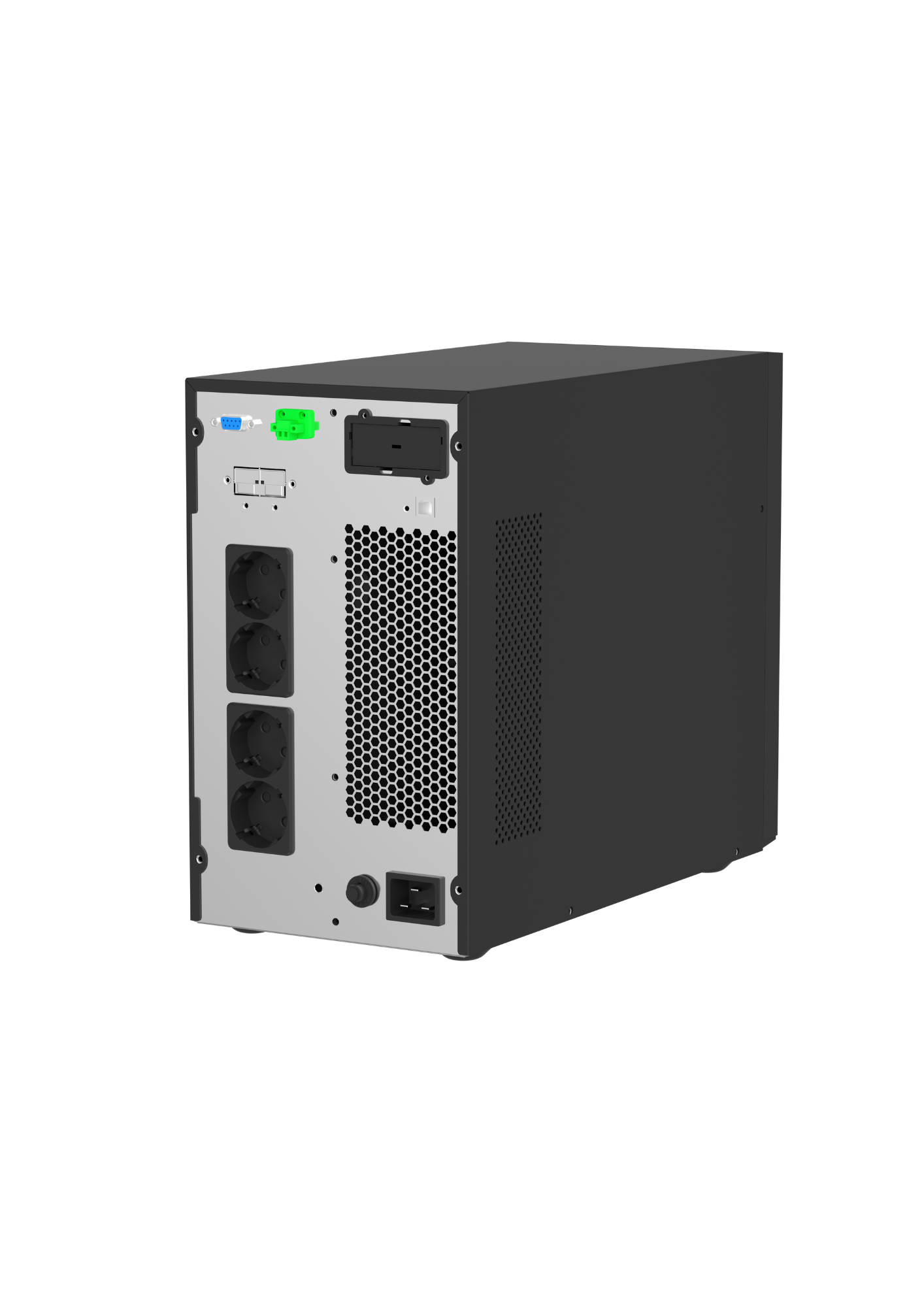

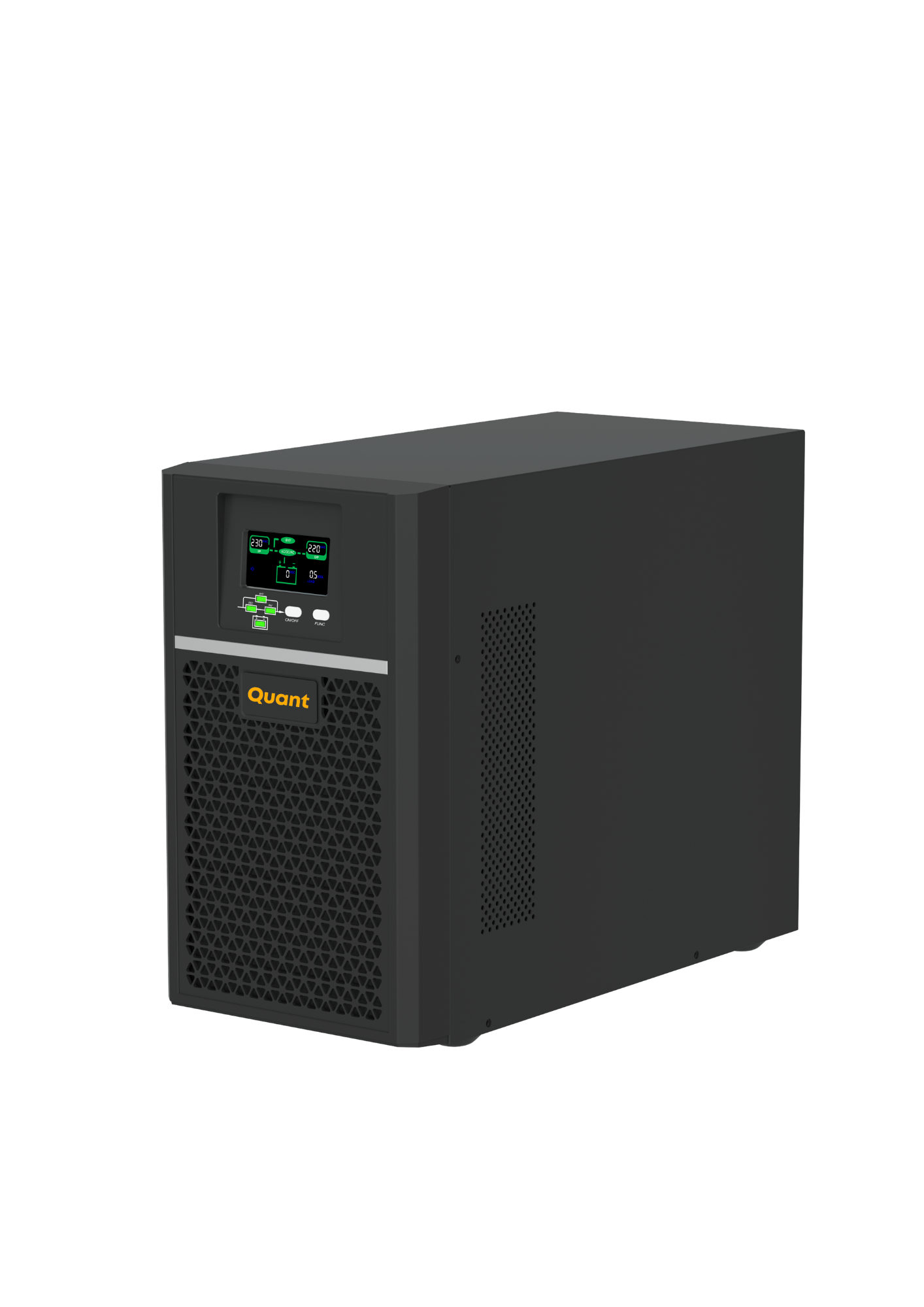

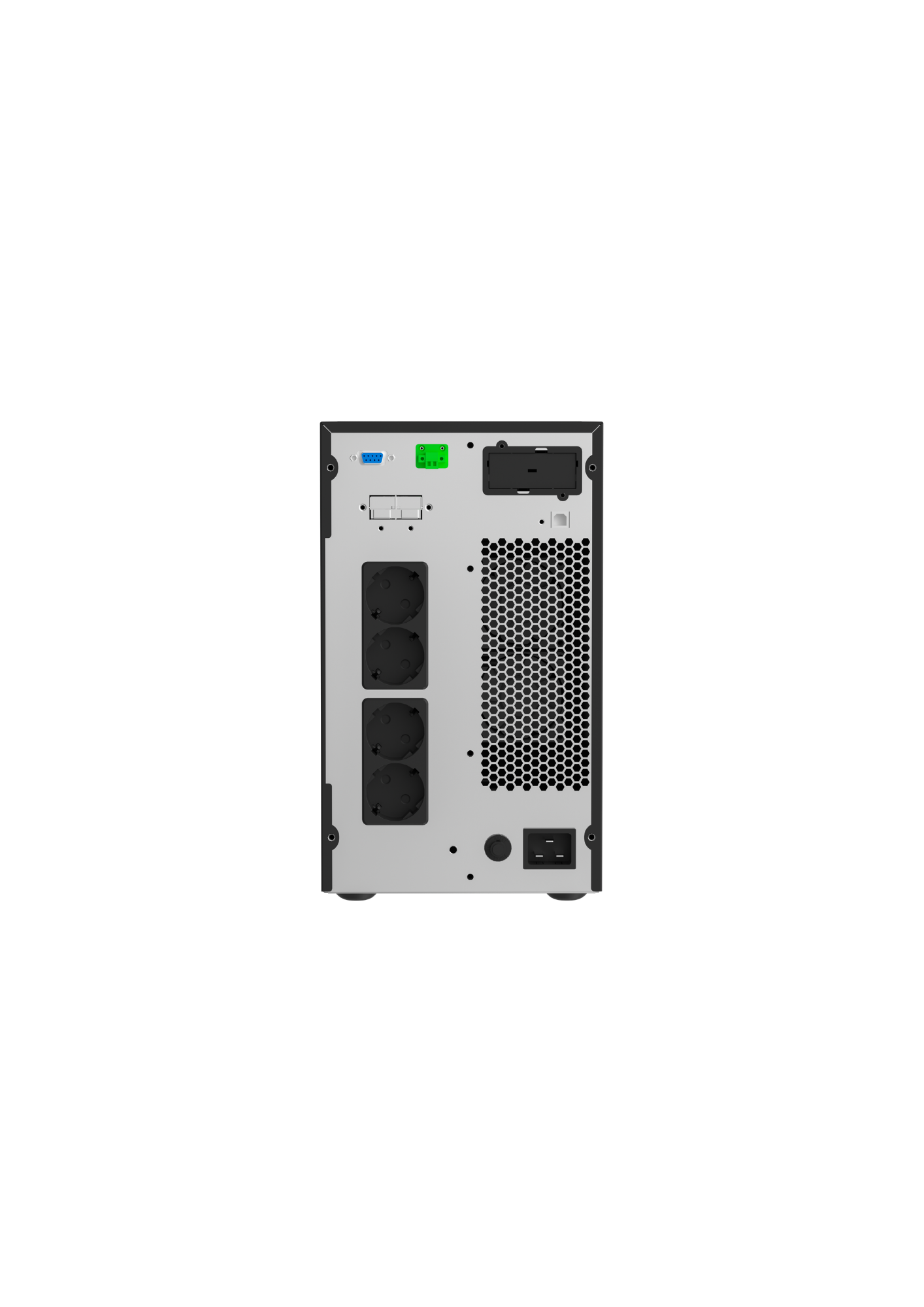

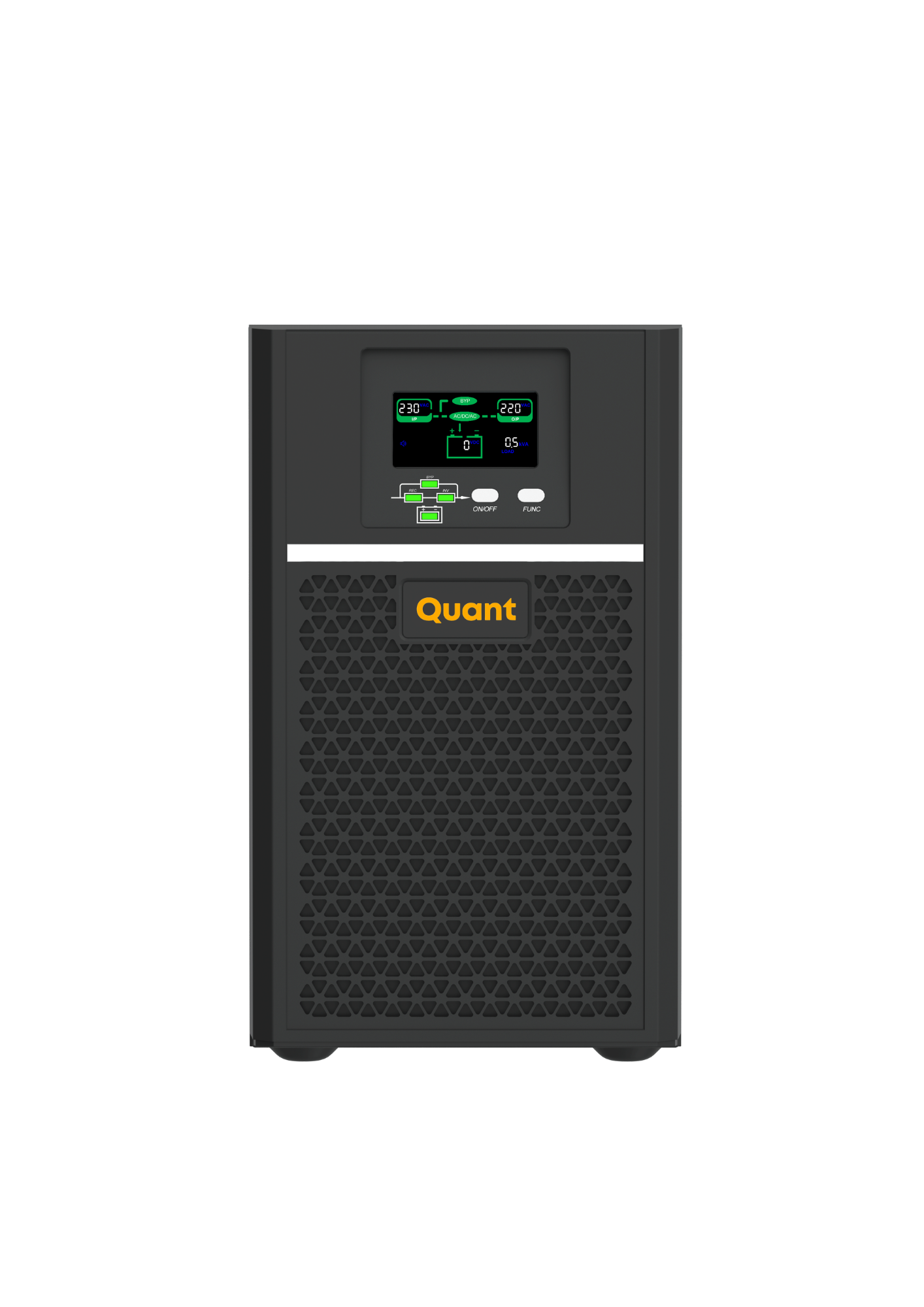

QUANT PROLINE TOWER ONLINE UPS (6–20kVA Single-Phase) – PL-T006-X, PL-T010-X, PL-T015-X, PL-T020-X

Technical Specification

  • Power Range: 6kVA to 20kVA (6kW–20kW)

  • Wide Input Voltage: 110–288VAC

  • High Input Power Factor: ≥0.99

  • Unity Output Power Factor: 1

  • Wide Frequency Input: 40–70Hz

  • Auto Output Frequency: 50/60Hz self-adapting

  • Tight Voltage Regulation: ±1%

  • Ultra-Low Harmonic Distortion: ≤1% (linear), ≤5% (non-linear)

  • Zero Transfer Time: Main to Battery & INV to BYP (0ms)

  • High Efficiency: Up to 95% (Normal), 98% (ECO Mode)

  • Low Noise Operation: 58–62dB

  • External Battery Support: 16–24 pcs, adjustable

  • Adjustable Charging Current: Up to 5A

  • Default Battery Voltage: 192VDC, Settable

Description

The QUANT PROLINE Tower Online UPS series is a premium single-phase power protection solution designed for critical applications that require continuous, clean, and stable power. Using advanced online double-conversion technology, the system ensures zero-transfer time, providing uninterrupted power for sensitive equipment in Government, Banking, IT, Education, Medical, Transportation, and Industrial environments.

Product Advantage and Applications

  • True Online Double-Conversion Technology
    Ensures pure, stable, and isolated output with zero transfer time.
  • High Output Power Factor = 1.0
    Supports full-rated kW load with maximum efficiency and compatibility with modern IT equipment.
  • Wide Input Voltage Range
    Ensures stable operation even in unstable electrical environments.
ENQUIRE NOW
File Name Size Download
QUANT-PROLINE-TOWER-ONLINE-UPS-PL-T006-X-PL-T010-X-PL-T015-X-PL-T020-X.pdf 987.76 KB Download
