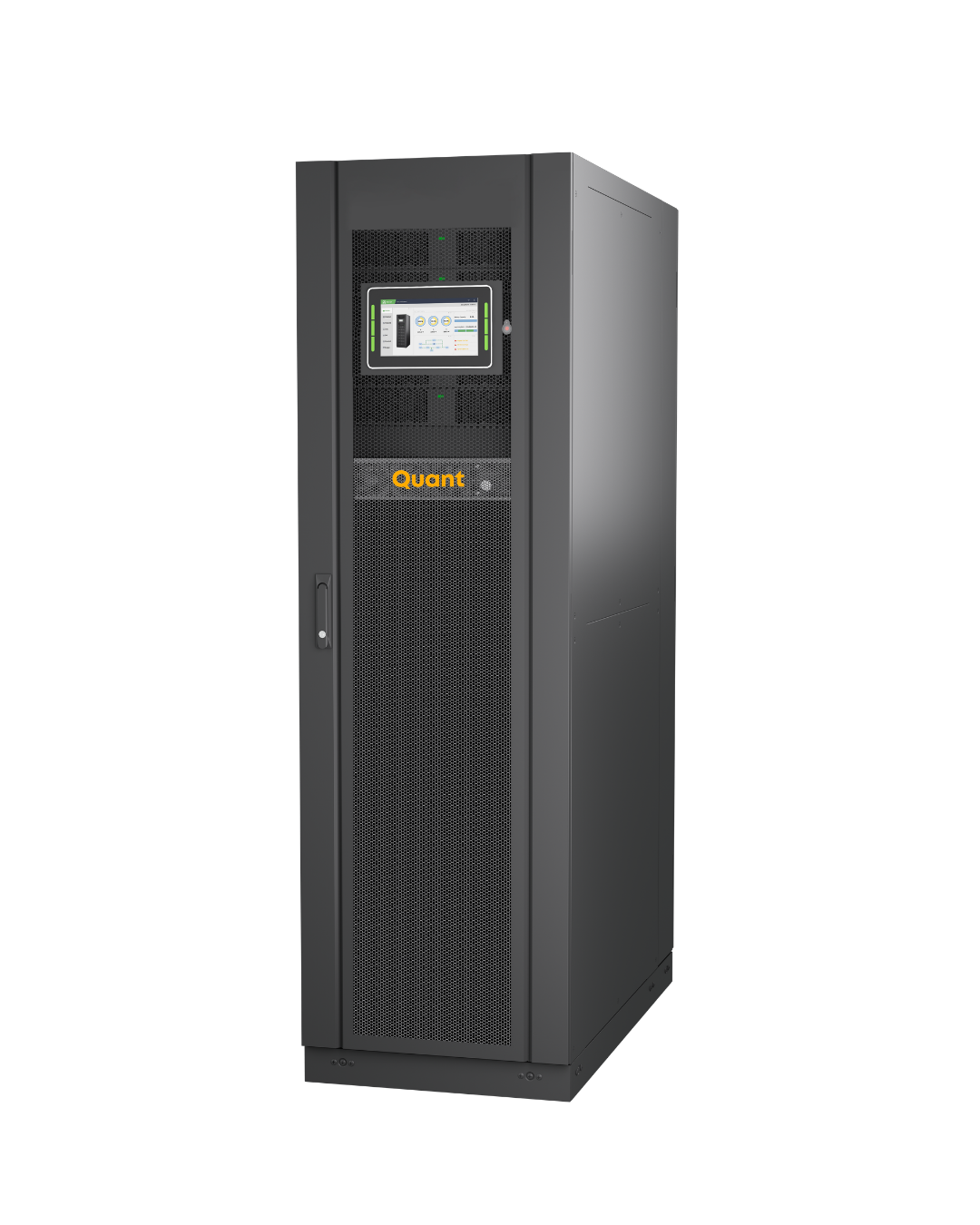

TCM90B/30-240P
Titan Core Internal 7/9AH Modular Battery Strips (30–150KVA)

Technical Specification

  • Rated Power: 90kVA / 90kW
  • Input Configuration: 3P5W (3P+N+PE)
  • Input Voltage: 380/400/415VAC (L-L); 220/230/240VAC (L-N)
  • Input Performance: PF >0.99, THDi <3%, frequency range 40–70Hz
  • Input Voltage Range: 304–478VAC full load; 304–228VAC derating from 100% to 50%
  • Battery System: ±240VDC, internal 12VDC 7/9Ah modular battery strips, 240 pcs
  • Charging Performance: 20% × Pout, charging accuracy ±1%
  • Output Performance: PF 1, voltage accuracy ±1.0%, THDu <1% linear / <5% non-linear
  • Efficiency / Display / Protection: Up to 96.5%, LED + 10-inch touch LCD, IP20
  • Dimensions / Weight / Warranty: Cabinet 600 × 1000 × 2000 mm, power module 440 × 678 × 86 mm; cabinet 260 kg, power module 23 kg; Malaysia, 2 years

Description

The TITAN CORE MODULAR Series is a high-density three-phase modular online UPS designed for critical applications that require scalable power and simplified service. The TCM90B/30-240P delivers 90kVA / 90kW capacity with internal 12V 7/9Ah modular battery strips, combining hot-swappable modular architecture, compact runtime integration, and reliable double-conversion protection.

Product Advantage and Applications

  • True online double-conversion UPS with internal modular battery-strip design for clean power, compact footprint, and simplified deployment.
  • 90kVA modular platform supports reliable runtime, hot-swappable architecture, and integrated protection including mains input/output, maintenance bypass, and battery breaker.
  • Suitable for data centers, server rooms, enterprise IT, banking, healthcare, industrial automation, security command centers, telecom, and government facilities.
