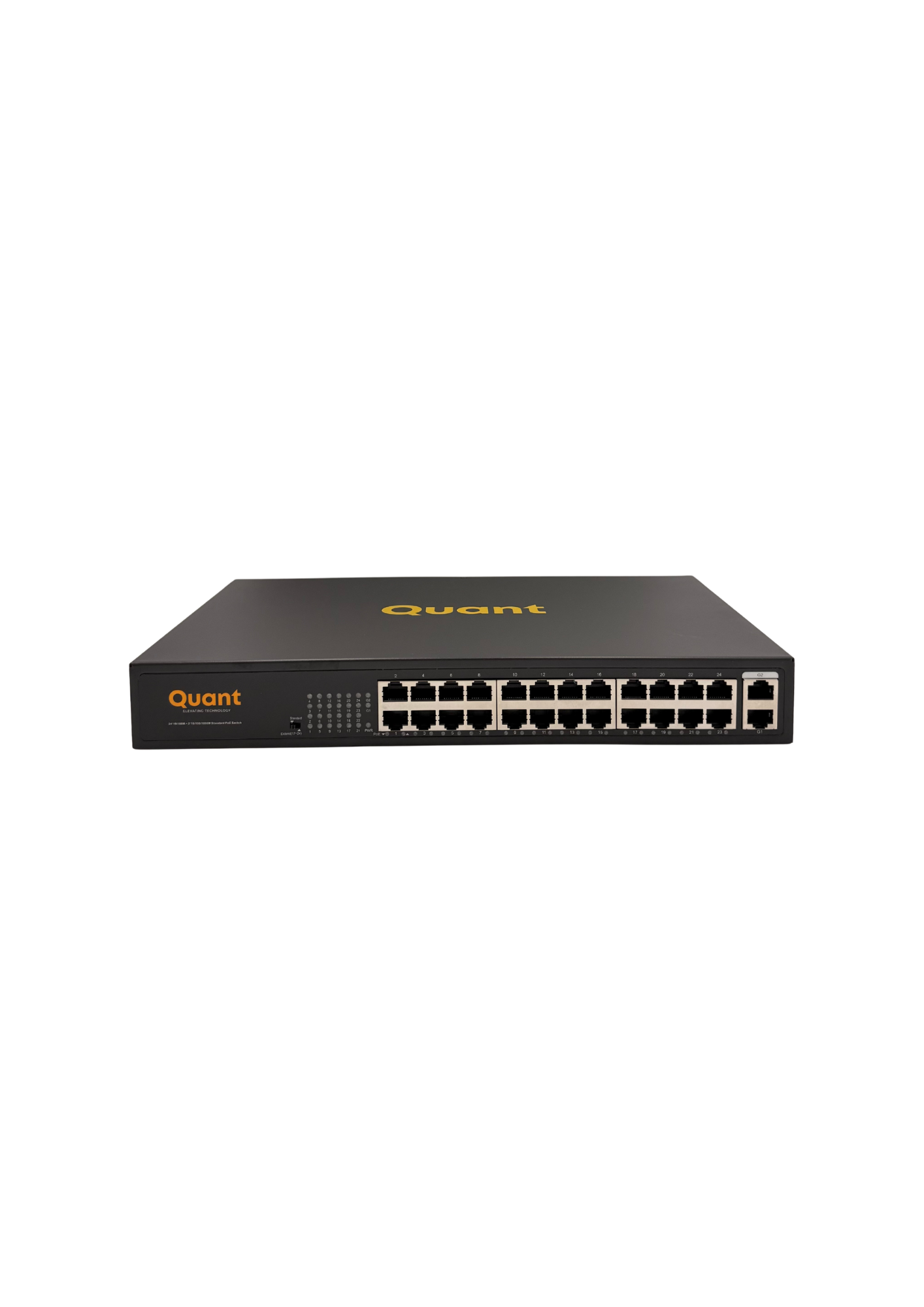

208 Series – 10M/250 meters transmission gigabit uplink 26-port PoE switch – Q-UM-208-24PLD-2EU

Technical Specification

  • Switching Capacity: 14.8 Gbps
  • Forwarding Rate: 6.55 Mpps
  • Buffer Memory: 4M
  • Jumbo Frame: 10K
  • Input Voltage: 250W
  • Uplink Ports: 2 × 10/100/1000M RJ45

Description

The Quant PoE Switch Series 208 delivers reliable Fast Ethernet access with Gigabit uplinks, intelligent PoE+ power, and rugged build quality for SMB networks, IP surveillance, wireless access, and commercial installations. With 16 or 24 PoE+ downlink ports and 2 Gigabit RJ45 uplink ports, these unmanaged switches provide IEEE 802.3af/at power, extended transmission up to 250 m, and plug-and-play deployment. They are ideal for powering IP cameras, wireless access points, VoIP phones, and IoT devices, while supporting non-blocking forwarding and surge protection for stable, long-term operation

Product Advantage and Applications

  • High-Density PoE+ Access
  • 16 or 24 × 10/100 Mbps PoE+ ports
  • Up to 30 W per port, total PoE power budget up to 250 W
  • IEEE 802.3af/at compliant
  • Flexible Uplink Options
  • 2 × 10/100/1000 Mbps RJ45 uplink ports for backbone of network connectivity
  • Extended PoE Transmission
  • Up to 250 m on selected ports for remote IP devices
  • Industrial Protection
  • 4 kV surge protection on all ports
  • Rugged galvanized steel enclosure
  • Plug-and-Play
  • Unmanaged design with auto-negotiation and auto-MDI/MDIX
  • No configuration required
  • Low power consumption and reliable thermal performance with active fan cooling
ENQUIRE NOW
File Name Size Download
208-Series-PoE-switch-Q-UM-208-16PLD-2EU-Q-UM-208-24PLD-2EU.pdf 1.11 MB Download
