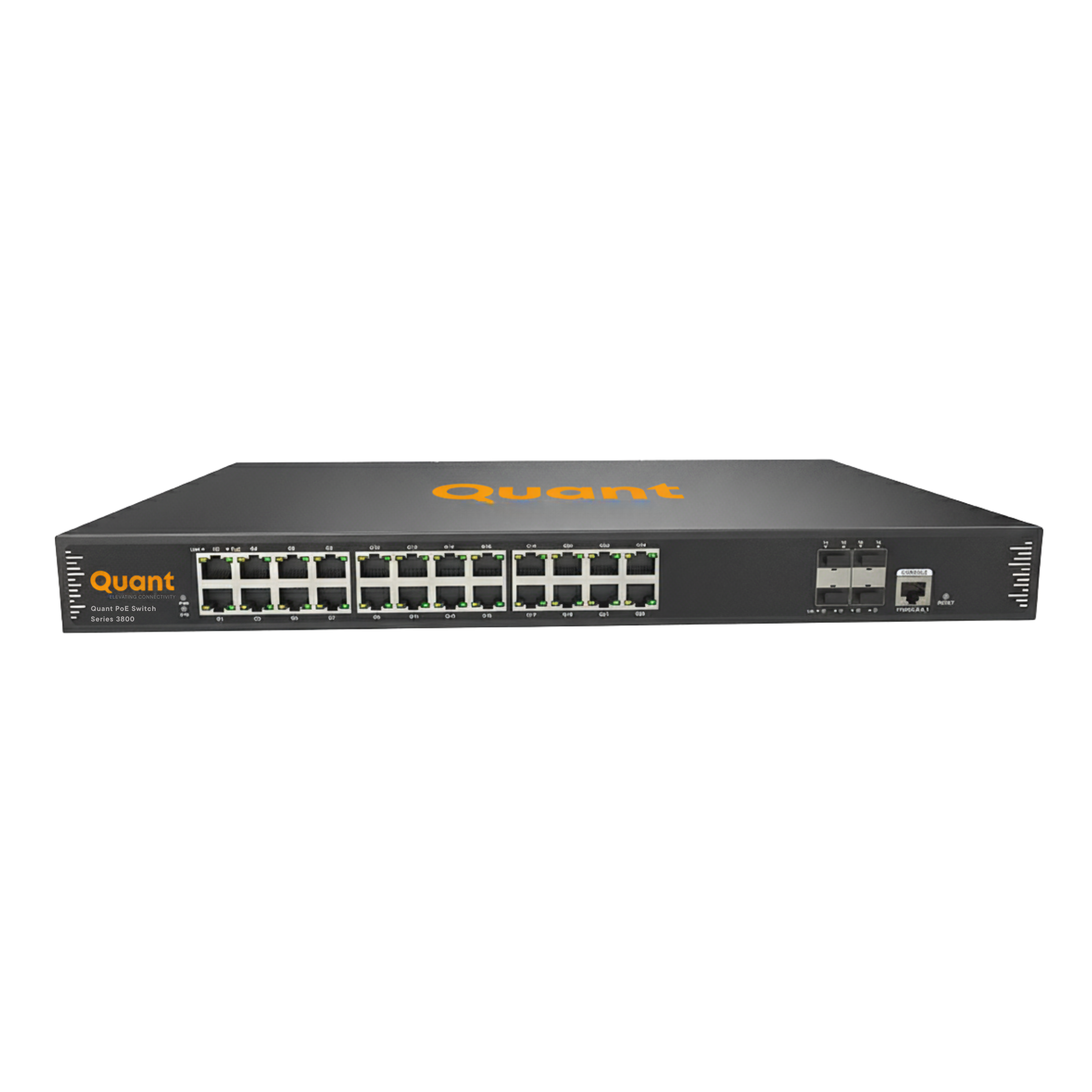

3800 – 24-Port Gigabit PoE+ L2 Managed Switch with 4 × 1/10G SFP+ Uplinks – Q-M-3800-24P-L2-4S-V
The Quant 3800 PoE Switch Series is a next-generation L2+ managed Gigabit PoE+ switch with 10
G SFP+ uplinks, designed for high-performance IP surveillance networks, enterprise backbones, and
large PoE deployments.
Featuring 24 × Gigabit PoE+ 1*Console RS232 port (115200,N,8,1) and 4 × 1/10G SFP+ uplink ports,
this model delivers non-blocking wire-speed switching, intelligent PoE management, and
comprehensive security features.
Supporting IEEE 802.3af/at PoE+, each port provides up to 30 W, with a total PoE budget of 400 W.
Advanced features such as ERPS (<20 ms recovery), RSTP/MSTP, IPv4/IPv6 management, and static
routing make this switch ideal for high-availability, large-scale deployments in hospitality, education,
commercial, and industrial environments.
