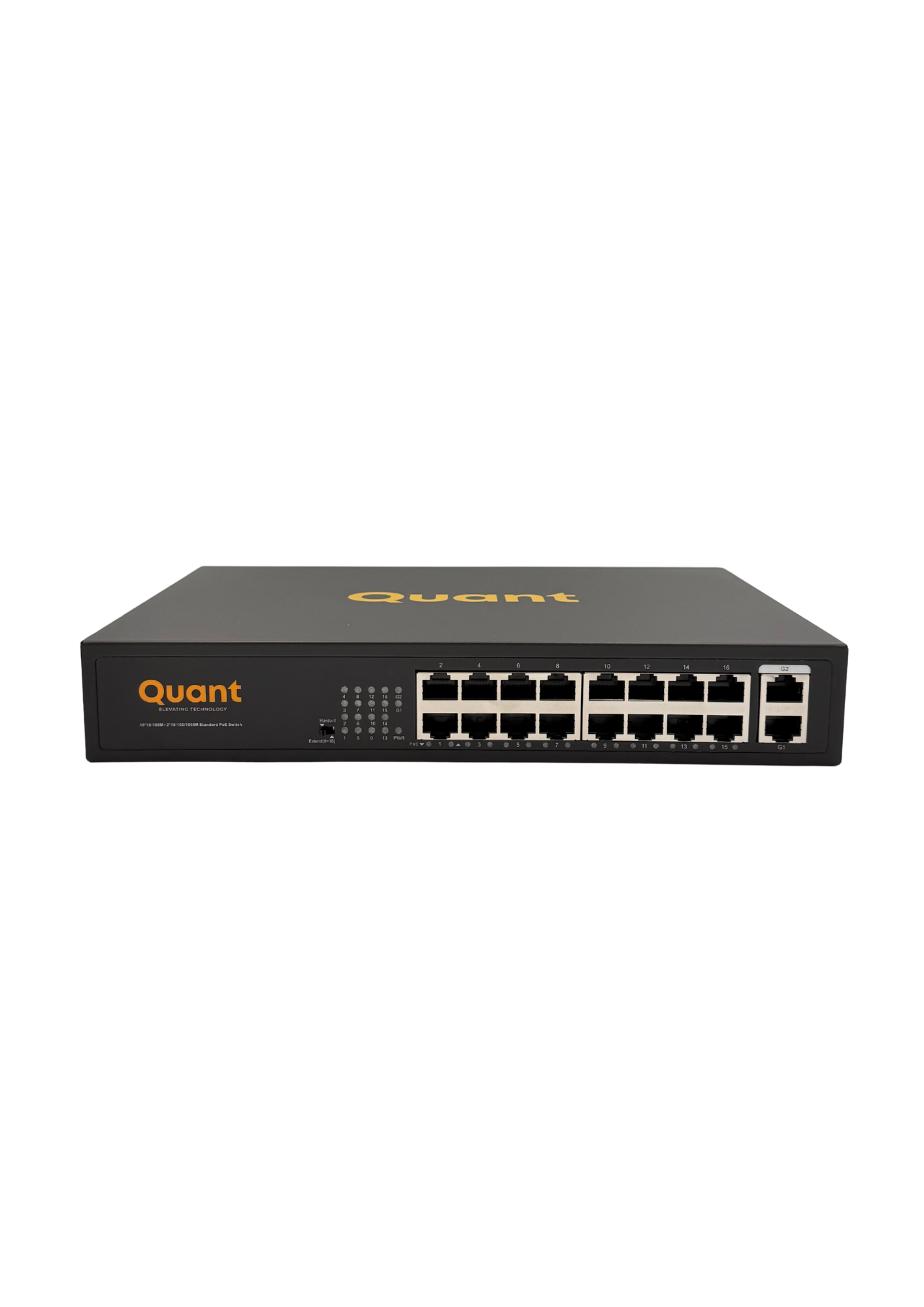

308 Series – 16-Port Gigabit PoE+ Switch, + 2 SFP Uplink, 250W, AC 100–240V – Q-UM-308-16P-2S

Technical Specification

  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 26.78 Mpps
  • Buffer Memory: 4M
  • Jumbo Frame: 9.2 KB
  • Input Voltage: 240W
  • SFP Uplink: 2 x 1000 Base-X Uplink SFP

Description

The Quant 308 PoE Switch Series delivers cost-effective, high-performance Gigabit connectivity with robust PoE+ power for modern IP networks. Designed for plug-and-play simplicity and enterprise-grade reliability, these unmanaged switches combine copper and fiber interfaces, long reach PoE transmission, and automated power recovery features. They are ideal for IP surveillance, wireless access deployments, VoIP networks, and SMB infrastructure. With support for IEEE 802.3af/at PoE+ standards and fiber uplinks port, they provide a flexible and scalable solution for hotels, campuses, residential buildings, and commercial sites.

Product Advantage and Applications

  • High-Density PoE+ Powering
    Up to 16 or 24 PoE+ ports (30 W per port), supporting a wide range of IP devices.
  • Flexible Uplink Options
    2 × SFP fiber uplink port for backbone connectivity.
  • Extended Transmission Range
    PoE reaches up to 250 m on selected ports for remote device deployment.
  • Smart Watchdog Function
    Automatic PoE power cycling on communication failure keeps cameras and APs online.
  • Compact and Robust Design
    Fan-cooled galvanized steel enclosure ensures stable operation in demanding environments.
ENQUIRE NOW
File Name Size Download
Quant-308-Switch-Series-Q-UM-308-16P-2S-Q-UM-308-24P-2S.pdf 947.70 KB Download
