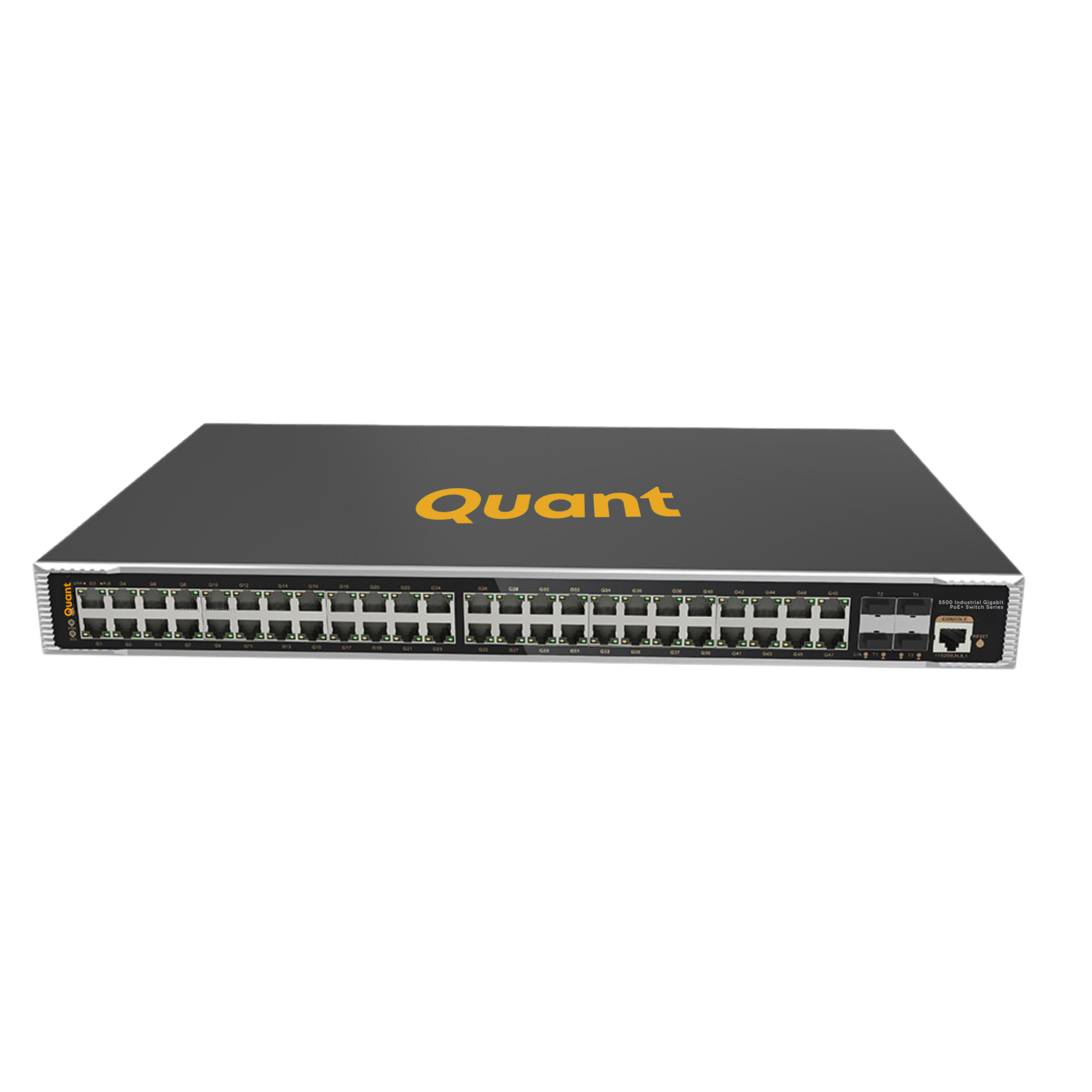

Q-IE-5500-48P-L2-4G-E<br><span>5500 Series - 48-Port Industrial Gigabit PoE+ L2+ Managed Switch with 4 × 1/10 G SFP+ Uplinks</span>

Q-IE-5500-48P-L2-4G-E
5500 Series – 48-Port Industrial Gigabit PoE+ L2+ Managed Switch with 4 × 1/10 G SFP+ Uplinks

Technical Specification

  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 131 Mpps
  • Buffer Memory: 32 Mbit
  • Jumbo Frame: 9.6 KB
  • Input Voltage: 600W
  • SFP Uplink: 4 × 1/10G SFP+

Description

The Quant 5500 Industrial Switch Series delivers cost-effective, high-performance Layer 2+ access switching designed for enterprises, industrial environments, branch offices, and small to mid size businesses. Available in 24-port and 48-port Gigabit PoE+ models, the series provides reliable, secure, and high density connectivity with advanced redundancy and comprehensive management features. These fully managed switches offer industrial-grade design, enhanced PoE power budgets, and versatile uplink options to support a wide range of mission-critical applications such as CCTV, access control, intelligent building systems, and IoT networks. With a wide operating temperature range (−40 °C to +80 °C), robust surge protection, and dual power inputs, the Quant 5500 Series is ideally suited for harsh environments demanding maximum uptime and network resilience.

Product Advantage and Applications

  • Industrial-Grade Design
    Extended operating temperature range of −40 °C to +80 °C.
    Galvanized steel IP30-rated housing with 6 kV surge protection.
    Fan-cooled, low-power design for stable long-term operation in industrial deployments.
  • Powerful PoE+ Capability
    IEEE 802.3af/at compliant, delivering up to 30 W per port.
    400 W total PoE power (24-port) and 600 W total PoE power (48-port).
    Intelligent PoE features including power scheduling, remote control, and priority allocation.
  • Flexible Uplink Options
    24-port model: 4 × 100/1000 Mbps SFP uplinks.
    48-port model: 4 × 1/10 G SFP+ uplinks for high-speed backbone integration.
    Supports single-mode and multi-mode fiber with DDM and hot-swapping.
  • Advanced Switching & Security
    VLAN, QinQ, ACL, and IGMP Snooping v1/v2/v3.
    Port isolation, 802.1X authentication, IP–MAC–Port–VLAN binding.
    STP/RSTP/MSTP and ERPS (< 20 ms) redundancy for high availability.
  • Versatile Network Management
    Intuitive Web GUI, CLI, Telnet, SNMP v1/v2/v3, HTTPS, SSH.
    LLDP and Quant-NMS support for centralized monitoring and control.
    Industrial diagnostics tools: cable testing, ping, CPU/memory monitoring, RMON
ENQUIRE NOW
File Name Size Download
5500-Switch-Series-Q-IE-5500-24P-L2-4S-E-Q-IE-5500-48P-L2-4G-E-1.pdf 1.74 MB Download
