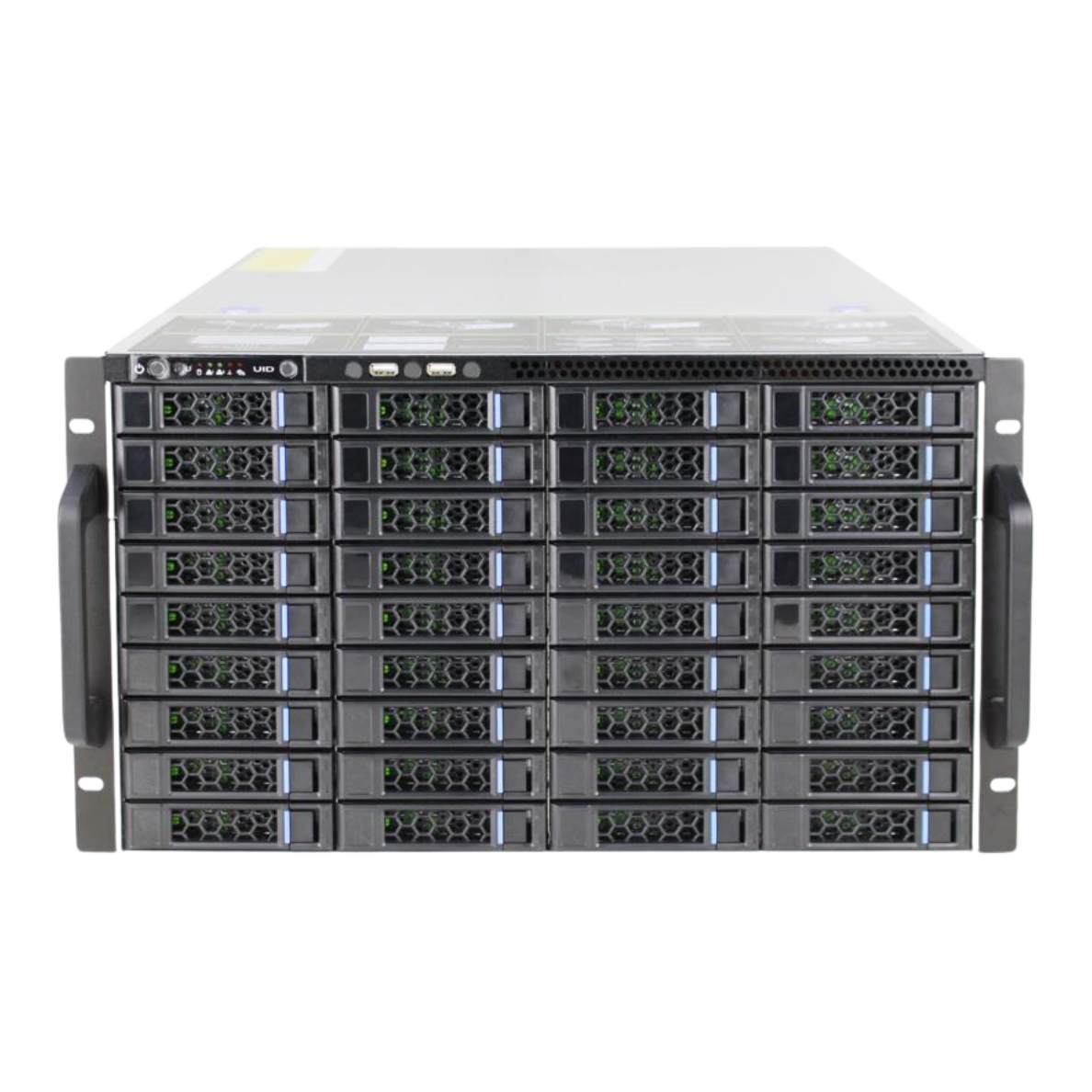

HyperRack XR61440<br><span>A High-Density 6U Enterprise Storage Platform Engineered For Petabyte-Scale Workloads</span>

HyperRack XR61440
A High-Density 6U Enterprise Storage Platform Engineered For Petabyte-Scale Workloads

Technical Specification

  • Dual Intel® Xeon® Scalable (2nd Gen) processor support
  • 32GB DDR4 ECC memory (16 DIMM slots)
  • 60 × 3.5″/2.5″ front hot-swap bays + 2 × rear 2.5″ bays
  • Supports up to 1.44 PB raw capacity
  • 12 Gb/s SAS & 6 Gb/s SATA via expander backplane
  • Broadcom MegaRAID 9460-16i (4 GB cache), RAID 0/1/5/6/10/50/60
  • PCIe Expansion: 3 × PCIe 3.0 x8, 3 × PCIe 3.0 x16, plus 2 × M.2 slots
  • 6U high-density rackmount storage server

Description

Powered by dual Intel® Xeon® Scalable processors and the Intel® C621 chipset, it delivers a blend of compute and storage performance in a modular 60-bay chassis optimized for data centers, HPC clusters, and virtualization infrastructures. With up to 1.44 PB of raw capacity, redundant 1 + 1 PSUs, and hot-swap fan modules, the XR61440 ensures always-on reliability and simplified maintenance.

Product Advantage and Applications

  • Extreme Density — Supports 60 × 3.5″/2.5″ front bays + 2 rear SSD bays (1.44 PB max raw capacity)
  • High Compute Headroom — Dual Intel® Xeon® Scalable CPUs (up to 205 W TDP each, 40 cores total)
  • Memory Scalability — 16 DIMM slots support up to 4 TB DDR4 ECC RDIMM/LRDIMM or Intel® Optane™ PMem
  • Versatile Expansion — 6 × PCIe 3.0 slots (3 × x16 + 3 × x8) + 2 × M.2 for RAID, NIC, or GPU cards
  • Enterprise Resilience — 1 + 1 redundant 1600 W Platinum PSU + hot-swappable PWM fans
  • Integrated Management — ASPEED AST2500 BMC with IPMI 2.0 and remote KVM
  • Certified Ecosystem Support — Windows Server 2019 / Linux / VMware ESXi
ENQUIRE NOW
File Name Size Download
Quant-HyperRack-XR61440-1.pdf 1.10 MB Download
