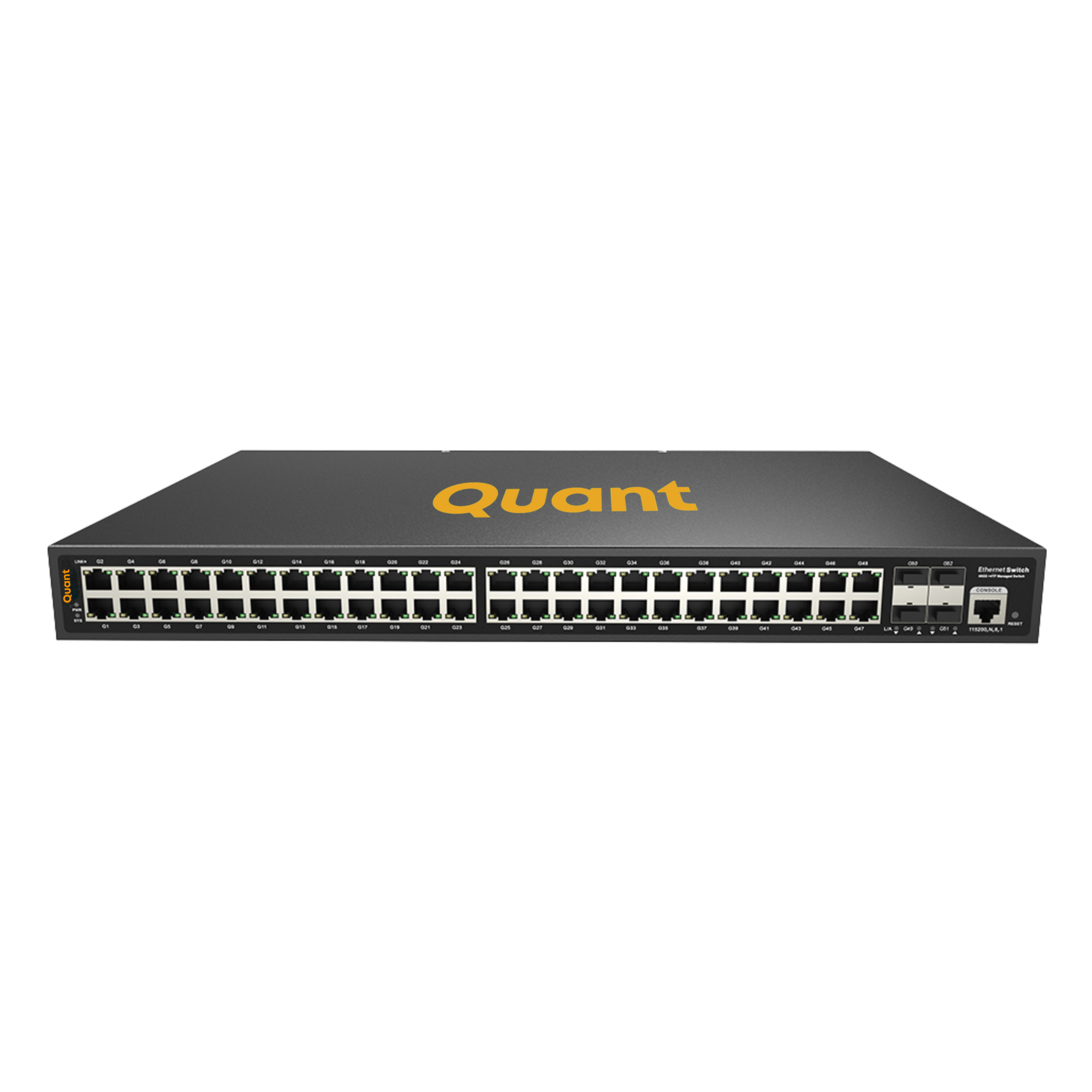

9500 Series – 48-Port Gigabit Layer 2+ Managed Ethernet Switch with 4 SFP uplinks and built-in AC power supply – Q-EP-9500-48P-L2-4G-R
The Quant 9500 Series Layer 2+ Managed Ethernet Switches deliver high-performance, secure,
and intelligent connectivity designed for enterprise, education, healthcare, and video-surveillance
network infrastructures.
Based on a high-speed non-blocking architecture, the 9500 Series integrates 48 Gigabit Ethernet
ports and 4 dedicated Gigabit SFP uplinks, providing a total switching capacity of 104 Gbps with
wire-speed forwarding and minimal latency.
Engineered for performance and reliability, the 9500 Series supports comprehensive Layer 2 and
Layer 2+ features including VLAN segmentation, link aggregation, loop protection, QoS prioritization,
and ACL-based traffic control. Optional IPv4 static routing capabilities simplify inter-VLAN
communication and enable cost-effective network segmentation without requiring Layer 3 core
devices.
Built with energy-efficient hardware, redundant power input, and a metal rack-mount enclosure, the
Quant 9500 ensures stable operation in enterprise environments 24 × 7. It provides comprehensive
management options including Web GUI, CLI, SNMP v1/v2/v3, HTTPS, and ONV-NMS for centralized
administration and monitoring.
With its high port density, robust security, and carrier-grade reliability, the Quant 9500 Series is an
ideal choice for deployment at the access or aggregation layer of enterprise networks requiring high
availability and scalability.
