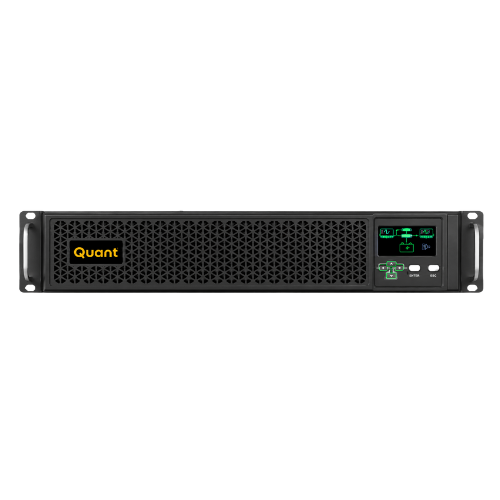

PE-RT010-3X<br><span>Power Edge Online Rack UPS ((10 kVA, 3-1-Rack )</span>

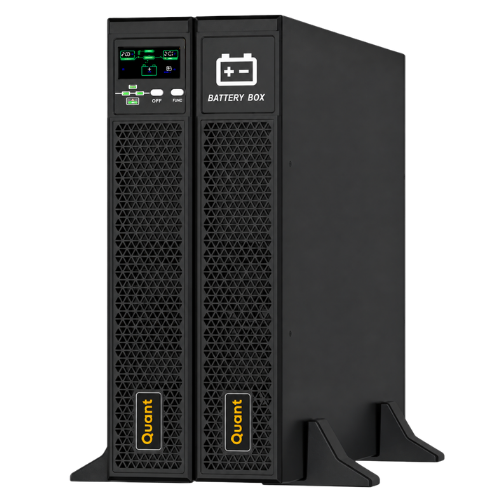

PE-RT010-3X<br><span>Power Edge Online Rack UPS ((10 kVA, 3-1-Rack )</span> - Image 2

PE-RT010-3X
Power Edge Online Rack UPS ((10 kVA, 3-1-Rack )

Technical Specification

  • Model: PE-RT010-3X
  • Type: Online Double-Conversion UPS, 4U Rack
  • Rated Capacity: 10kVA / 10kW
  • Phase Configuration: 3-Phase Input / 1-Phase Output; also supports 1P/1P
  • Input Range: 190–499VAC (L-L), 40–70Hz
  • Output Voltage: 220/230/240VAC
  • Output Power Factor: 1.0
  • Efficiency: Up to 95% in normal mode
  • External Battery System: 16–24 batteries, configurable; 192VDC default
  • Charging Current: 5A standard; optional 12A charger
  • Standard Interfaces: RS232, RS485 and EPO

Description

The QUANT POWER EDGE PE-RT010-3X is a 10kVA/10kW online double-conversion UPS designed to protect critical IT, ELV and commercial equipment. Its 4U rack format supports integration into rack-based installations, while flexible input configurations provide a stable single-phase output. Configurable external batteries allow backup runtime to be sized according to the connected load and project requirements.

Product Advantage and Applications

  • Online double-conversion technology provides continuous power conditioning.
  • Output power factor 1.0 delivers 10kW of rated active power.
  • Wide input voltage tolerance accommodates varying utility conditions.
  • External battery configuration supports project-specific runtime requirements.
  • Optional SNMP card enables network-based monitoring.
  • Suitable for server racks, networking infrastructure, CCTV and access control systems.
ENQUIRE NOW
File Name Size Download
POWER-EDGE-Series-PE-RT010-3X-_datasheet.pdf 3.85 MB Download
