QUANT POWER EDGE ONLINE UPS (10kVA 3-Phase Tower) – PE-T010-3I-20B, PE-T010-3X, PE-T010-3X-40B, PE-T010-3X-80B

Technical Specification

  • Rated Capacity: 10kVA / 10kW, 3-Phase Online UPS

  • High Power Factor: PF 1.0 (≥0.99 input)

  • Wide Input Voltage: 380/400/415VAC

  • Wide Frequency Range: 40–70Hz

  • Low Harmonic Distortion: THDi ≤2%

  • 240VDC Battery System

  • Flexible Battery Support: Internal & External Battery Options

  • Battery Configurations: 20 / 30–50 / 40 / 80 pcs (model dependent)

  • Smart 7” Touch Screen Display

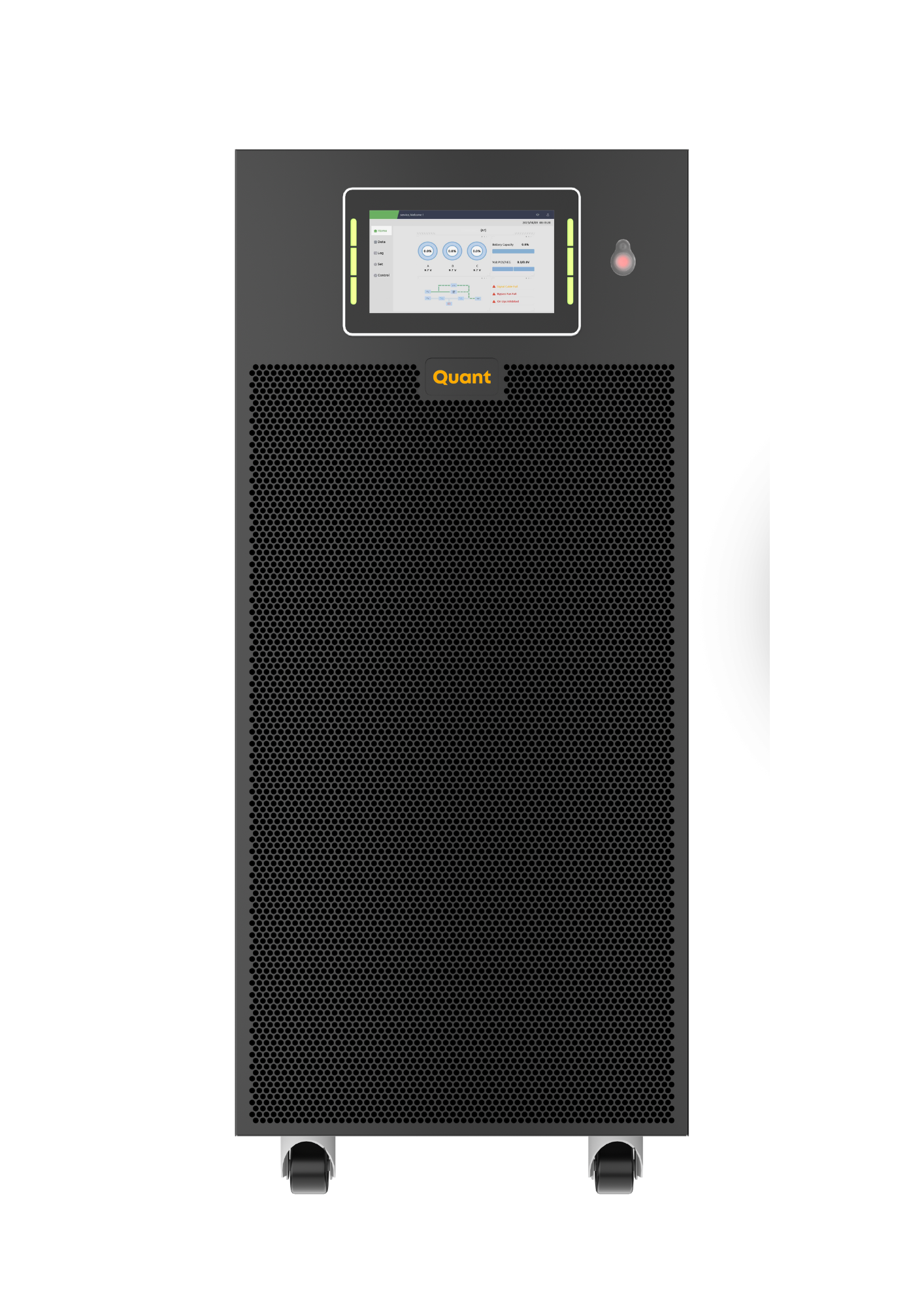

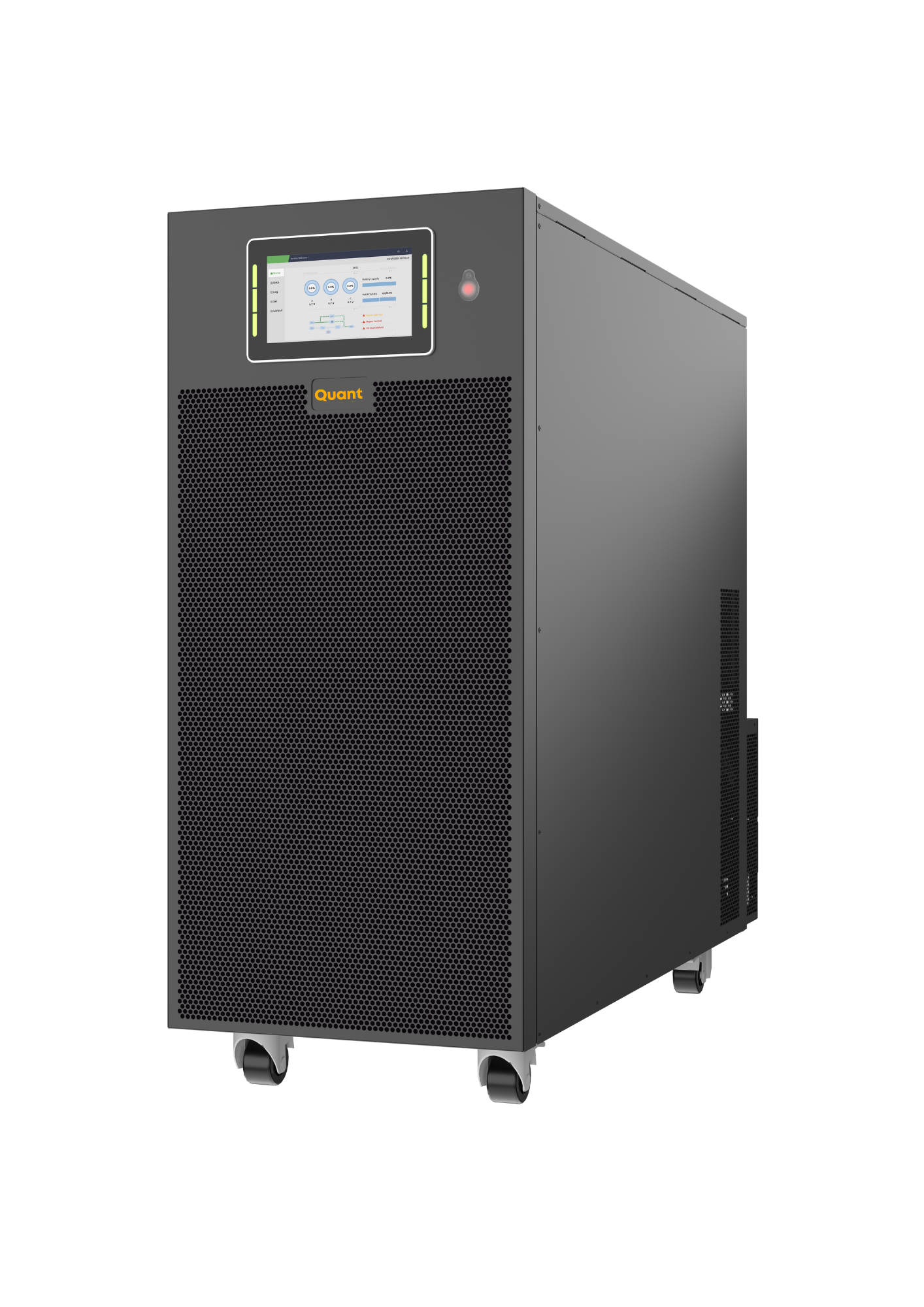

  • Tower Design

  • High Charging Efficiency: Up to 17.2% Pout

  • Ideal for Mission-Critical Power Applications

Description

The QUANT POWER EDGE 10kVA Tower UPS is an advanced 3 phase online double-conversion uninterruptible power system designed for critical applications requiring superior power protection, high reliability, and intelligent monitoring. With DSP full-digital control, high-efficiency inverter architecture, and a 7-inch IoT touch LCD, this UPS delivers clean, uninterrupted power to mission-critical IT, medical, industrial, and ELV systems. Available in internal battery (20/40/80 cells) and external-battery configurations, the POWER EDGE series offers flexible runtime, robust performance, and strong environmental adaptability.

Product Advantage and Applications

  • True Online Double-Conversion
    Zero transfer time ensures stable and continuous power.
  • 3-Phase Input / 3-Phase Output (3P/3P)
    Ideal for enterprise and industrial loads.
  • High Power Density
    Compact tower design with strong inverter capability.
ENQUIRE NOW
File Name Size Download
QUANT-POWER-EDGE-ONLINE-UPS-PE-T010-3I-20B-PE-T010-3X-40B-PE-T010-3X-80B-PE-T010-3X.pdf 1.04 MB Download
