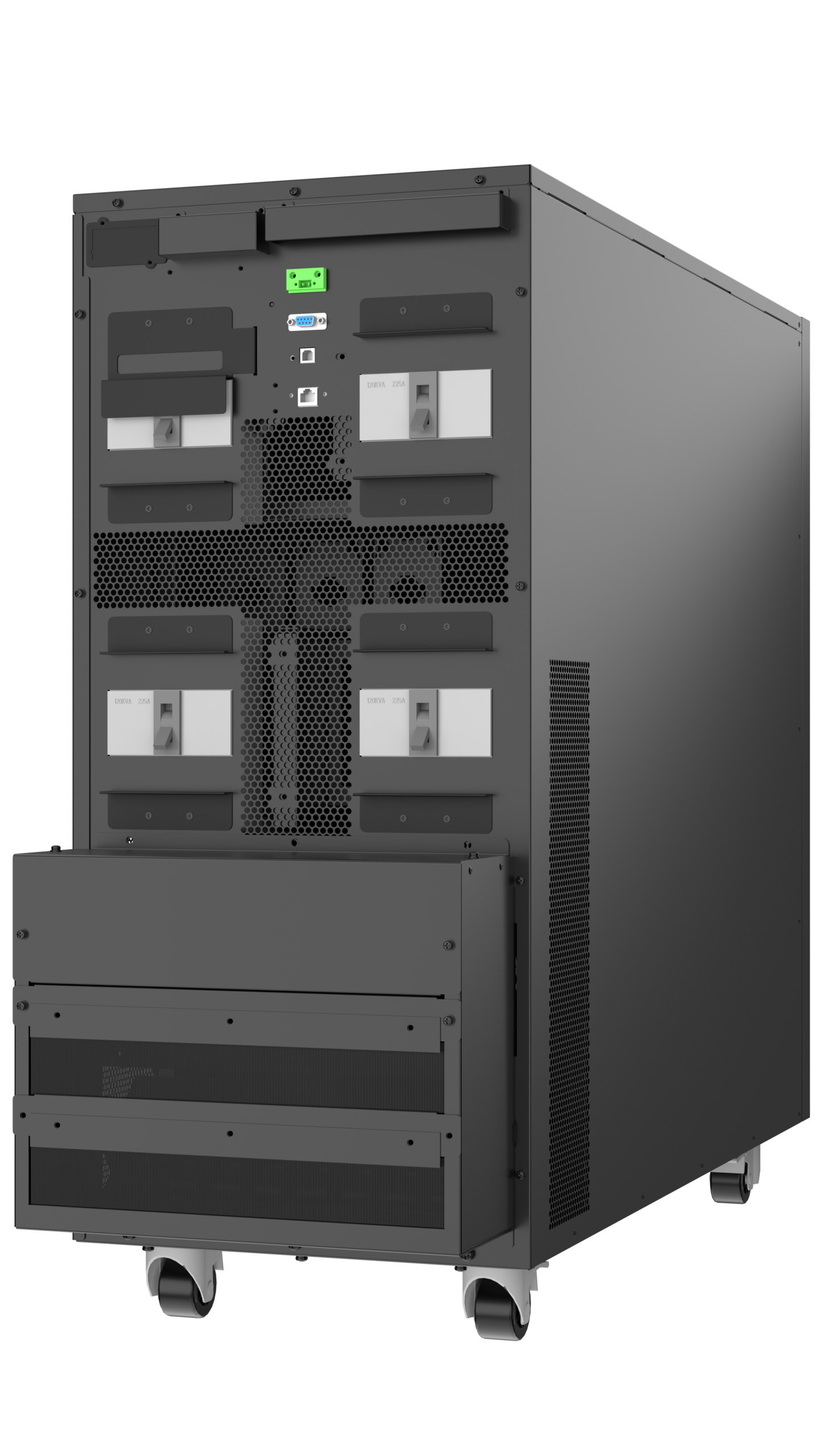

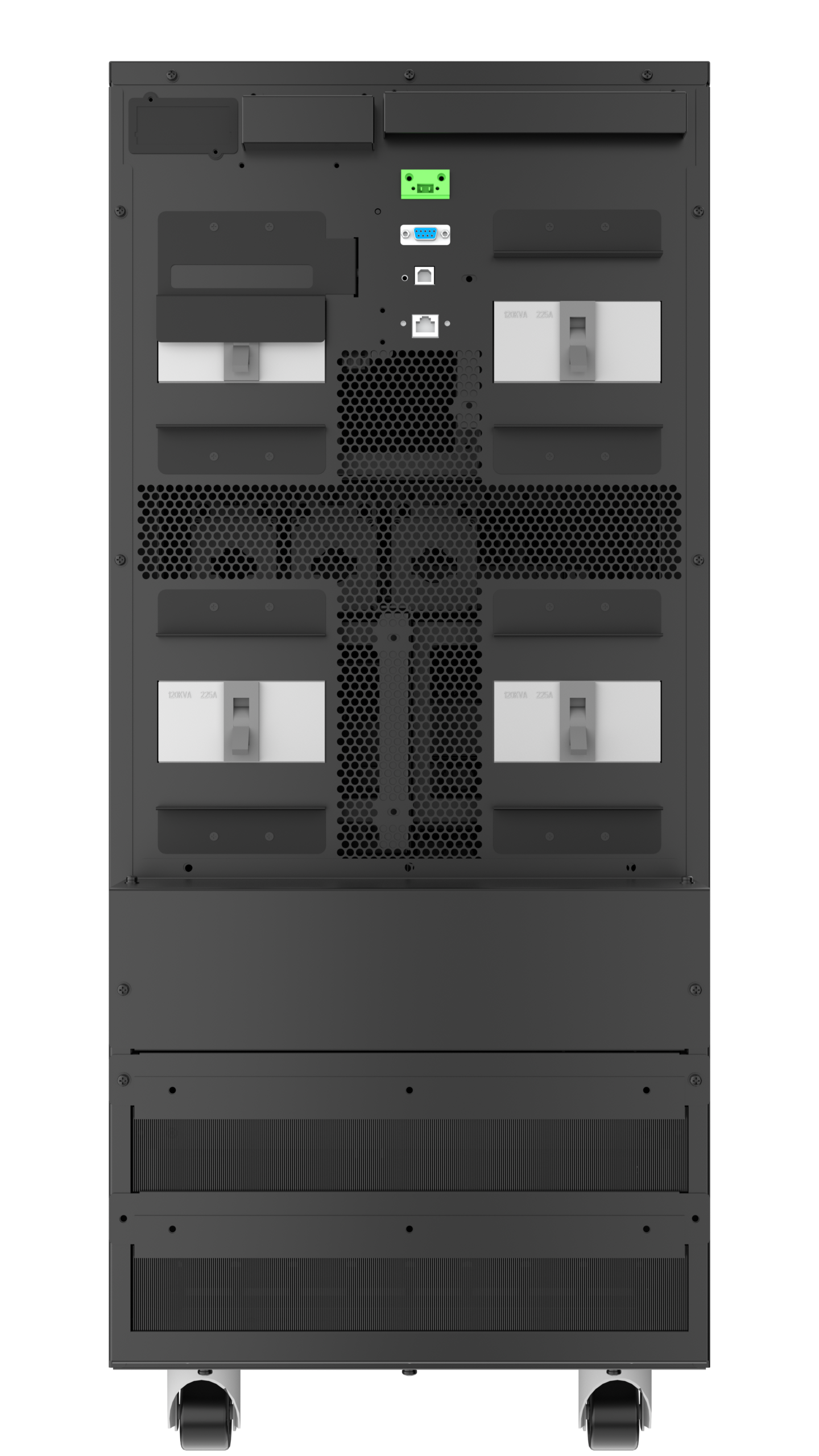

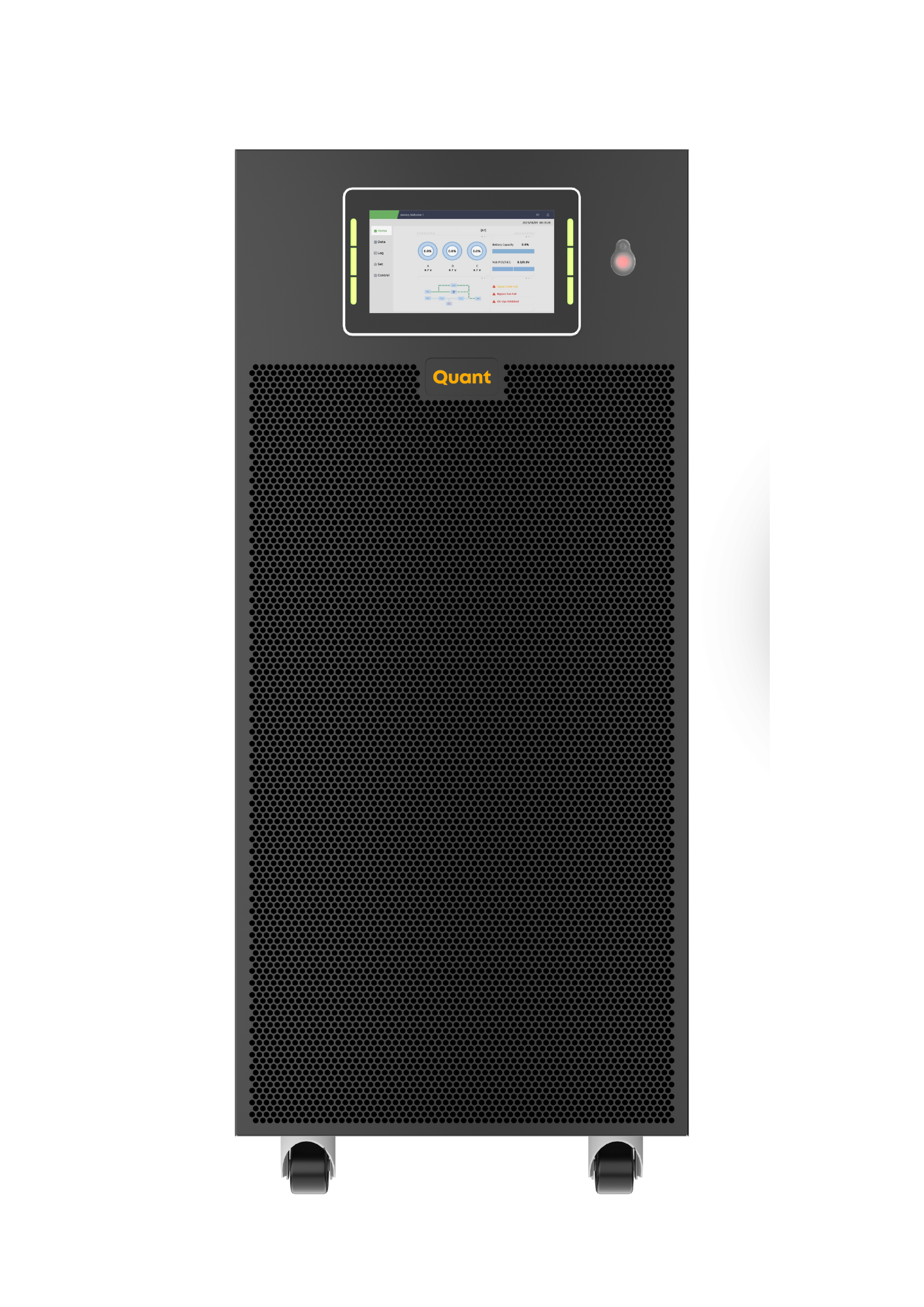

QUANT POWER EDGE ONLINE UPS (40kVA 3-Phase Tower) – PE-T040-3I, PE-T040-3X-80B

Technical Specification

  • Rated Power: 40kVA / 40kW, 3-Phase Online UPS

  • High Power Factor: PF 1.0, Input PF ≥0.99

  • Low Harmonic Distortion: THDi ≤3% (linear load)

  • Wide Input Voltage: 220/230/240VAC & 380/400/415VAC

  • Wide Frequency Range: 40–70Hz

  • 240VDC Battery System (40 pcs default)

  • Flexible Battery Options: Internal & External Battery Support

  • Battery Configuration: 12VDC / 7–9Ah, up to 80 pcs (model dependent)

  • Smart Display: 7” Touch Screen

  • Tower Design for High-Capacity Critical Applications

Description

The QUANT POWER EDGE 40 kVA Tower UPS is a high performance online double-conversion system engineered for mission-critical applications that demand maximum power reliability, efficiency, and advanced control. With full DSP digital control, modular charging design, and a 7″ IoT smart touch LCD, the system ensures stable, clean power under all operating conditions. The 40 kVA model supports both internal batteries (80 PCS) and external battery configurations, offering flexible runtime customization. Standard breaker architecture ensures safe, stable, and maintainable operation.

Product Advantage and Applications

  • True Online Double-Conversion

           Zero transfer time ensures absolute protection for sensitive loads.

  • 3-Phase Input / 3-Phase Output (3P/3P)

          Designed for enterprise-grade and industrial-grade applications.

  • 7” Color Touch LCD with IoT Monitoring

           Real-time system status, alarms, energy analytics, and remote management.

ENQUIRE NOW

Related Products

QUANT POWER EDGE ONLINE UPS (10kVA 3-Phase Tower) – PE-T010-3I-20B, PE-T010-3X, PE-T010-3X-40B, PE-T010-3X-80B

Read More

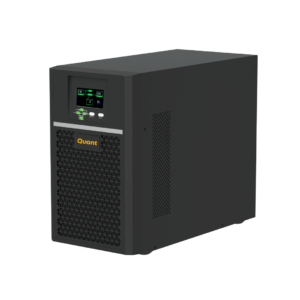

QUANT SMART RACK ONLINE UPS – SMT-T001-X, SMT-T002-X, SMT-T003-X
