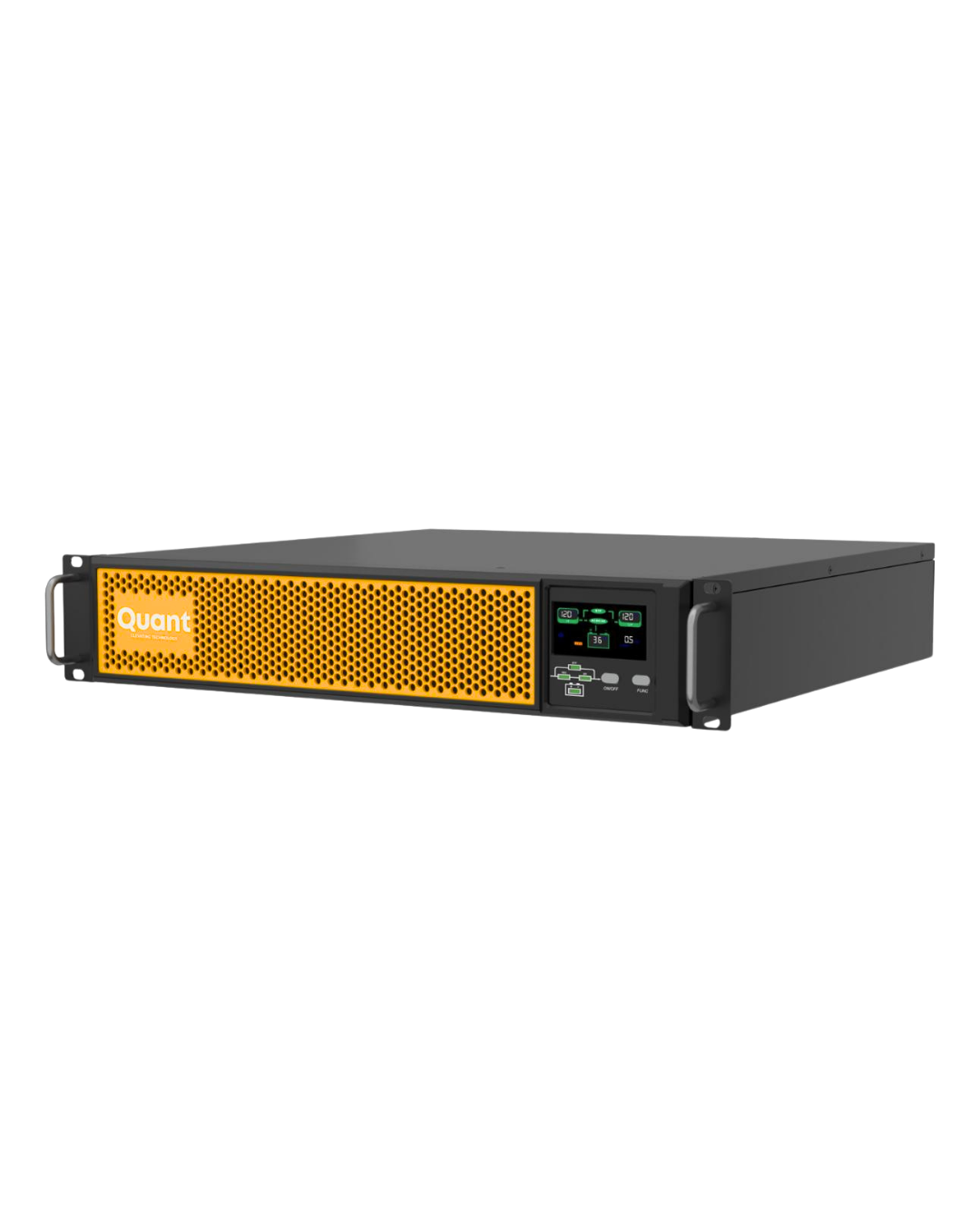

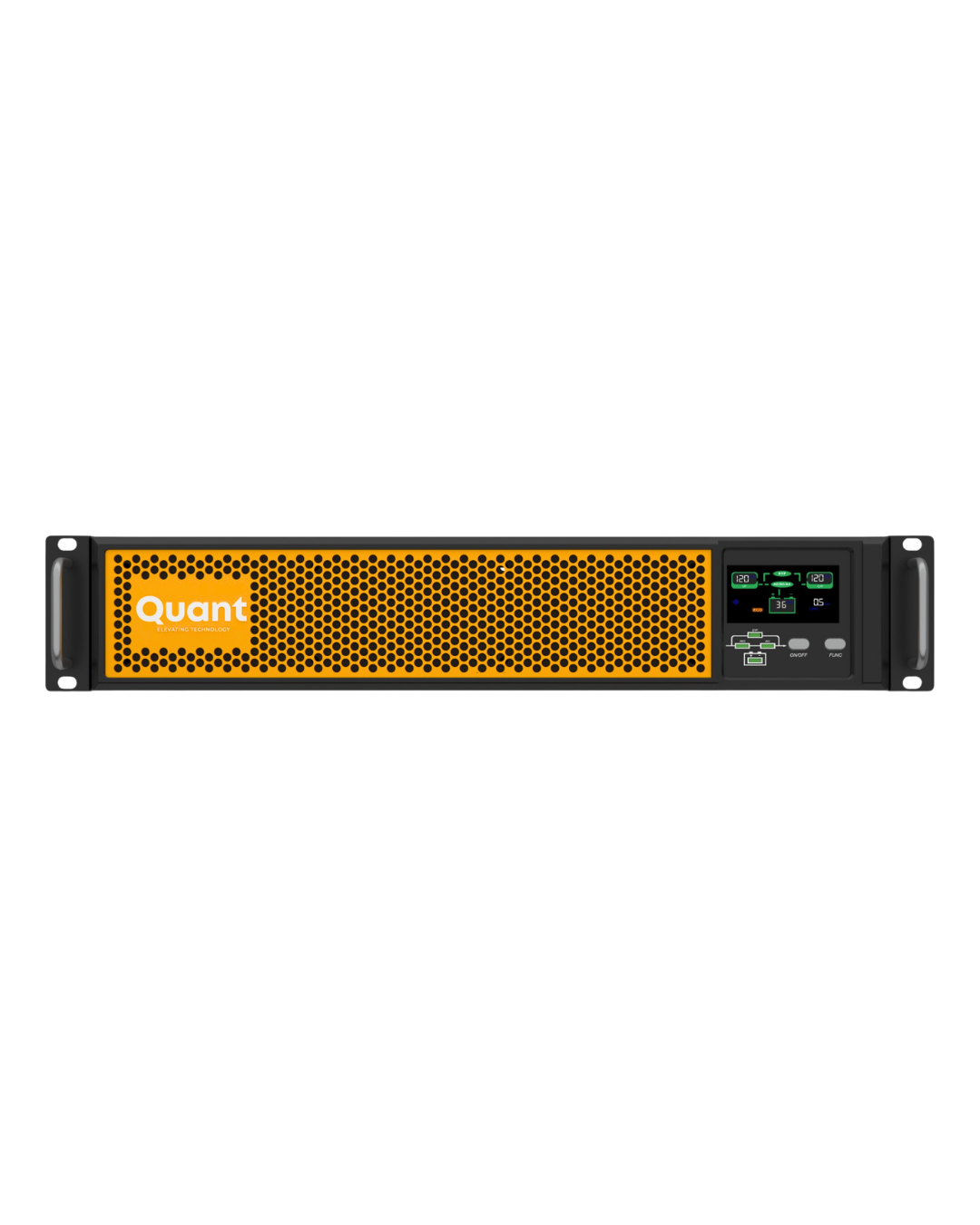

QUANT SMART RACK ONLINE UPS (1–3kVA Single-Phase) – SMT-R001-I, SMT-R01.5-I, SMT-R002-I, SMT-R003-I

Technical Specification

  • Power Range: 1kVA to 3kVA (1kW–3kW)

  • Wide Input Voltage: 110–300VAC

  • High Input Power Factor: ≥0.99

  • Unity Output Power Factor: 1

  • Selectable Frequency: 50/60Hz

  • Multiple Output Voltages: 220/230/240VAC & 200/208VAC

  • Fast Transfer Time: 0ms (Main to Battery)

  • Fast Recovery: ≤40ms

  • Low Harmonic Distortion: ≤2% (Linear Load)

  • Strong Load Handling: ≤5% Load Response

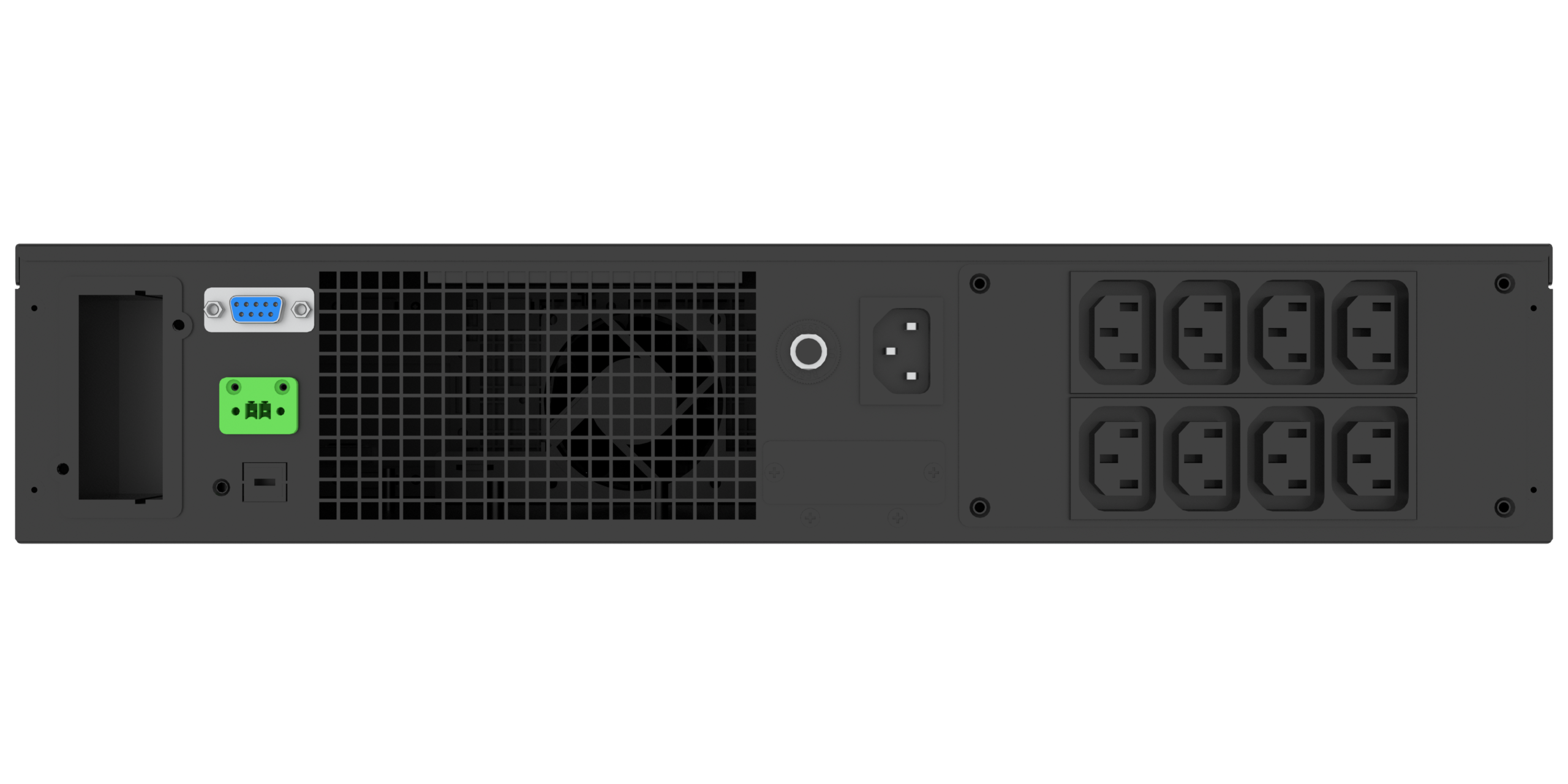

  • Global Socket Options: IEC, Schuko, NEMA, South Africa, UK

Description

The Quant Smart Rack Online UPS (1–3kVA) is a high efficiency, compact, rack-mountable uninterruptible power supply system that ensures uninterrupted, clean, and stable power for sensitive applications. Designed with true online double-conversion topology, the UPS provides zero transfer time and complete isolation from input disturbances. It is ideal for rack-based IT infrastructure, data centers, telecom systems, and security equipment. This UPS features a wide input voltage range (110–300Vac), unity output power factor (1.0), and high battery charging capability (up to 12A) for maximum runtime flexibility.

Product Advantage and Applications

  • True Online Double-Conversion Architecture
  • Rack-mount 2U Design for Space-Constrained Installations
  • Wide Input Voltage Window: 110–300Vac
ENQUIRE NOW
File Name Size Download
QUANT-SMART-RACK-ONLINE-UPS-1–3kVA-SMT-R001-I-SMT-R01.5-I-SMT-R002-I-SMT-R003-I-2.pdf 710.02 KB Download

Related Products

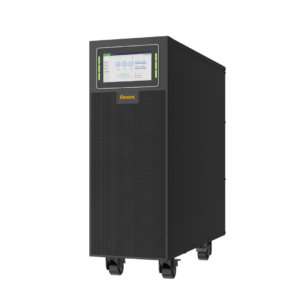

QUANT POWER EDGE ONLINE UPS (20kVA 3-Phase Tower) – PE-T020-3X, PE-T020-3X-40B, PE-T020-3X-80B

Read More

QUANT POWER EDGE ONLINE UPS (30kVA 3-Phase Tower) – PE-T030-3X, PE-T030-3X-80B

Read More

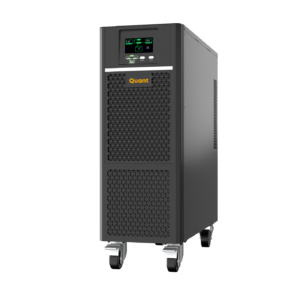

QUANT PROLINE RACK ONLINE UPS (6–20kVA Single-Phase) – PL-R006-I, PL-R010-I
