PE-T020-3X-40B

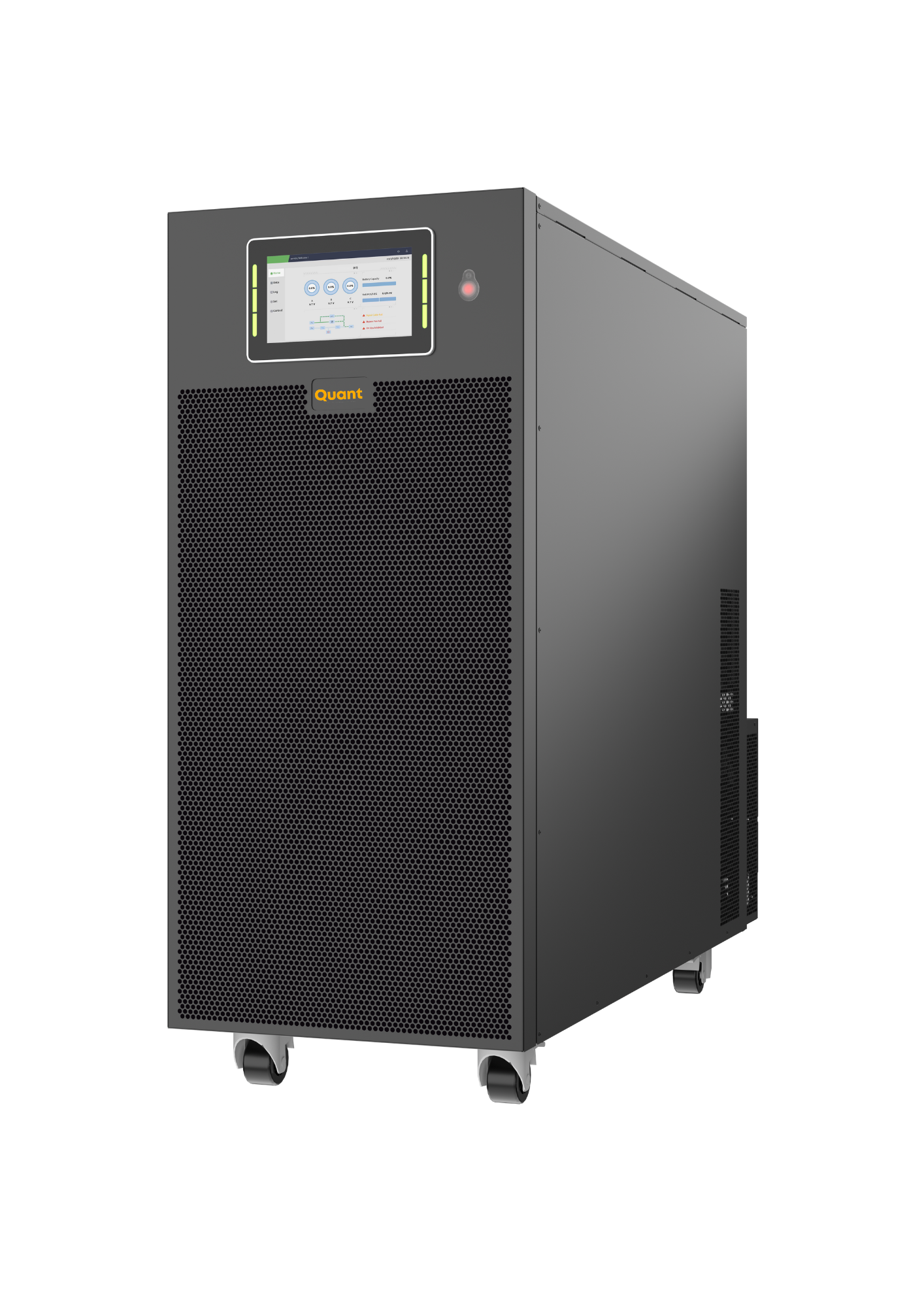

Power Edge Online Tower UPS (20kVA 3-Phase External Module)

Technical Specification

PE-T020-3X-40B is a 20kVA 3-Phase Tower Online UPS with true online double-conversion technology and internal battery space for 40 × 12V batteries. It supports 3P5W input, 380/400/415VAC, 50/60Hz, input PF >0.99, output PF 1.0, ±1.0% voltage accuracy, up to 97% efficiency, and LED + 7-inch touch LCD. Batteries are excluded as per the ordering information.

Description

PE-T020-3X-40B is a compact 20kVA online UPS designed for critical applications that require built-in battery space and reliable backup protection. It is suitable for sites where a cleaner, integrated UPS and battery arrangement is preferred.

Product Advantage and Applications

1. Integrated Battery Space

  • Internal space for 40 × 12V batteries.
  • Reduces the need for a separate external battery cabinet in smaller backup designs.
  • Suitable for compact UPS installations.

2. Clean and Stable Power

  • Online double-conversion design ensures zero transfer time.
  • Output PF 1.0 supports efficient load handling.
  • ±1.0% voltage accuracy helps protect sensitive equipment.

3. Built-In Safety and Control

  • Includes input breaker, output breaker, static bypass breaker, maintenance bypass switch, and battery breaker.
  • DSP digital control improves response and reliability.
  • Smart battery management supports safer operation.

4. Applications

    • IT and server rooms
    • ELV and CCTV command centers
    • Banking and financial institutions
    • Healthcare systems
    • Telecom sites
    • Industrial automation systems
    • Transportation and utility facilities
ENQUIRE NOW
File Name Size Download
POWER-EDGE-ONLINE-UPS-PE-T020-3X-40B-data-Sheet.pdf 1.61 MB Download
POWER-EDGE-ONLINE-UPS-20kVA-3-Phase-User-Manual.pdf 7.97 MB Download
