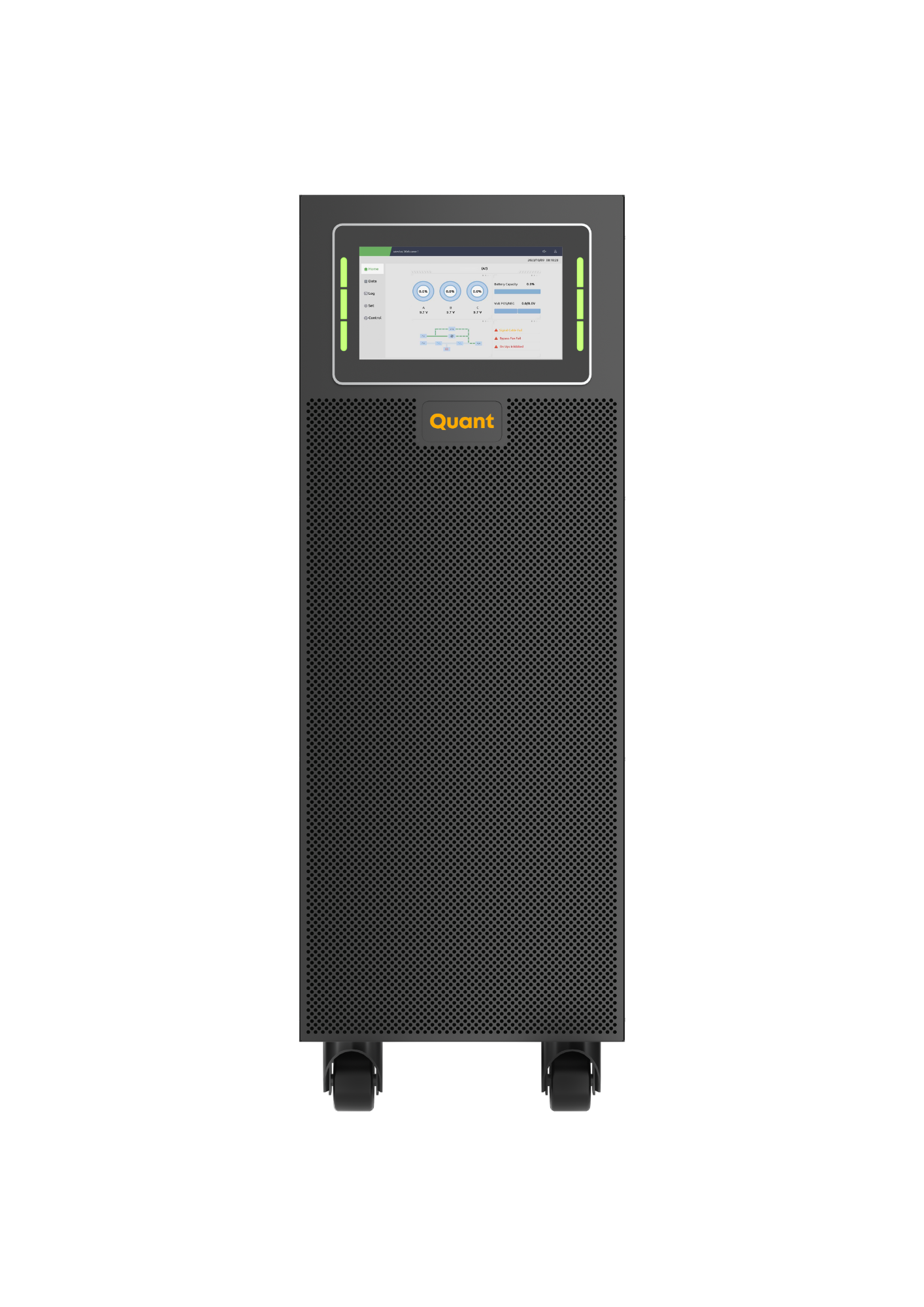

PE-T030-3X-80B<br><span>Power Edge Online Tower UPS (30kVA 3-Phase External Module)</span>

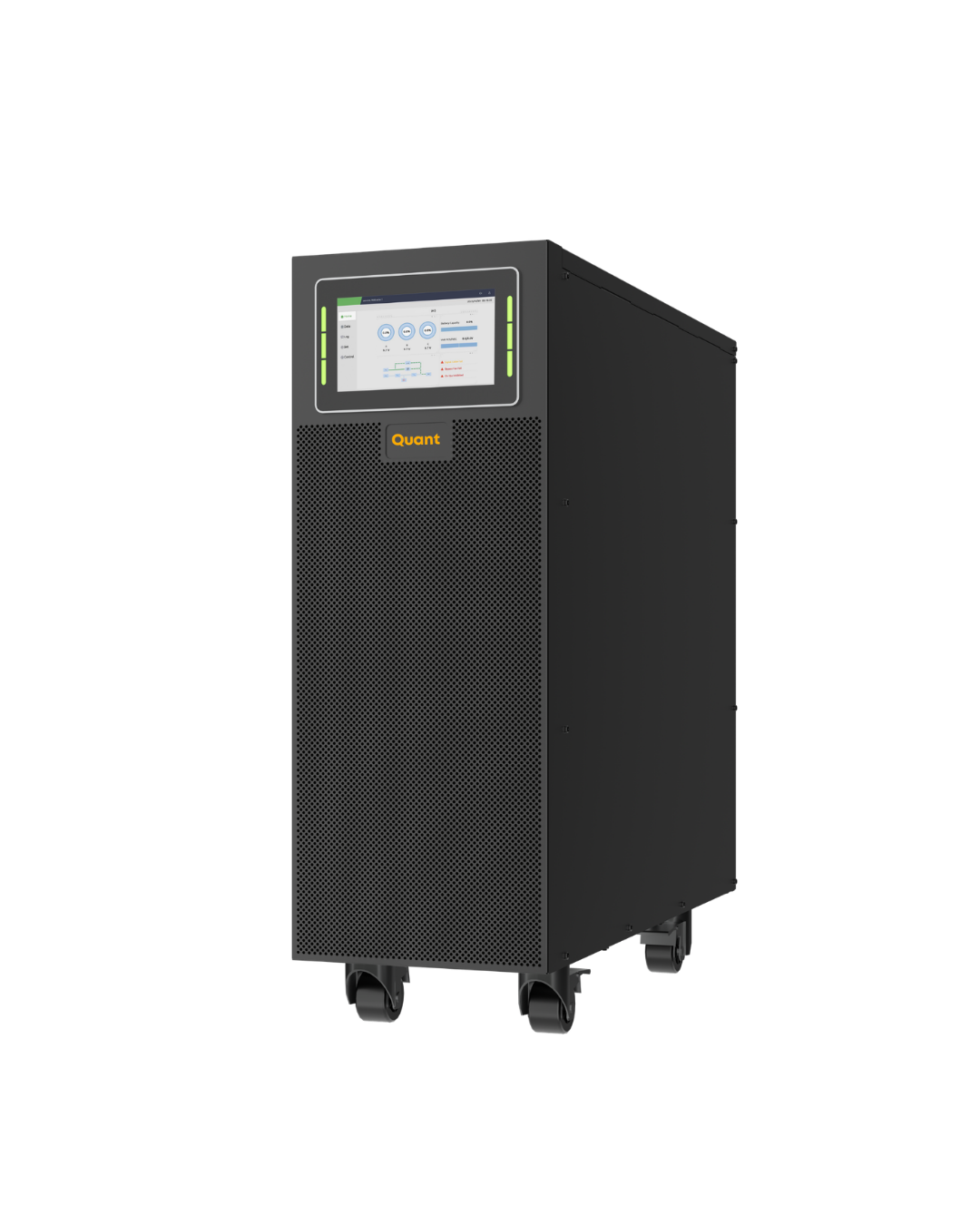

PE-T030-3X-80B<br><span>Power Edge Online Tower UPS (30kVA 3-Phase External Module)</span> - Image 2

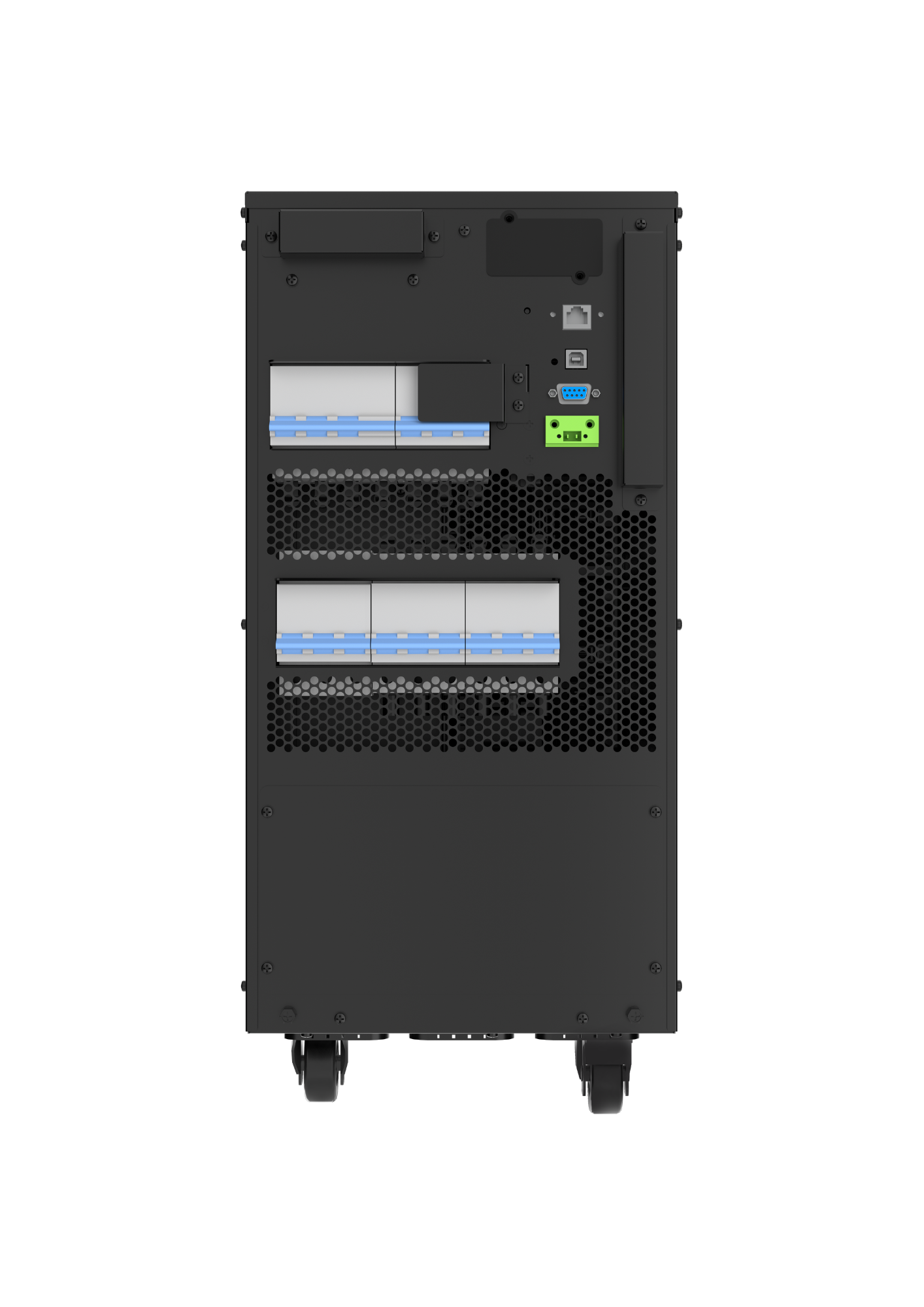

PE-T030-3X-80B<br><span>Power Edge Online Tower UPS (30kVA 3-Phase External Module)</span> - Image 3

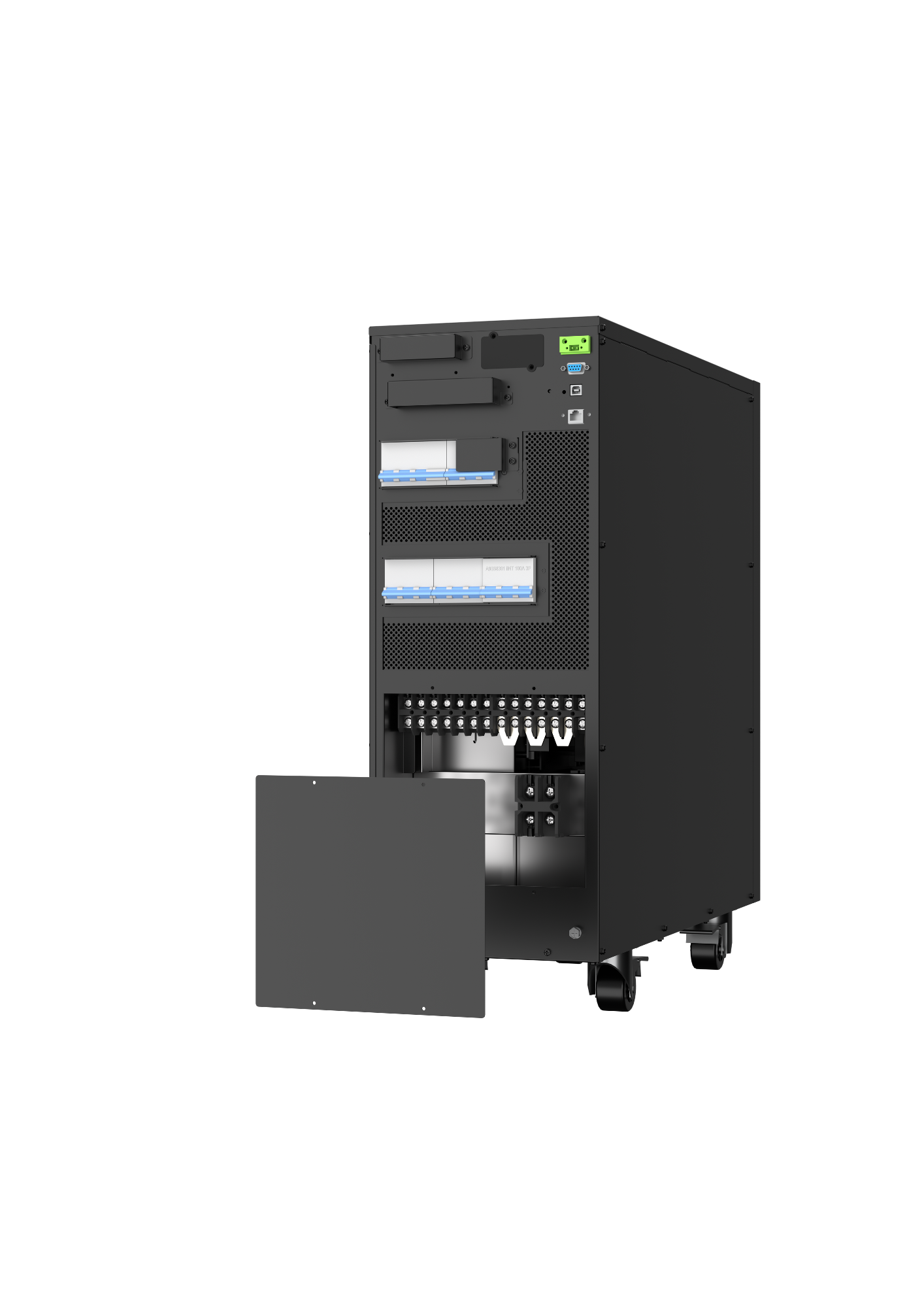

PE-T030-3X-80B<br><span>Power Edge Online Tower UPS (30kVA 3-Phase External Module)</span> - Image 4

PE-T030-3X-80B
Power Edge Online Tower UPS (30kVA 3-Phase External Module)

Technical Specification

  • Rated Power: 30kVA / 30kW, 3-Phase Online UPS

  • High Power Factor: PF 1.0, Input PF ≥0.99

  • Low Harmonic Distortion: THDi ≤2% (linear load)

  • Wide Input Voltage: 220/230/240VAC & 380/400/415VAC

  • Wide Frequency Range: 40–70Hz

  • 240VDC Battery System

  • Flexible Battery Options: External battery or built-in battery (80 pcs / 12V 9Ah)

  • Smart Display: 7” Touch Screen

  • Tower Design for Data Center & Critical Loads

Description

The QUANT POWER EDGE 30 kVA Tower UPS is a high-performance, 3-phase online double conversion system designed to deliver continuous, stable, and clean power to mission-critical equipment. It features full DSP digital control, modular charging, IoT-enabled 7-inch touch LCD, and high-efficiency inverter technology for maximum reliability. The 30kVA model is available in internal battery (80 PCS) and external battery cabinet configurations, providing flexible runtime options and superior environmental adaptability. Standard protection includes input/output breakers, static bypass, maintenance bypass, and battery breakers.

Product Advantage and Applications

  • True Online Double-Conversion
    Zero transfer time ensures absolute protection for sensitive loads.
  • 3-Phase Input / 3-Phase Output (3P/3P)
    Designed for enterprise-grade and industrial-grade applications.
  • 7” Color Touch LCD with IoT Monitoring
    Real-time system status, alarms, energy analytics, and remote management.
ENQUIRE NOW
File Name Size Download
POWER-EDGE-ONLINE-UPS-PE-T030-3X-80B-Data-Sheet.pdf 1.06 MB Download
POWER-EDGE-ONLINE-UPS-30kVA-3-Phase-User-Manual-Copy.pdf 7.97 MB Download
