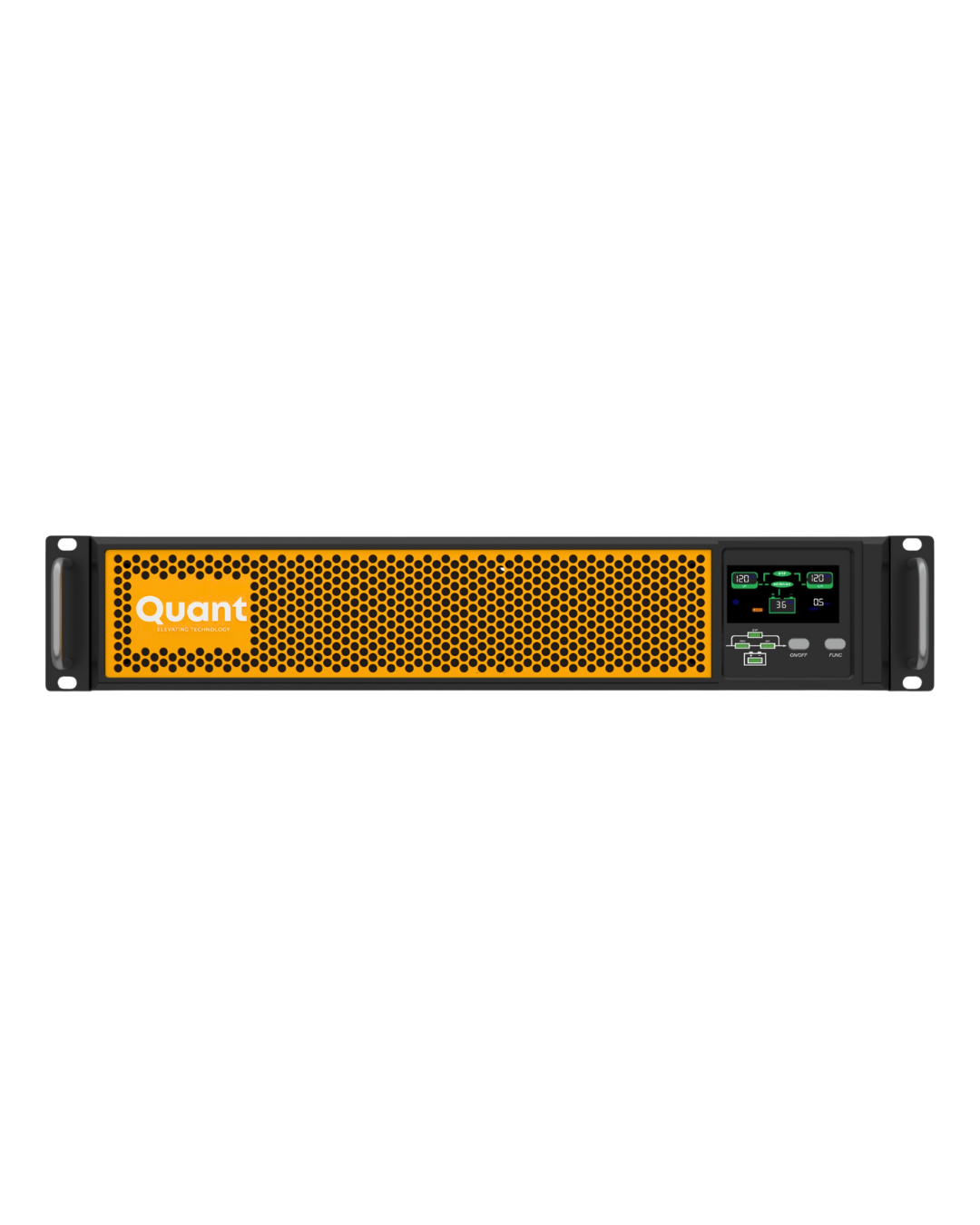

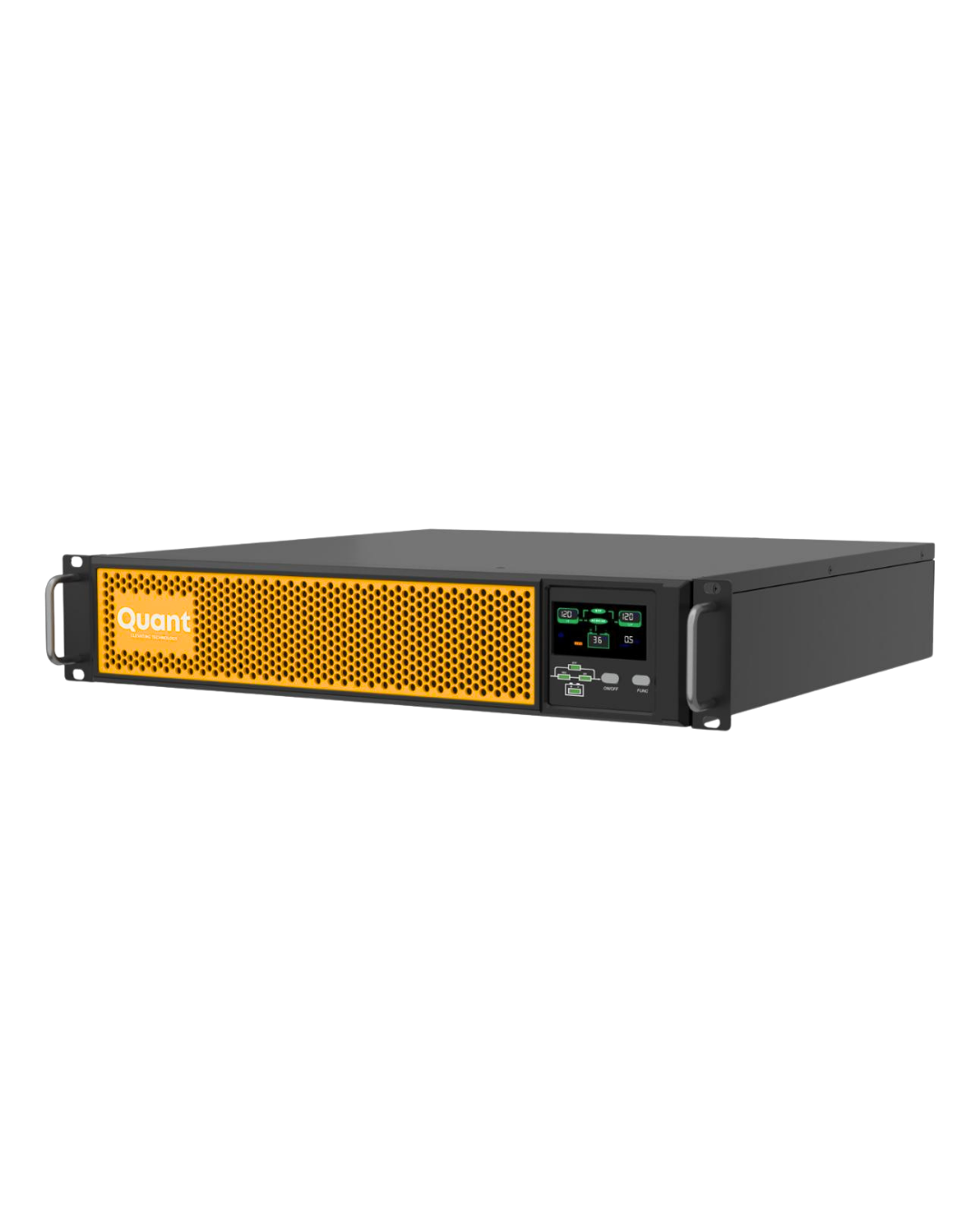

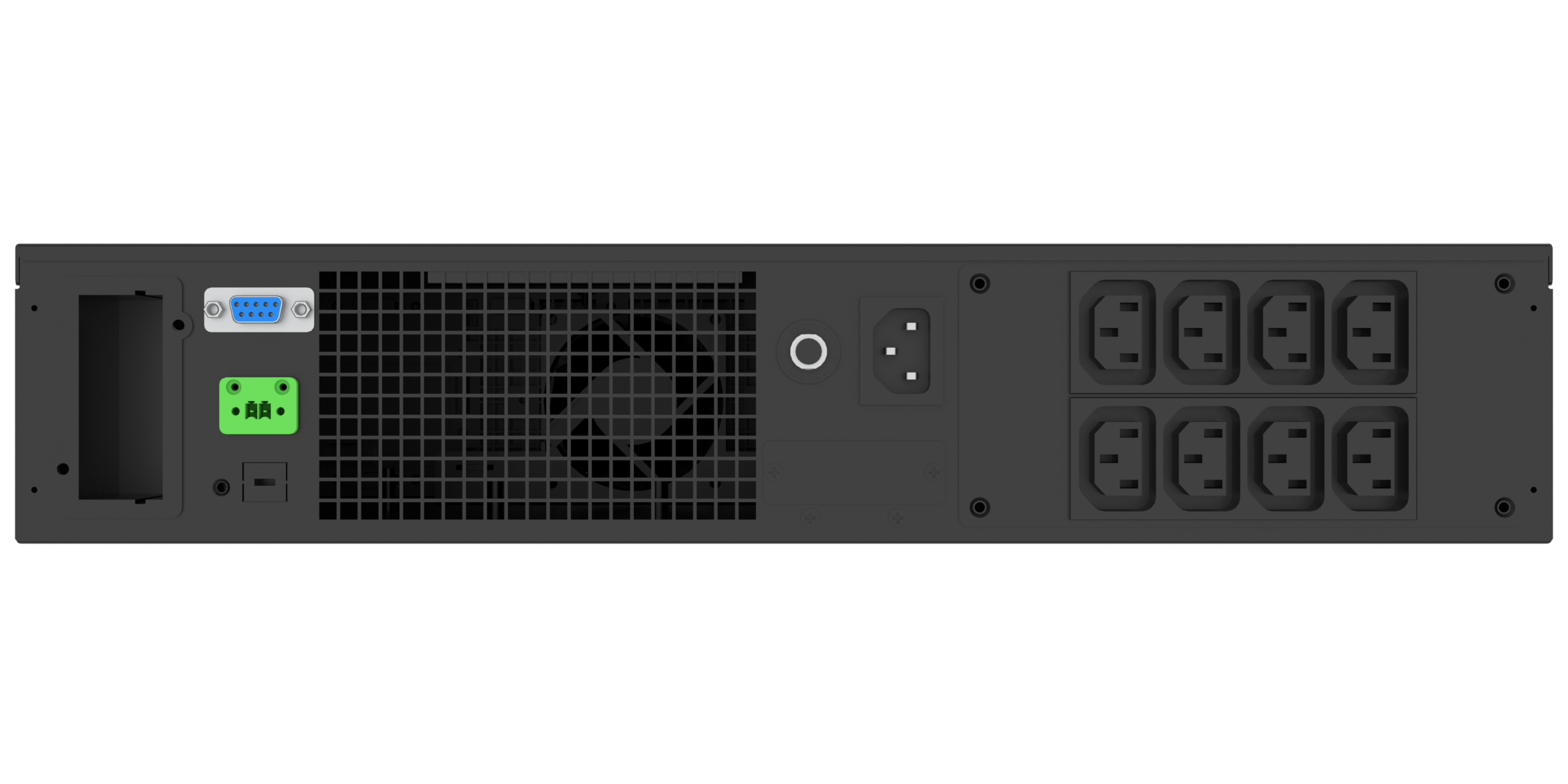

QUANT PROLINE RACK ONLINE UPS (6–20kVA Single-Phase) – PL-R006-I, PL-R010-I

Technical Specification

  • Power Range: 6kVA to 10kVA (6kW–10kW)

  • Wide Input Voltage: 110–288VAC

  • High Input Power Factor: ≥0.99

  • Unity Output Power Factor: 1

  • Wide Frequency Input: 40–70Hz

  • Multiple Output Voltages: 220/230/240VAC & 200/208VAC

  • Fast Load Response: ≤5%

  • Fast Recovery Time: ≤40ms

  • Low Harmonic Distortion: ≤1% (linear), ≤5% (non-linear)

  • Zero Transfer Time: Main to Battery & INV to BYP (0ms)

  • High Crest Factor: 3:1

  • Battery Type: 12VDC / 7Ah

  • Battery Quantity: 16 pcs

  • Cold Start Function

Description

The QUANT PROLINE Rack Online UPS is designed for mission-critical rack installations where continuous, clean, and stable power is essential. Using true online double-conversion technology, 3-level inverter topology, and full digital DSP control, it provides maximum reliability and efficiency for sensitive equipment in IT, ELV, medical, financial, and industrial environments. The series includes high-power-density models, delivering up to 10 kW in only 2U rack height, optimizing space for modern data center and enterprise applications.

Product Advantage and Applications

  • True Online Double-Conversion Architecture: Zero transfer time for complete protection against all power problems.
  • High Power Density – 10 kW in 2U: Ideal for high-load, space-critical rack systems.
  • Output Power Factor = 1.0: Full kW output for maximum load compatibility.
ENQUIRE NOW
File Name Size Download
QUANT-PROLINE-RACK-ONLINE-UPS-INTERNAL-BATTERY-PL-R006-I-PL-R010-I-1.pdf 919.73 KB Download
