Q-GLC-LX-SMD<br><span>1.25G SFP SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM</span>

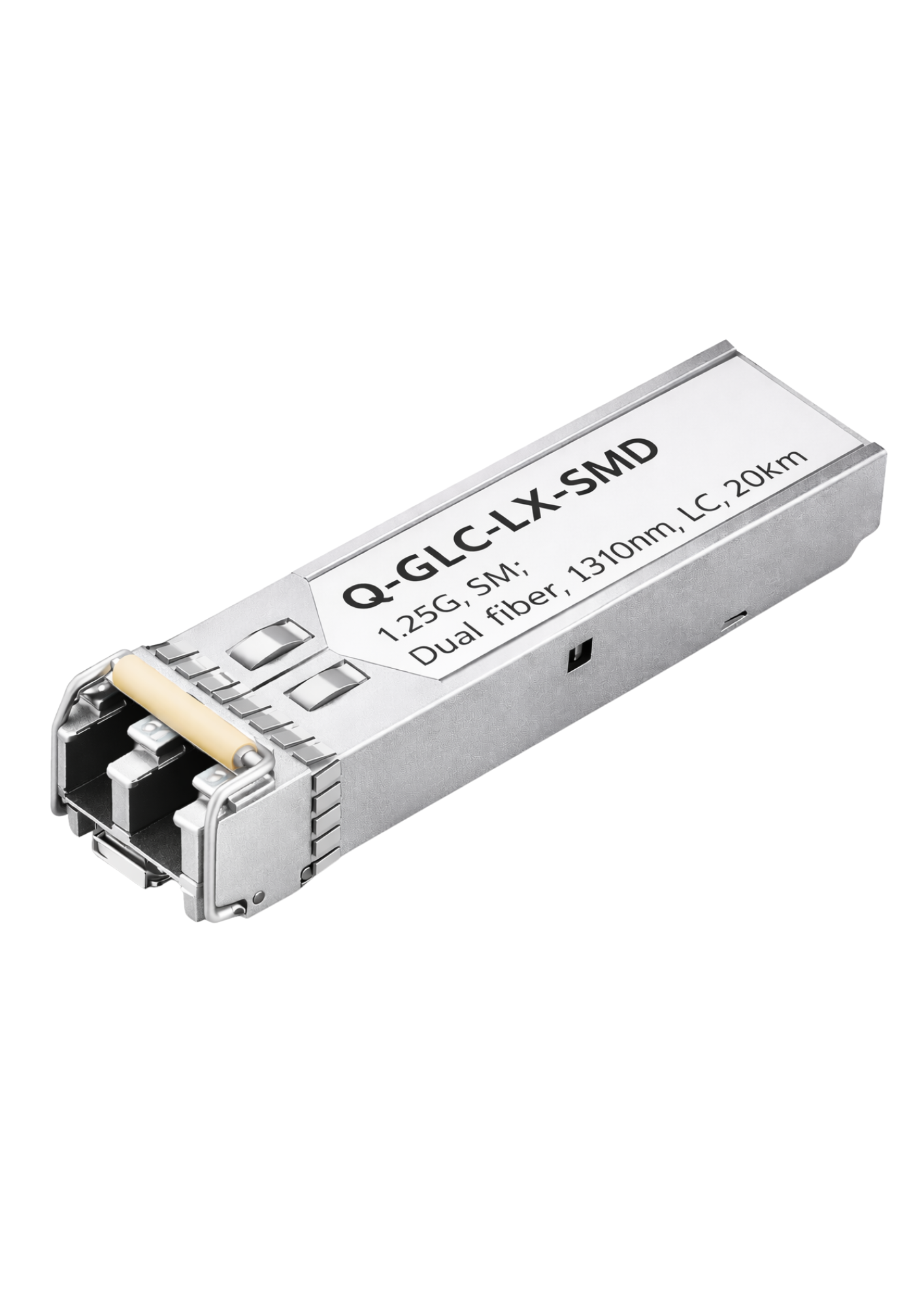

Q-GLC-LX-SMD
1.25G SFP SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM

Technical Specification

  • Form Factor: Hot-pluggable SFP module
  • Data Rate: 1.0625 – 1.25 Gb/s
  • Wavelength: 1310 nm FP laser transmitter
  • Fiber Type / Connector: Single-mode fiber (SMF), Duplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Power Supply / Consumption: Single +3.3 V, <0.8 W
  • Operating Temperature: 0°C to +70°C

Description

The Q-GLC-LX-SMD is a hot-pluggable 1.25G SFP single-mode optical transceiver designed for Gigabit Ethernet and fiber channel applications over single-mode fiber. Operating at a 1310 nm wavelength, it supports transmission distances up to 20 km using a duplex LC optical interface. The module complies with SFP Multi-Source Agreement (MSA) and SFF-8472 standards and supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of transceiver parameters.

Product Advantage and Applications

  • Long-Distance Optical Connectivity
    Supports 1.25 Gb/s data transmission for Gigabit Ethernet networks
    Operates at 1310 nm wavelength for stable long-distance communication
    Transmission distance up to 20 km over single-mode fiber
  • Flexible Network Integration
    Standard hot-pluggable SFP form factor for easy installation and replacement
    Duplex LC optical interface for reliable fiber connectivity
    Compliant with SFP MSA and SFF-8472 standards ensuring broad compatibility
  • Efficient and Reliable Operation
    Low power consumption (<0.8 W) for energy-efficient performance
    Powered by single 3.3 V supply for stable operation
    Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring
  • Typical Network Applications
    Gigabit Ethernet fiber links
    Fiber Channel communication systems
    Switch-to-switch interconnects
    Router and server fiber interfaces
    Optical transmission systems
ENQUIRE NOW
File Name Size Download
Q-GLC-LX-SMD-1.pdf 1.08 MB Download
