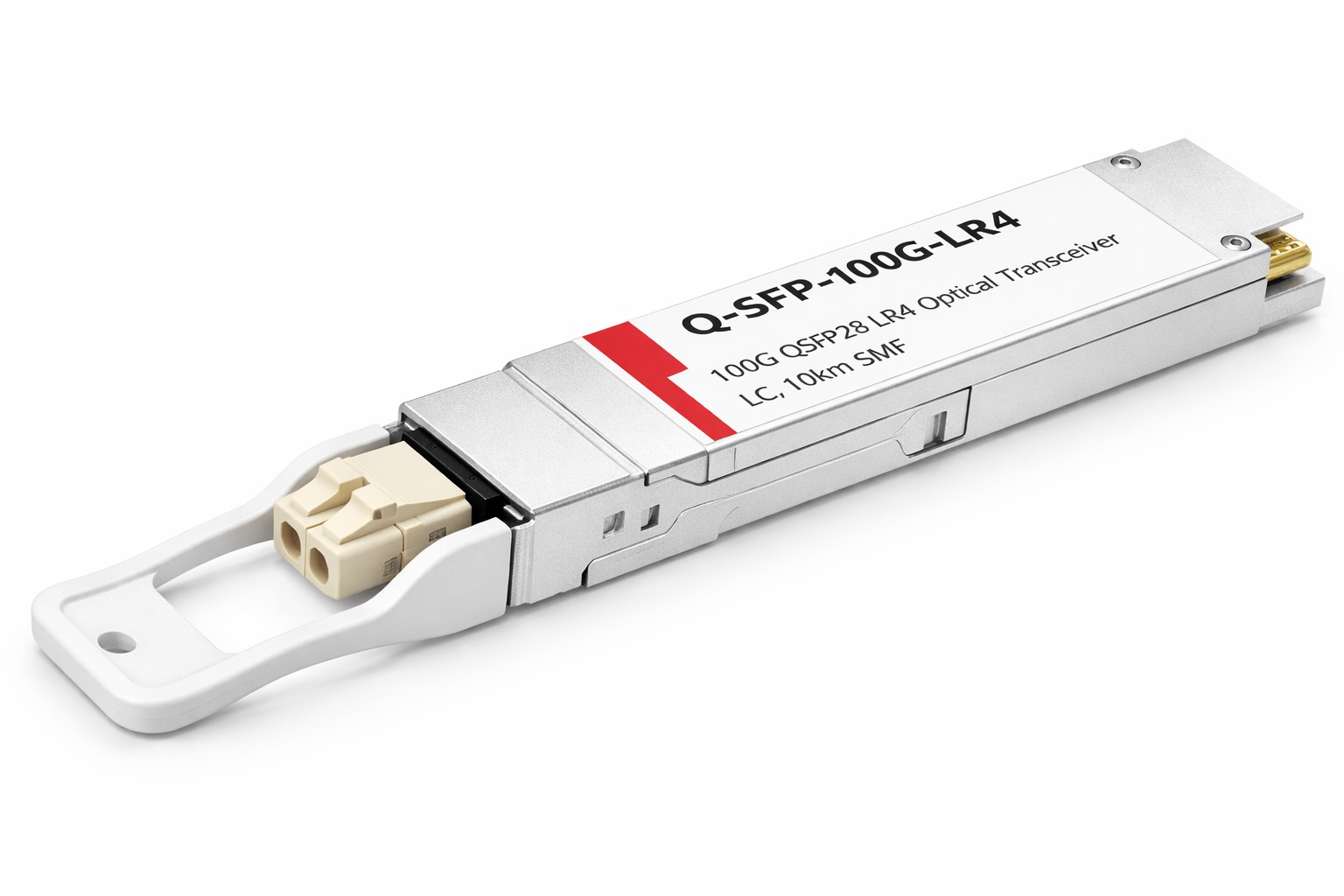

Q-SFP-100G-LR4<br><span>SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC - 10 KM</span>

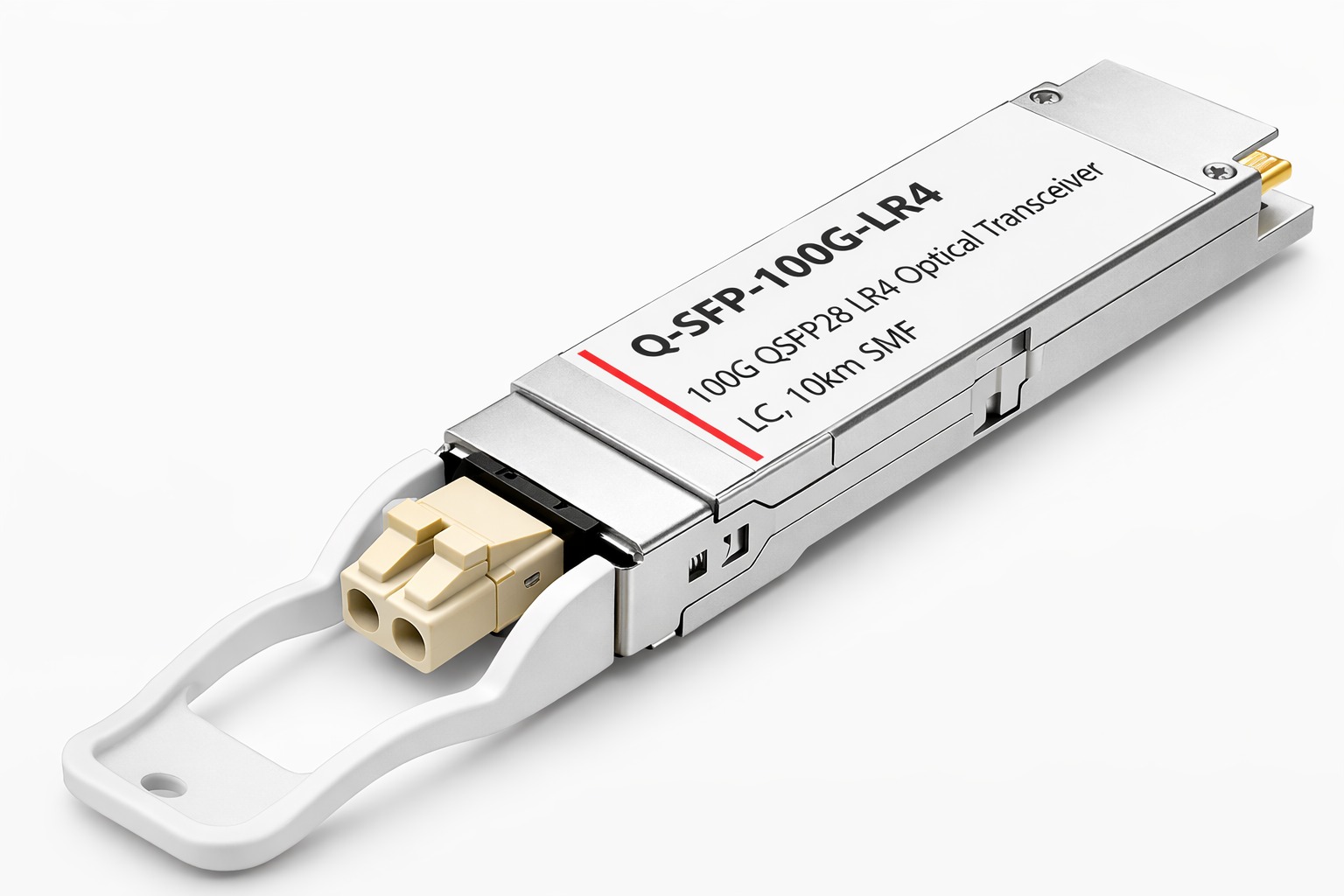

Q-SFP-100G-LR4<br><span>SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC - 10 KM</span> - Image 2

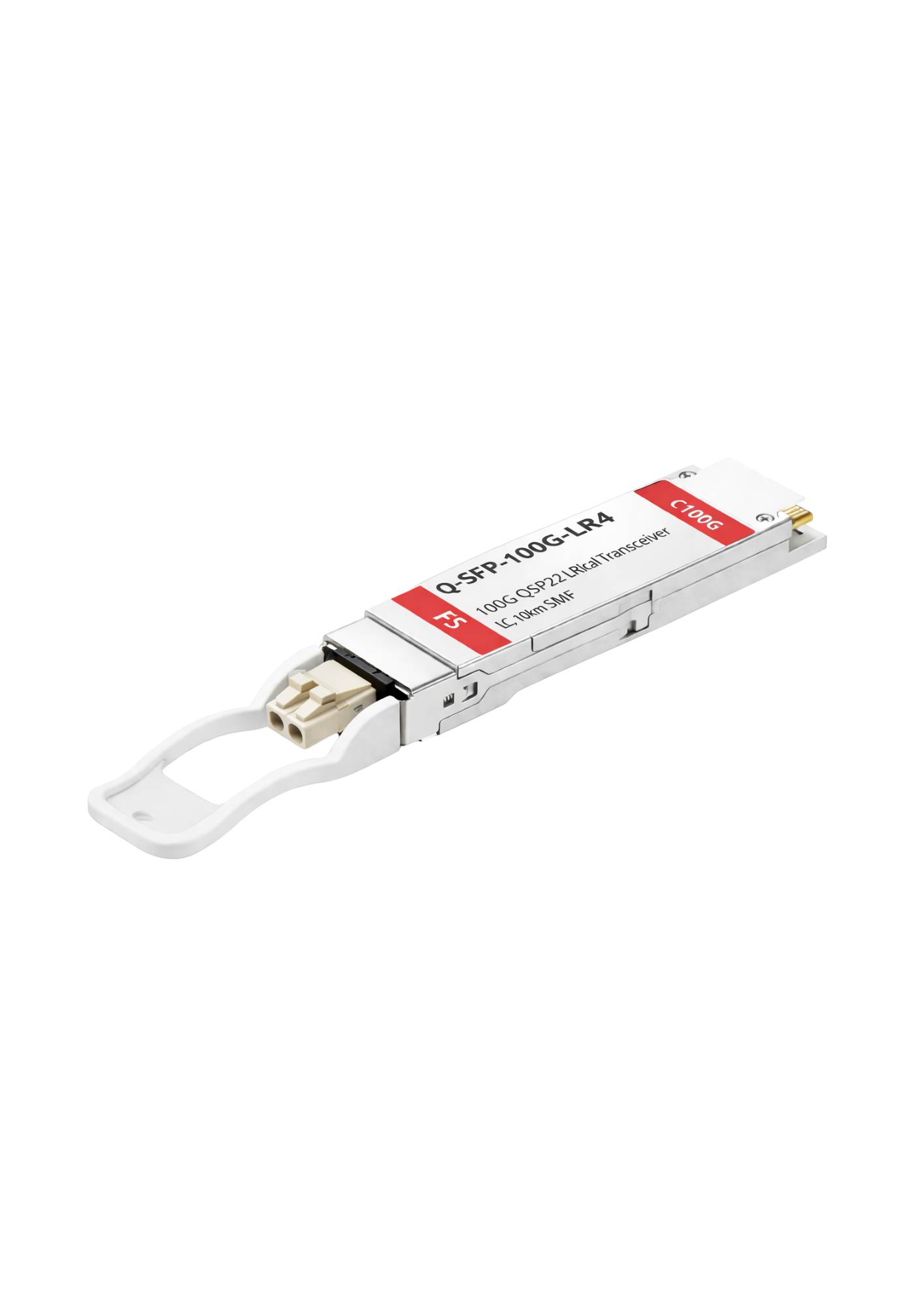

Q-SFP-100G-LR4<br><span>SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC - 10 KM</span> - Image 3

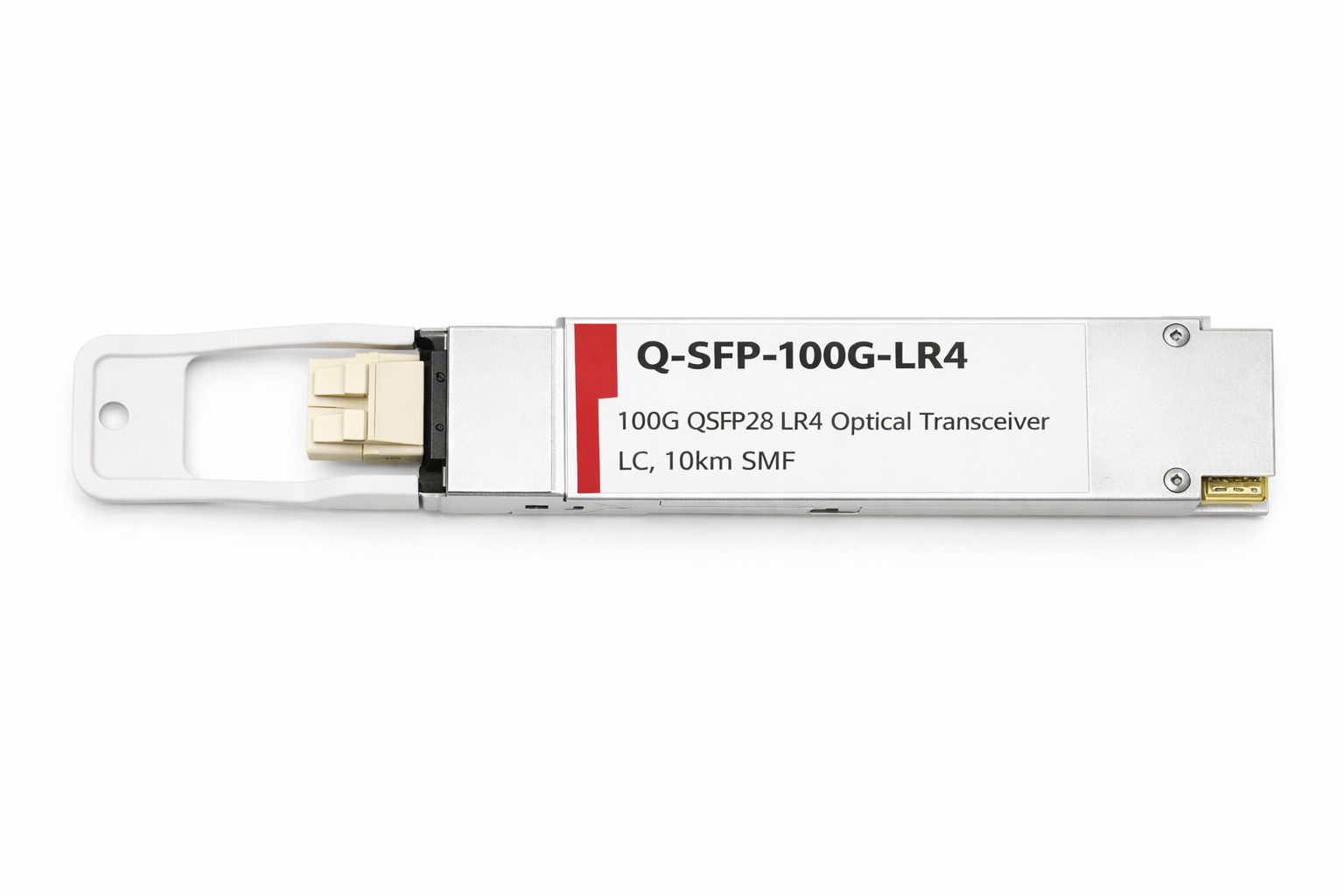

Q-SFP-100G-LR4<br><span>SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC - 10 KM</span> - Image 4

Q-SFP-100G-LR4
SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC – 10 KM

Technical Specification

  • Form Factor: QSFP28 hot-pluggable optical module
  • Standards Compliance: IEEE 802.3ba 100GBASE-LR4
  • Data Rate: 103.1 Gb/s aggregate
  • Fiber Type / Connector: Single-mode fiber (G.652 SMF), Duplex LC
  • Maximum Transmission Distance: Up to 10 km
  • Wavelength: 1295.56 / 1300.05 / 1304.58 / 1309.14 nm (LAN-WDM)
  • Power Supply / Consumption: Single +3.3 V, maximum 4.0 W

Description

The Q-SFP-100G-LR4 is a hot-pluggable QSFP28 optical transceiver designed for high-speed 100G Ethernet transmission over single-mode fiber. It supports 100GBASE-LR4 operation with LAN-WDM technology and provides a duplex LC optical interface with transmission distances up to 10 km on G.652 SMF. The module also supports digital diagnostic monitoring (DDM) for real-time monitoring of operating parameters and network performance.

Product Advantage and Applications

  • High-Speed 100G Optical Connectivity
    Supports 103.1 Gb/s aggregate data rate for high-bandwidth networking
    Utilizes 4 × 25G electrical interface for efficient high-speed transmission
    LAN-WDM technology enables reliable long-distance fiber communication
  • Reliable Long-Distance Performance
    Transmission distance up to 10 km over single-mode fiber
    Optimized for data center and enterprise network environments
    Stable optical performance for backbone and aggregation networks
  • Flexible Network Integration
    Standard QSFP28 hot-pluggable form factor for easy installation
    Duplex LC optical interface for reliable fiber connectivity
    Compliant with IEEE 802.3ba 100GBASE-LR4 standards
  • Efficient Monitoring and Power Management
    Supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics
    Maximum power consumption 4.0 W for efficient energy usage
    Reliable operation for high-performance networking systems
  • Typical Network Applications
    100G Ethernet backbone and aggregation links
    Data center and enterprise networking
    Switch-to-switch and switch-to-router interconnections
    QSFP28 optical uplinks over single-mode fiber
ENQUIRE NOW
File Name Size Download
Q-SFP-100G-LR4-1.pdf 1,012.87 KB Download

Related Products

Q-GLC-BX-U / Q-GLC-BX-D
1.25G SFP BIDI LC 20KM SINGLE-FIBER OPTICAL TRANSCEIVER

Read More

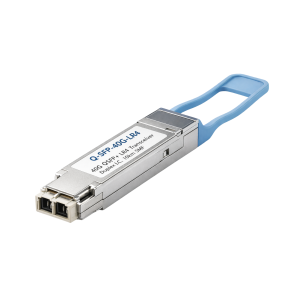

Q-SFP-40G-LR4
40G QSFP+ LR4 OPTICAL TRANSCEIVER, DUPLEX LC, 10KM SMF

Read More

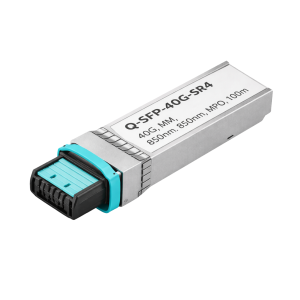

Q-SFP-40G-SR4
40G QSFP+ SR4 850NM MPO MULTIMODE TRANSCEIVER, 150M

Read More

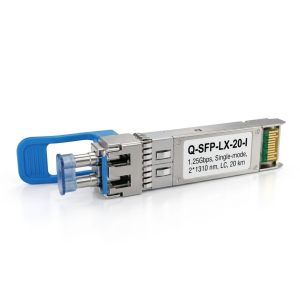

Q-SFP-LX-20-I
