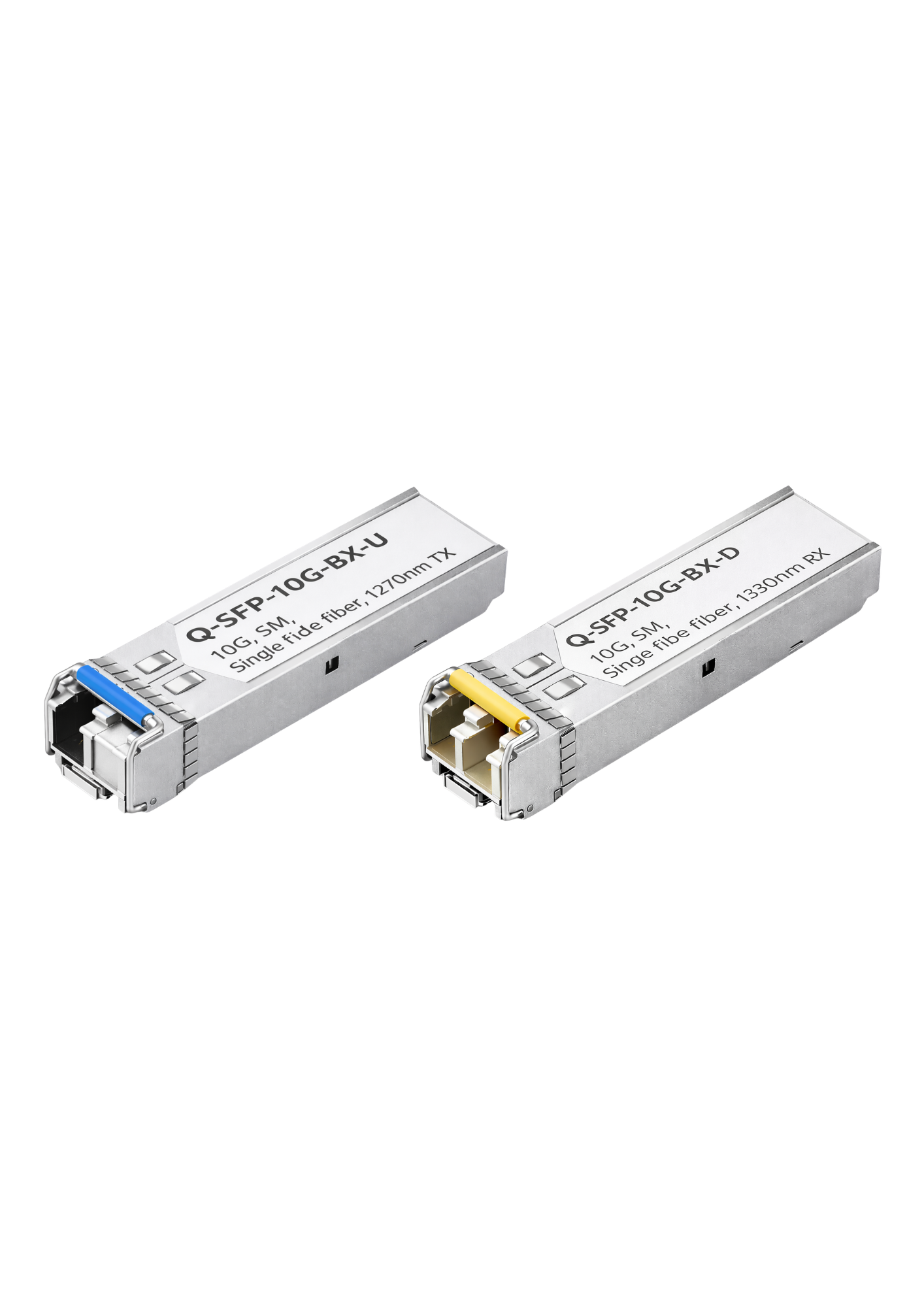

Q-SFP-10G-BX-U / Q-SFP-10G-BX-D<br><span>10GB/S SFP+ BI-DIRECTIONAL TRANSCEIVER - 20KM</span>

Q-SFP-10G-BX-U / Q-SFP-10G-BX-D
10GB/S SFP+ BI-DIRECTIONAL TRANSCEIVER – 20KM

Technical Specification

  • Form Factor: SFP+ hot-pluggable optical module
  • Data Rate: 9.95 Gb/s to 10.3 Gb/s
  • Fiber Type / Connector: Single-mode fiber (SMF), Simplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Wavelength: 1270 nm TX / 1330 nm RX (BX-U) and 1330 nm TX / 1270 nm RX (BX-D)
  • Transmitter / Receiver: DFB laser transmitter, PIN photodiode receiver
  • Power Supply / Consumption: Single +3.3 V, <1 W

Description

The Q-SFP-10G-BX-U and Q-SFP-10G-BX-D are hot-pluggable SFP+ bi-directional optical transceivers designed for 10-Gigabit Ethernet transmission over single-mode fiber. These modules enable bi-directional communication over a single fiber by transmitting and receiving signals at different wavelengths. The BX-U module transmits at 1270 nm and receives at 1330 nm, while the BX-D module transmits at 1330 nm and receives at 1270 nm. When used together as a pair, they support transmission distances up to 20 km over single-mode fiber.

Product Advantage and Applications

  • Efficient Single-Fiber Communication
    Bi-directional transmission enables communication over a single fiber
    Reduces fiber infrastructure and installation costs
    Supports 10G high-speed optical data transmission
  • Reliable Long-Distance Performance
    Supports transmission distances up to 20 km over single-mode fiber
    Stable optical performance for enterprise and telecom networks
    Designed for reliable long-distance connectivity
  • Flexible Network Integration
    Standard hot-pluggable SFP+ form factor for easy installation
    Simplex LC optical connector simplifies fiber connectivity
    Compliant with SFP+ MSA and IEEE 802.3ae standards
  • Intelligent Monitoring and Efficiency
    Supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics
    Low power consumption (<1 W) for efficient operation
    Stable operation within commercial temperature range (0°C to 70°C)
  • Typical Network Applications
    10GBASE-LR / LW Ethernet links
    10G Fiber Channel communication systems
    Switch-to-switch interconnections
    Data center networking infrastructure
    Enterprise network uplinks
ENQUIRE NOW
File Name Size Download
Q-SFP-10G-BX-U-Q-SFP-10G-BX-D-1.pdf 1.30 MB Download

Related Products

Q-GLC-LX-SMD
1.25G SFP SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM

Read More

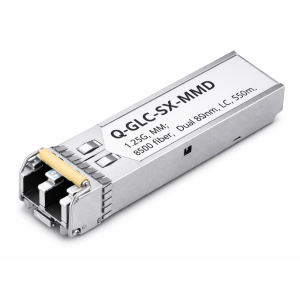

Q-GLC-SX-MMD
1.25G SFP MULTIMODE OPTICAL TRANSCEIVER, LC, UP TO 550 M

Read More

Q-SFP-100G-SR4
100G QSFP28 SR4 OPTICAL TRANSCEIVER, MPO-12, 100M MMF

Read More

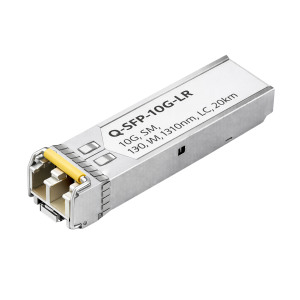

Q-SFP-10G-LR
