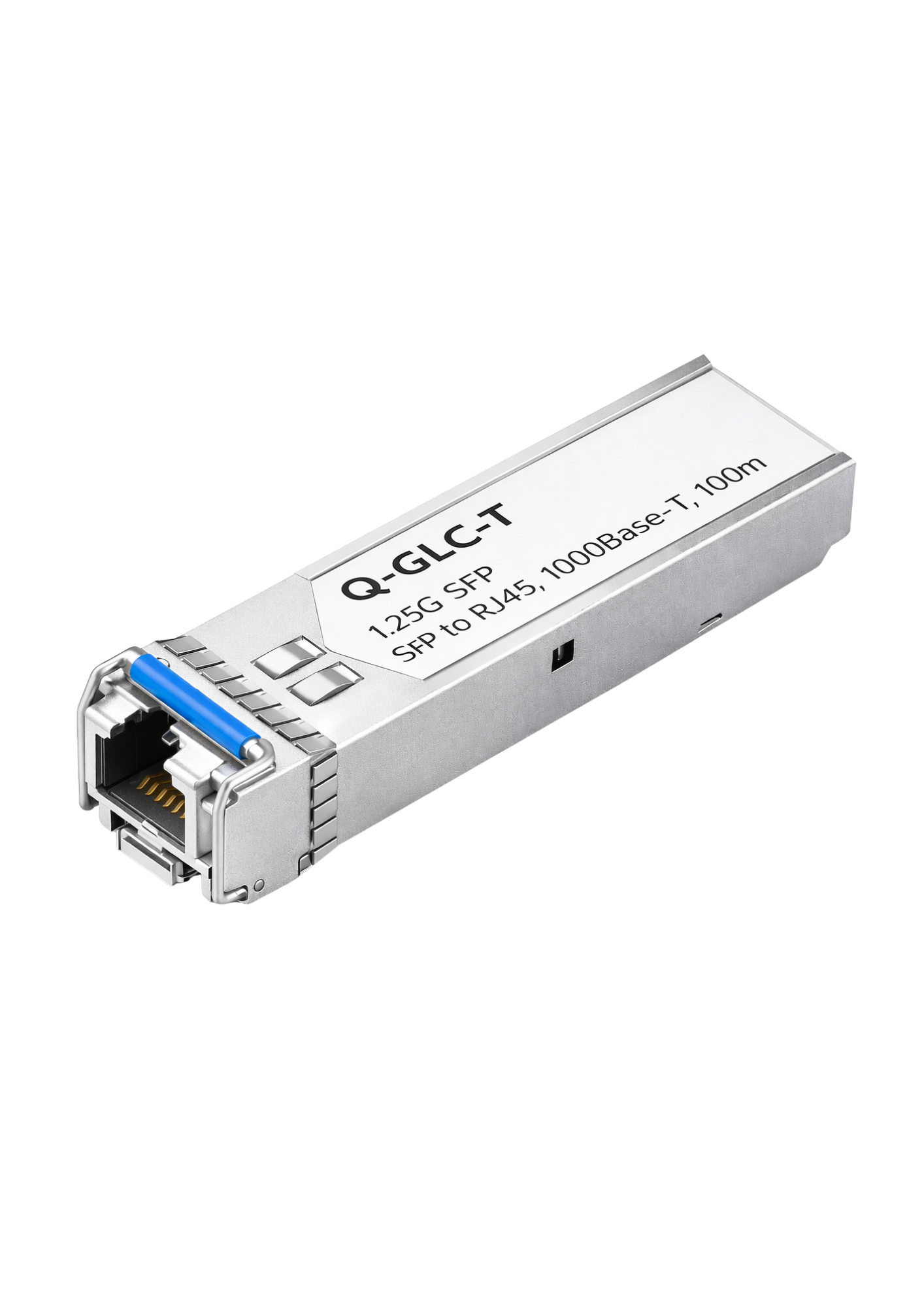

Q-GLC-T | 10/100/1000BASE-T SFP COPPER RJ-45 100M TRANSCEIVER

Technical Specification

Form Factor: SFP hot-pluggable copper module
Data Rate: 10 / 100 / 1000 Mbps
Cable Type / Connector: Cat5e / Cat6 UTP copper cable, RJ-45 connector
Maximum Transmission Distance: Up to 100 m
Standards Compliance: IEEE 802.3, IEEE 802.3ab
Electrical Interface: SGMII
Power Supply: Single +3.3 V

Description

The Q-GLC-T is a hot-pluggable SFP copper transceiver designed for Gigabit Ethernet connectivity over twisted-pair copper cables. It supports 10/100/1000BASE-T operation and provides reliable network connectivity up to 100 meters using Cat5e or Cat6 UTP cables. The module complies with the SFP Multi-Source Agreement (MSA) and IEEE 802.3 / 802.3ab standards, ensuring compatibility with a wide range of switches, routers, and networking equipment.

Product Advantage and Applications

Reliable Gigabit Copper Connectivity
Supports 10/100/1000BASE-T Ethernet communication
Provides stable Gigabit data transmission over copper networks
Designed for enterprise and commercial networking environments
Flexible Network Integration
Uses standard RJ-45 interface for easy copper network connectivity
Supports Cat5e and Cat6 twisted-pair cables
Transmission distance up to 100 m over copper cable
Compact and Durable Design
Standard hot-pluggable SFP form factor for simple installation
Fully metallic enclosure reduces EMI interference
Compact RJ-45 connector assembly for reliable connections
Efficient Power and System Integration
Powered by single +3.3 V supply
Supports 2-wire serial interface for PHY access and monitoring
Compliant with SFP MSA and IEEE Ethernet standards
Typical Network Applications
Gigabit Ethernet networks
Router and server interfaces
Switch-to-switch connections
LAN 10/100/1000BASE-T links
Copper uplinks for enterprise networks
