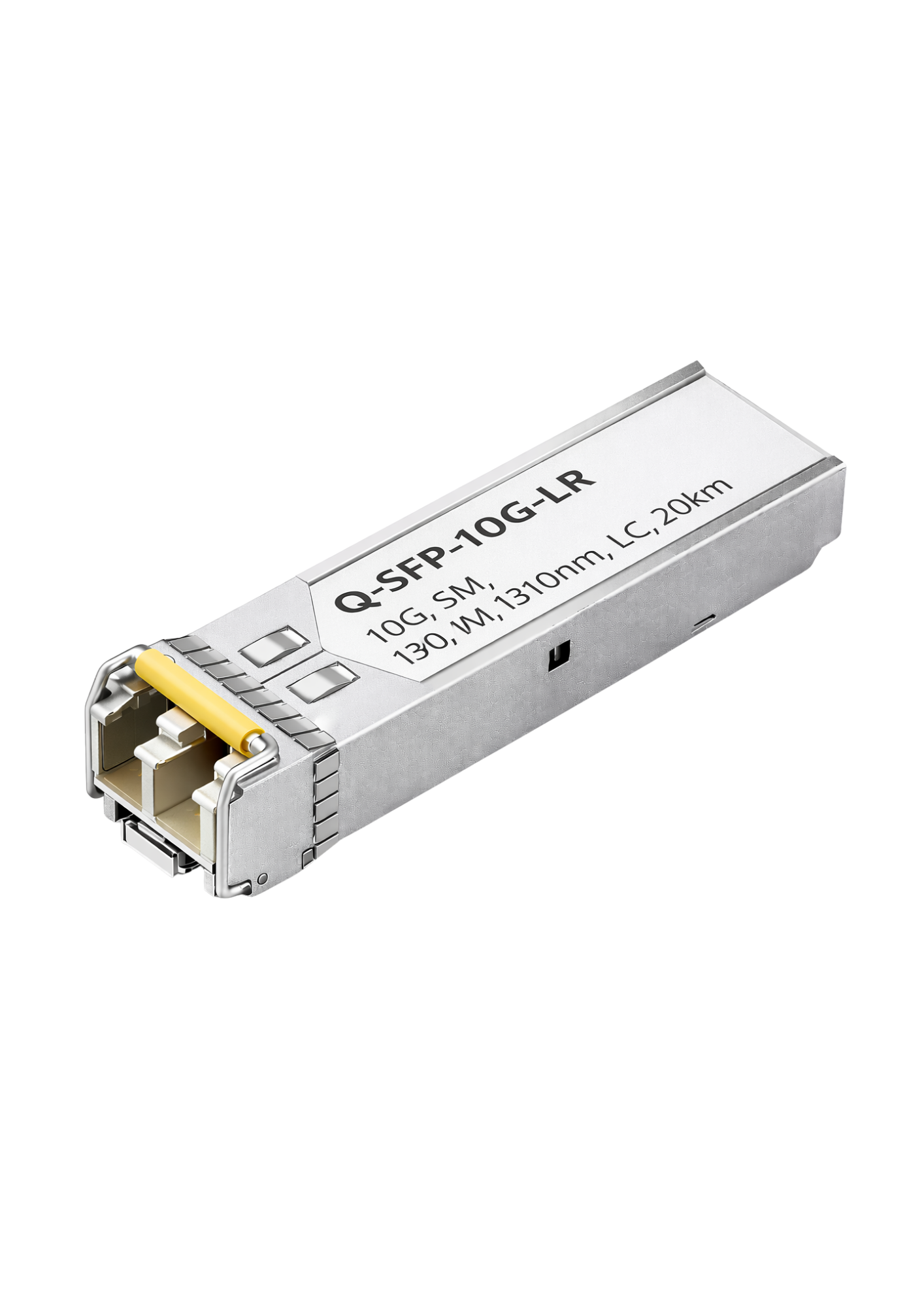

Q-SFP-10G-LR<br><span>10GB/S SFP+ 1310NM 20KM OPTICAL TRANSCEIVER</span>

Q-SFP-10G-LR
10GB/S SFP+ 1310NM 20KM OPTICAL TRANSCEIVER

Technical Specification

  • Form Factor: SFP+ hot-pluggable optical module
  • Data Rate: 9.95 Gb/s – 10.5 Gb/s
  • Fiber Type / Connector: Single-mode fiber (SMF), Duplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Wavelength: 1310 nm
  • Transmitter / Receiver: 1310 nm DFB laser transmitter, PIN photodiode receiver
  • Power Supply / Consumption: Single +3.3 V, <1 W

Description

The Q-SFP-10G-LR is a hot-pluggable SFP+ optical transceiver designed for 10-Gigabit Ethernet transmission over single-mode fiber. It utilizes an uncooled 1310 nm DFB transmitter and PIN receiver, enabling reliable optical communication over distances up to 20 km on single-mode fiber (SMF). The module complies with SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, ensuring compatibility with a wide range of networking equipment.

Product Advantage and Applications

  • High-Speed 10G Optical Connectivity
    Supports 10 Gb/s high-speed data transmission
    Uses 1310 nm DFB laser technology for stable long-distance communication
    Reliable optical performance for high-bandwidth networks
  • Reliable Long-Distance Transmission
    Supports transmission distances up to 20 km over single-mode fiber
    Stable performance for enterprise and telecom networks
    Optimized for backbone and uplink connectivity
  • Flexible Network Integration
    Standard hot-pluggable SFP+ form factor for easy installation
    Duplex LC optical connector for reliable fiber connections
    Compliant with SFP+ MSA and IEEE 802.3ae standards
  • Intelligent Monitoring and Efficiency
    Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring
    Low power consumption (<1 W) for efficient operation
    Stable operation within commercial temperature range (0°C to 70°C)
  • Typical Network Applications
    10GBASE-LR / LW Ethernet links
    10G Fiber Channel communication systems
    Switch-to-switch interconnections
    Data center networking infrastructure
    Enterprise network uplinks
ENQUIRE NOW
File Name Size Download
Q-SFP-10G-LR-1.pdf 1,014.86 KB Download
