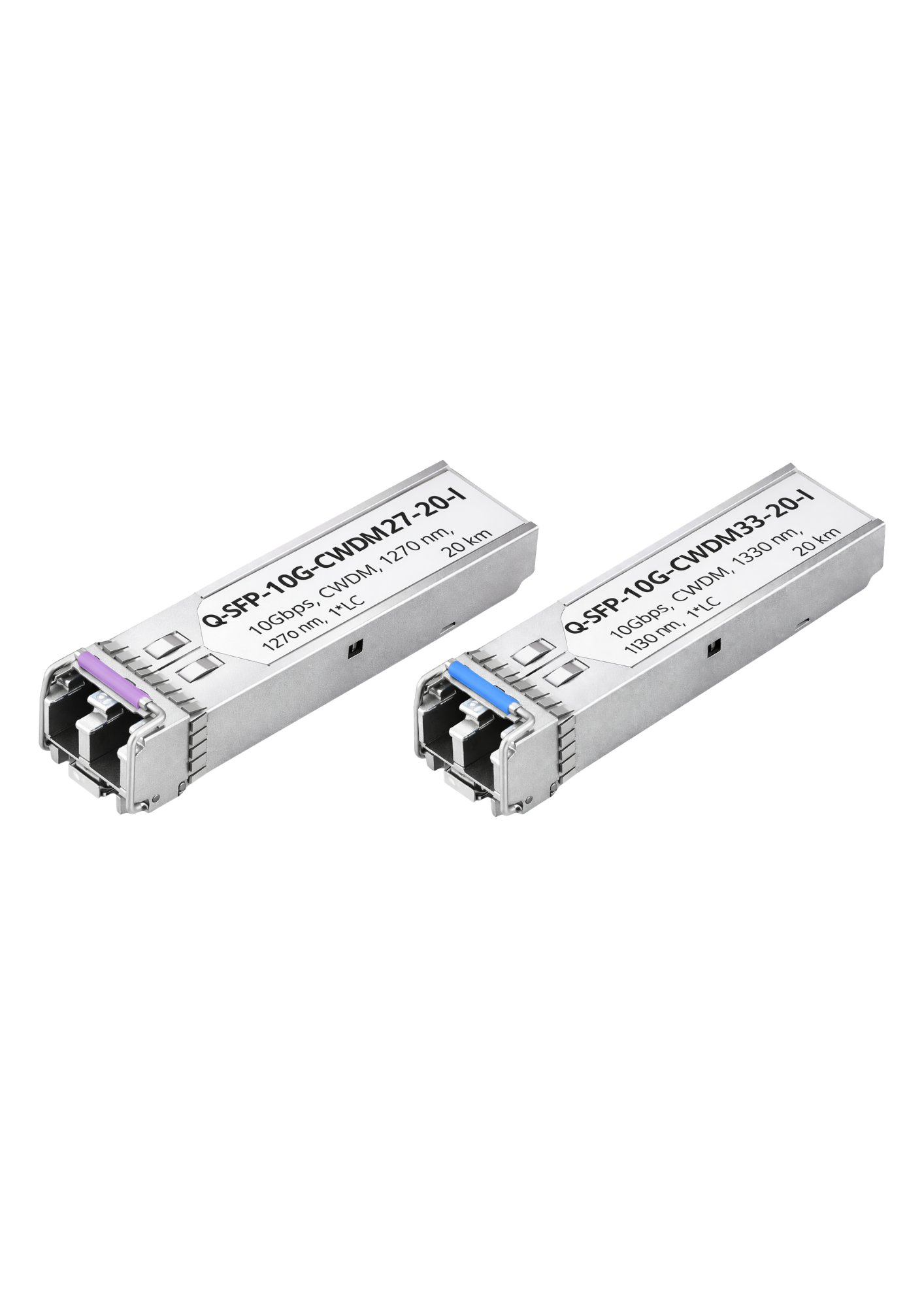

Q-SFP-10G-CWDM27/33-20-I<br><span>10GB/S SFP+ BI-DIRECTIONAL TRANSCEIVER</span>

Q-SFP-10G-CWDM27/33-20-I
10GB/S SFP+ BI-DIRECTIONAL TRANSCEIVER

Technical Specification

  • Form Factor: SFP+ hot-pluggable optical module
  • Data Rate: 9.95 – 10.3 Gb/s
  • Fiber Type / Connector: Single-mode fiber (SMF), Simplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Wavelength: 1270 nm (Q-SFP-10G-CWDM27-20-I) / 1330 nm (Q-SFP-10G-CWDM33-20-I)
  • Power Supply / Consumption: Single +3.3 V, <1 W
  • Operating Temperature: -40°C to +85°C

Description

The Q-SFP-10G-CWDM27-20-I and Q-SFP-10G-CWDM33-20-I are hot-pluggable SFP+ optical transceivers designed for 10 Gigabit Ethernet transmission over single-mode fiber. These modules utilize CWDM DFB laser technology and operate at 1270 nm and 1330 nm wavelengths, supporting transmission distances up to 20 km. They comply with IEEE 802.3ae 10GBASE-LR and SFF-8431 standards and include Digital Diagnostic Monitoring (DDM) for real-time monitoring of transceiver parameters. The modules are designed for industrial environments with operating temperatures from -40°C to +85°C.

Product Advantage and Applications

  • High-Speed 10G Optical Connectivity
    Supports 9.95–10.3 Gb/s high-speed data transmission
    CWDM DFB laser technology ensures stable optical performance
    Reliable connectivity for high-bandwidth fiber networks
  • Industrial-Grade Reliability
    Wide industrial operating temperature range (-40°C to +85°C)
    Designed for harsh telecom and enterprise environments
    Stable performance for long-term network operation
  • Flexible Network Integration
    Standard hot-pluggable SFP+ form factor for easy deployment
    Simplex LC optical connector simplifies fiber connections
    Compliant with IEEE 802.3ae and SFF-8431 standards
  • Intelligent Monitoring and Efficiency
    Supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics
    Low power consumption (<1 W) for efficient operation
    Reliable system monitoring including temperature and optical power
  • Typical Network Applications
    10GBASE-LR / 10GBASE-LW Ethernet links
    10G Fiber Channel communication systems
    Telecom and enterprise backbone networks
    Switch-to-switch interconnections
    Router and server interfaces
ENQUIRE NOW
File Name Size Download
Q-SFP-10G-CWDM27-20-I-Q-SFP-10G-CWDM33-20-I-1.pdf 1.29 MB Download
