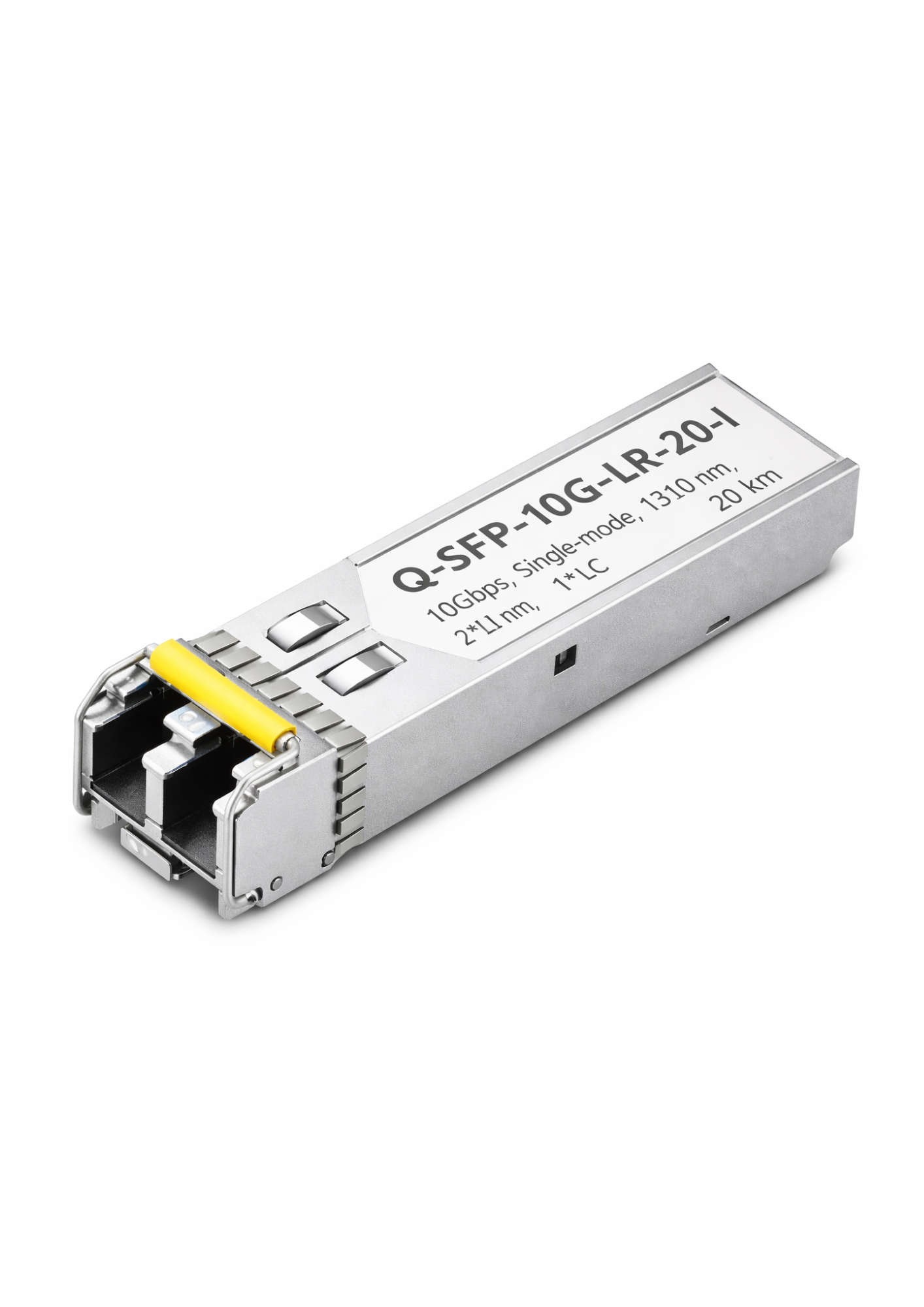

Q-SFP-10G-LR-20-I<br><span>10G SFP+ SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM</span>

Q-SFP-10G-LR-20-I
10G SFP+ SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM

Technical Specification

  • Form Factor: Hot-pluggable SFP+ module
  • Data Rate: 9.95 – 10.5 Gb/s
  • Wavelength: 1310 nm DFB laser transmitter
  • Fiber Type / Connector: Single-mode fiber (SMF), Duplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Power Supply / Consumption: Single +3.3 V, <1 W
  • Operating Temperature: −40°C to +85°C industrial range

Description

The Q-SFP-10G-LR-20-I is a hot-pluggable 10G SFP+ single-mode optical transceiver designed for high-speed 10 Gigabit Ethernet applications. Operating at a 1310 nm wavelength, it supports data rates from 9.95 Gb/s to 10.5 Gb/s and transmission distances up to 20 km over single-mode fiber (SMF). The module complies with IEEE 802.3ae 10GBASE-LR and SFF-8431 standards and provides Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters.

Product Advantage and Applications

  • High-Speed 10G Optical Connectivity
    Supports 10 Gigabit Ethernet data rates up to 10.5 Gb/s
    Reliable transmission over single-mode fiber up to 20 km
    Uses 1310 nm DFB laser for stable long-distance communication
  • Industrial-Grade Reliability
    Wide operating temperature range −40°C to +85°C
    Designed for industrial and telecom network environments
    Stable performance for continuous high-bandwidth transmission
  • Flexible Network Integration
    Standard hot-pluggable SFP+ form factor for easy deployment
    Duplex LC optical interface for secure fiber connectivity
    Compliant with IEEE 802.3ae 10GBASE-LR and SFF-8431 standards
  • Intelligent Monitoring and Efficiency
    Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring
    Low power consumption (<1 W) for energy-efficient operation
    Stable performance with PIN photodiode receiver
  • Typical Network Applications
    10GBASE-LR / 10GBASE-LW Ethernet links
    10G Fiber Channel communication systems
    Switch-to-switch high-speed interconnects
    Router and server fiber interfaces
    Enterprise and telecom backbone networks
ENQUIRE NOW
File Name Size Download
Q-SFP-10G-LR-20-I-1.pdf 1.02 MB Download
