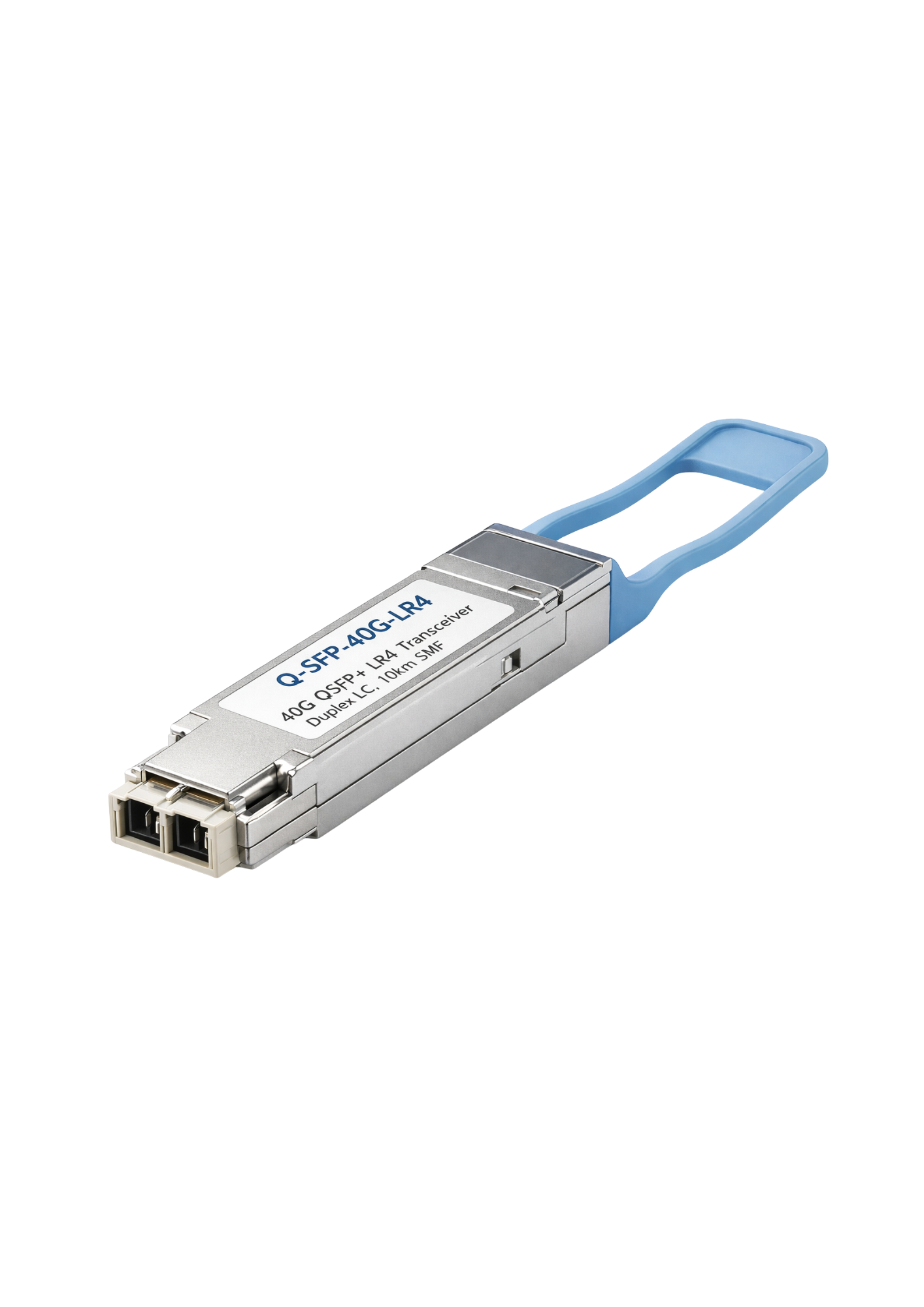

Q-SFP-40G-LR4<br><span>40G QSFP+ LR4 OPTICAL TRANSCEIVER, DUPLEX LC, 10KM SMF</span>

Q-SFP-40G-LR4
40G QSFP+ LR4 OPTICAL TRANSCEIVER, DUPLEX LC, 10KM SMF

Technical Specification

  • Form Factor: QSFP+ hot-pluggable optical module
  • Data Rate: 40 Gb/s aggregate
  • Fiber Type / Connector: Single-mode fiber (SMF), Duplex LC
  • Maximum Transmission Distance: Up to 10 km
  • Wavelength: 1271 / 1291 / 1311 / 1331 nm (CWDM channels)
  • Transmitter / Receiver: 4 × CWDM DFB lasers, PIN photodiode receiver
  • Power Supply / Consumption: Single +3.3 V, <3.5 W

Description

The Q-SFP-40G-LR4 is a hot-pluggable QSFP+ optical transceiver designed for 40-Gigabit Ethernet transmission over single-mode fiber. The module converts four 10 Gb/s electrical input channels into four CWDM optical signals, which are multiplexed into a single optical channel for 40 Gb/s transmission. On the receiver side, the optical signal is demultiplexed back into four channels and converted into electrical signals. The module supports transmission distances up to 10 km over single-mode fiber, making it suitable for high-speed network backbone connections.

Product Advantage and Applications

  • High-Speed 40G Optical Connectivity
    Supports 40 Gb/s aggregate bandwidth for high-performance networks
    Uses 4 × 10G CWDM optical channels for efficient high-speed transmission
    Advanced wavelength multiplexing technology improves fiber utilization
  • Reliable Long-Distance Transmission
    Supports transmission distances up to 10 km over single-mode fiber
    Optimized for enterprise and telecom backbone networks
    Stable performance for long-distance fiber communication
  • Flexible Network Integration
    Standard QSFP+ hot-pluggable form factor for easy deployment
    Duplex LC optical connector simplifies fiber connectivity
    Compatible with modern 40G Ethernet networking equipment
  • Efficient Power and Monitoring
    Low power consumption (<3.5 W) for energy-efficient operation
    Supports Digital Diagnostic Monitoring (DDM) for real-time diagnostics
    Reliable performance within commercial operating temperature range (0°C to 70°C)
  • Typical Network Applications
    40GBASE-LR4 Ethernet links
    Data center interconnect networks
    Telecom network infrastructure
    High-speed switch-to-switch connections
    Enterprise and campus backbone networks
ENQUIRE NOW
File Name Size Download
Q-SFP-40G-LR4-1.pdf 942.31 KB Download
