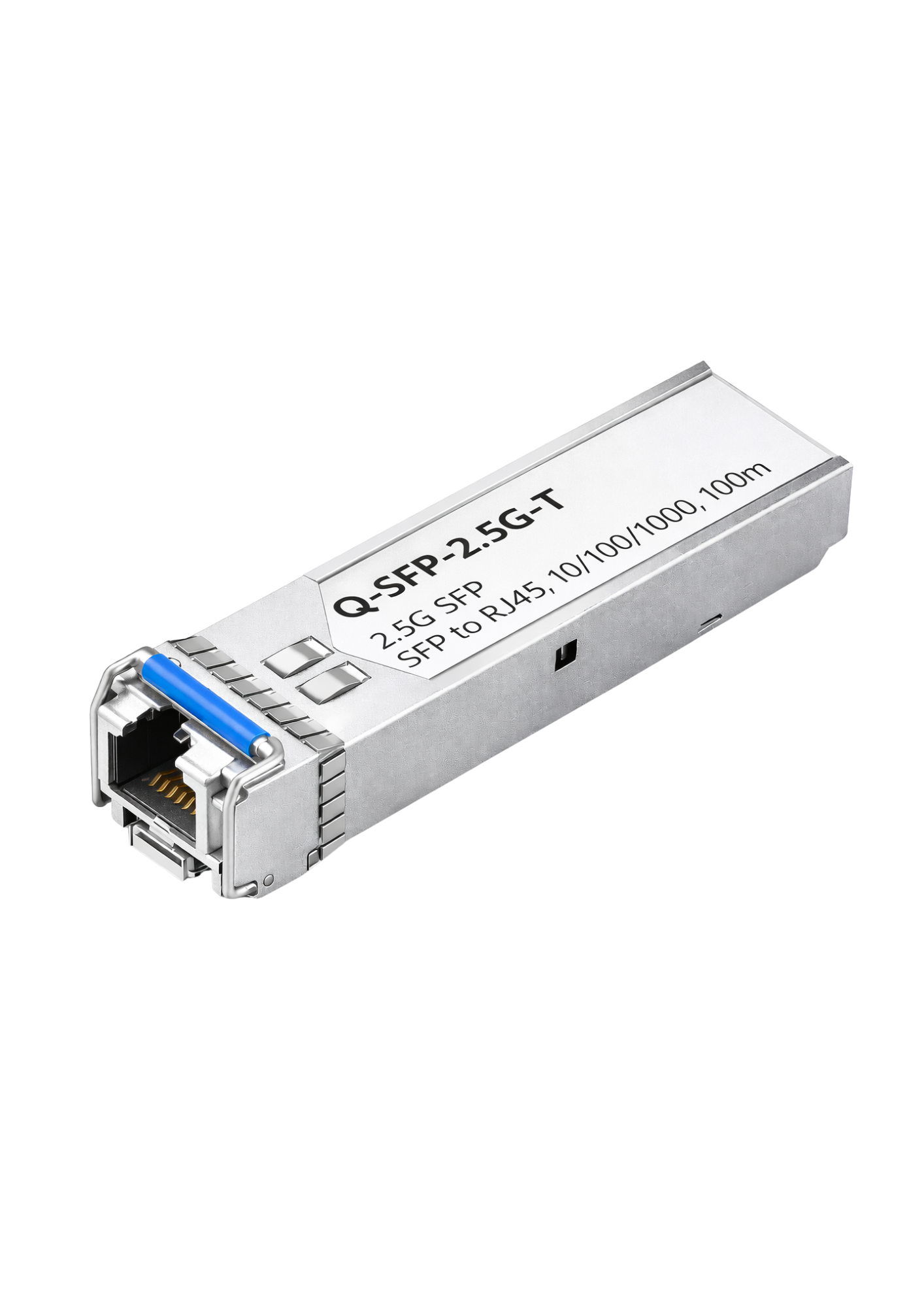

Q-SFP-2.5G-T<br><span>2.5GBASE-T COPPER SFP RJ-45 100M TRANSCEIVER</span>

Q-SFP-2.5G-T
2.5GBASE-T COPPER SFP RJ-45 100M TRANSCEIVER

Technical Specification

  • Form Factor: SFP hot-pluggable copper module
  • Data Rate: Up to 2.5 Gb/s
  • Interface: 2.5GBASE-T line port / 2.5GBASE-X host interface
  • Cable Type / Connector: Cat5e / Cat5A UTP copper cable, RJ-45 connector
  • Maximum Transmission Distance: Up to 100 m
  • Power Supply / Consumption: Single +3.3 V, <1.5 W
  • Operating Temperature: 0°C to +70°C

Description

The Q-SFP-2.5G-T is a hot-pluggable SFP copper transceiver designed for 2.5 Gigabit Ethernet connectivity over twisted-pair copper cables. It supports 2.5GBASE-T operation on the line port and 2.5GBASE-X interface on the host port, enabling seamless integration with switches, routers, and servers equipped with SFP interfaces. The module provides reliable data transmission up to 100 meters using Cat5e or Cat5A UTP cables, making it suitable for enterprise and multi-gigabit network deployments.

Product Advantage and Applications

  • High-Speed Multi-Gigabit Copper Connectivity
    Supports 2.5GBASE-T Ethernet communication
    Provides reliable data transmission up to 2.5 Gb/s
    Designed for modern multi-gigabit networking environments
  • Flexible Copper Infrastructure
    Uses standard RJ-45 interface for easy network integration
    Supports Cat5e and Cat5A twisted-pair cables
    Transmission distance up to 100 m over copper cable
  • Compact and Reliable Design
    Standard hot-pluggable SFP form factor for simple deployment
    Compact RJ-45 connector assembly for stable connections
    Reliable performance for enterprise networking
  • Efficient Power and System Integration
    Low power consumption (<1.5 W) for efficient operation
    Powered by single +3.3 V supply
    Supports seamless integration with SFP host interfaces
  • Typical Network Applications
    2.5 Gigabit Ethernet networks
    Enterprise LAN upgrades
    Router and server interfaces
    Switch-to-switch connections
    Multi-Gigabit copper uplinks
ENQUIRE NOW
File Name Size Download
Q-SFP-2.5G-T-1.pdf 1.02 MB Download

Related Products

Q-SFP-100G-LR4
SINGLE-MODE OPTICAL TRANSCEIVER, DUPLEX LC – 10 KM

Read More

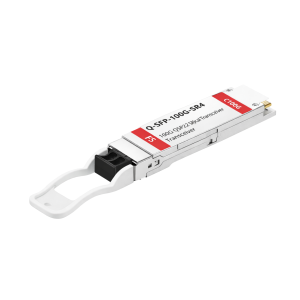

Q-SFP-100G-SR4
100G QSFP28 SR4 OPTICAL TRANSCEIVER, MPO-12, 100M MMF

Read More

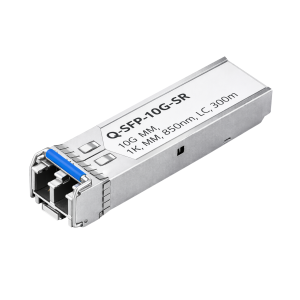

Q-SFP-10G-SR
10G SFP+ 850 NM MULTIMODE OPTICAL TRANSCEIVER, LC – 300 M

Read More

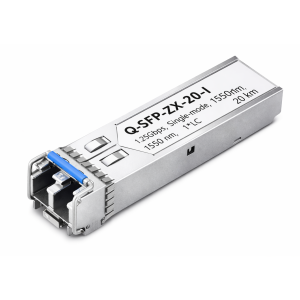

Q-SFP-ZX-20-I
