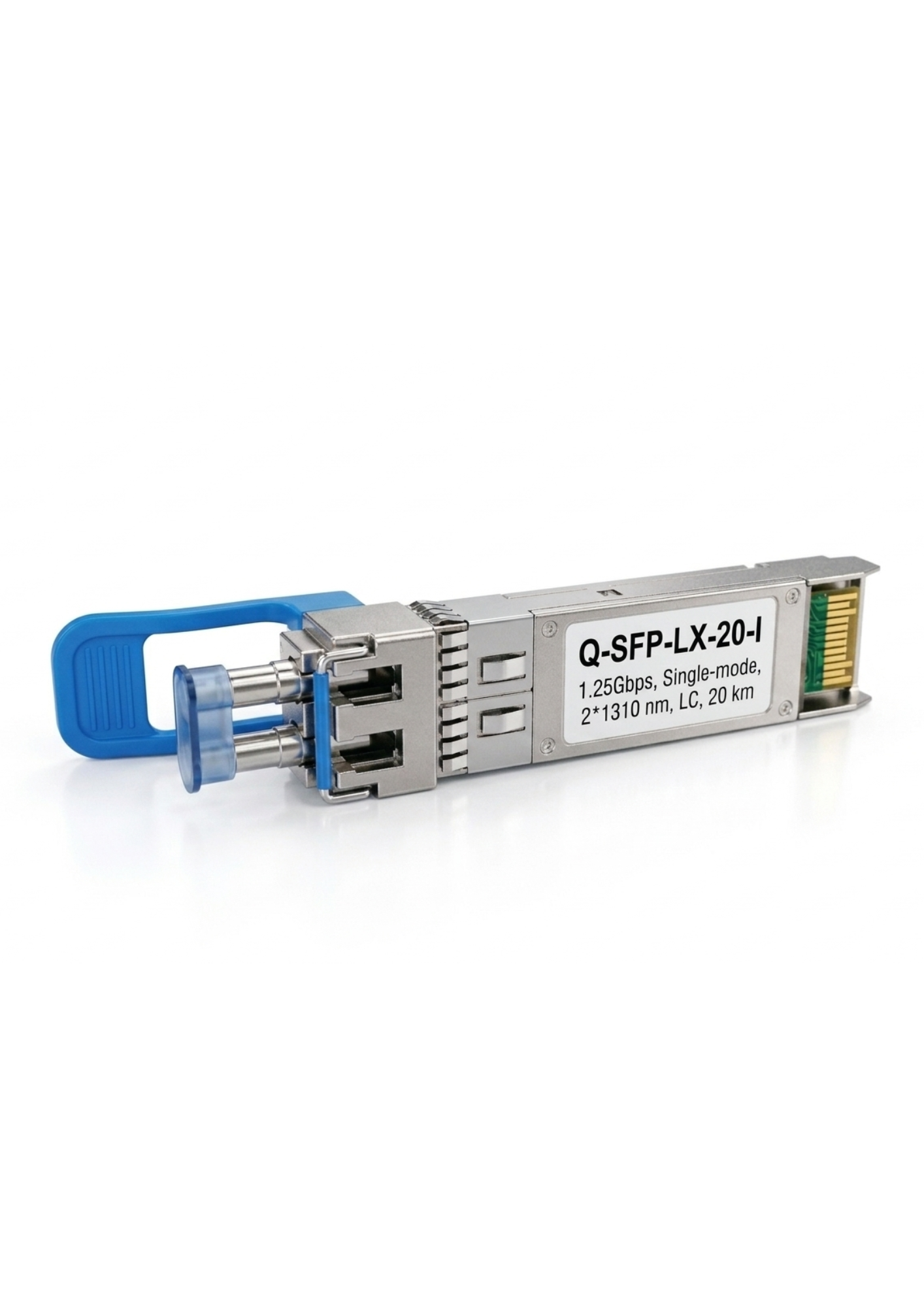

Q-SFP-LX-20-I<br><span>1G SFP SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM</span>

Q-SFP-LX-20-I
1G SFP SINGLE-MODE OPTICAL TRANSCEIVER, LC, UP TO 20 KM

Technical Specification

  • Form Factor: Hot-pluggable SFP module
  • Data Rate: 1.0625 – 1.25 Gb/s
  • Wavelength: 1310 nm
  • Fiber Type / Connector: Single-mode fiber (SMF), Duplex LC
  • Maximum Transmission Distance: Up to 20 km
  • Power Supply / Consumption: Single +3.3 V, <0.8 W
  • Operating Temperature: −40°C to +85°C industrial range

Description

The Q-SFP-LX-20-I is a hot-pluggable 1G SFP single-mode optical transceiver designed for Gigabit Ethernet and fiber channel applications. Operating at a 1310 nm wavelength, it supports transmission distances up to 20 km over single-mode fiber (SMF). The module complies with SFP MSA and SFF-8472 standards, providing reliable and efficient optical connectivity for industrial networking environments.

Product Advantage and Applications

  • Long-Distance Optical Connectivity
    Supports 1.0625 Gb/s to 1.25 Gb/s data rates for stable fiber communication
    Operates at 1310 nm wavelength for efficient long-distance transmission
    Provides reliable connectivity up to 20 km over single-mode fiber
  • Industrial-Grade Performance
    Wide operating temperature range −40°C to +85°C for industrial environments
    Stable performance for demanding networking applications
    Designed for continuous operation in harsh conditions
  • Flexible Network Integration
    Standard SFP hot-pluggable form factor for easy installation and replacement
    Duplex LC optical interface ensures secure fiber connectivity
    Compatible with networking devices following SFP MSA and SFF-8472 standards
  • Efficient Power and Intelligent Monitoring
    Low power consumption (<0.8 W) for energy-efficient operation
    Powered by single +3.3 V supply
    Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of temperature, voltage, and optical power
  • Typical Network Applications
    Gigabit Ethernet networks
    Fiber Channel communication systems
    Switch-to-switch fiber connectivity
    Router and server fiber interfaces
    Industrial Ethernet networking environments
ENQUIRE NOW
File Name Size Download
Q-SFP-LX-20-I-1.pdf 1.02 MB Download
