7300 Series – Gigabit 8-port L2+ managed industrial PoE switch with 8*100/1000M uplink SFP fiber ports – Q-IE-7300-8P-8S-E

Technical Specification

  • Switching Capacity: 128 Gbps (non-blocking)
  • Forwarding Rate: 23.81 Mpps
  • Buffer Memory: 12M
  • Jumbo Frame: 12K
  • Input Voltage: 30W
  • SFP Uplink: 8 × 100/1000Base-X SFP fiber ports
  • Dimension: 166*150*75mm

Description

The Quant 7300 managed industrial PoE switch series is a Gigabit managed industrial PoE switch with 8×100/1000Base-X SFP fiber ports and 8×10/100/1000Base-T RJ45 ports, supporting IEEE 802.3af/at PoE up to 30W per port. It powers devices like wireless APs, IP cameras, and VoIP phones through network cables, ideal for industrial, transportation, and energy applications. It features L2+ management, IPv4/IPv6, ACL/QoS, VLAN, and supports STP/RSTP/MSTP (<50ms) and ERPS (<20ms) for reliable network redundancy. Configuration and PoE management are available via Web, CLI, SNMP, or Telnet, ensuring flexible, secure, and stable communication in demanding environments.

Product Advantage and Applications

  • Gigabit Access & Uplink: 8×RJ45 and 8×SFP fiber ports with non-blocking wire-speed
    forwarding and flexible full/half-duplex operation.
  • Smart PoE: Supports IEEE 802.3af/at PoE up to 30W per port with power allocation, priority
    control, and scheduling for APs, cameras, and sensors.
  • Advanced Networking: Supports ERPS, STP/RSTP/MSTP, VLAN, QoS, ACL, IGMP Snooping, and link aggregation for reliable, high-performance communication.
  • Enhanced Security: Features port isolation, storm suppression, 802.1X authentication, and
    IP+MAC+port+VLAN binding.
  • Industrial Design: Aluminum alloy housing, low power consumption, LED indicators, and
    certifications (CCC, CE, FCC, RoHS) ensure stability and durability.
ENQUIRE NOW
File Name Size Download
Quant-7300-Switch-Series-Q-IE-7300-16P-8S-E.pdf 1.36 MB Download

Related Products

208 Series 10M/250 meters transmission gigabit uplink 18-port PoE switch – Q-UM-208-16PLD-2EU

Read More

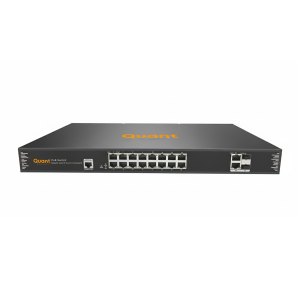

2800 Series – 16-Port Fast Ethernet PoE+ Managed Switch with 2 × RJ45 + 2 × SFP Combo Uplinks – Q-M-2800-16P-L2-2S-2EU

Read More

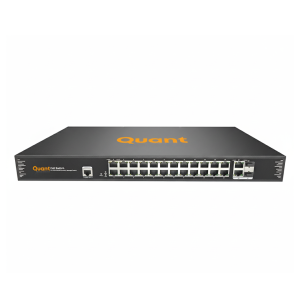

2800 Series – 24-Port Fast Ethernet PoE+ Managed Switch with 2 × RJ45 + 2 × SFP Combo Uplinks – Q-M-2800-24P-L2-2S-2EU

Read More

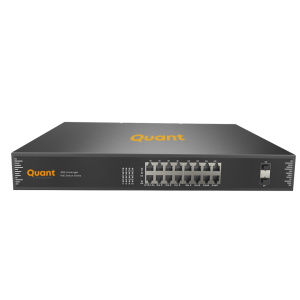

408 Series – 16-Port Gigabit PoE+ Unmanaged Switch with 2 × SFP Uplink Ports – Q-UM-408-16P-2G
