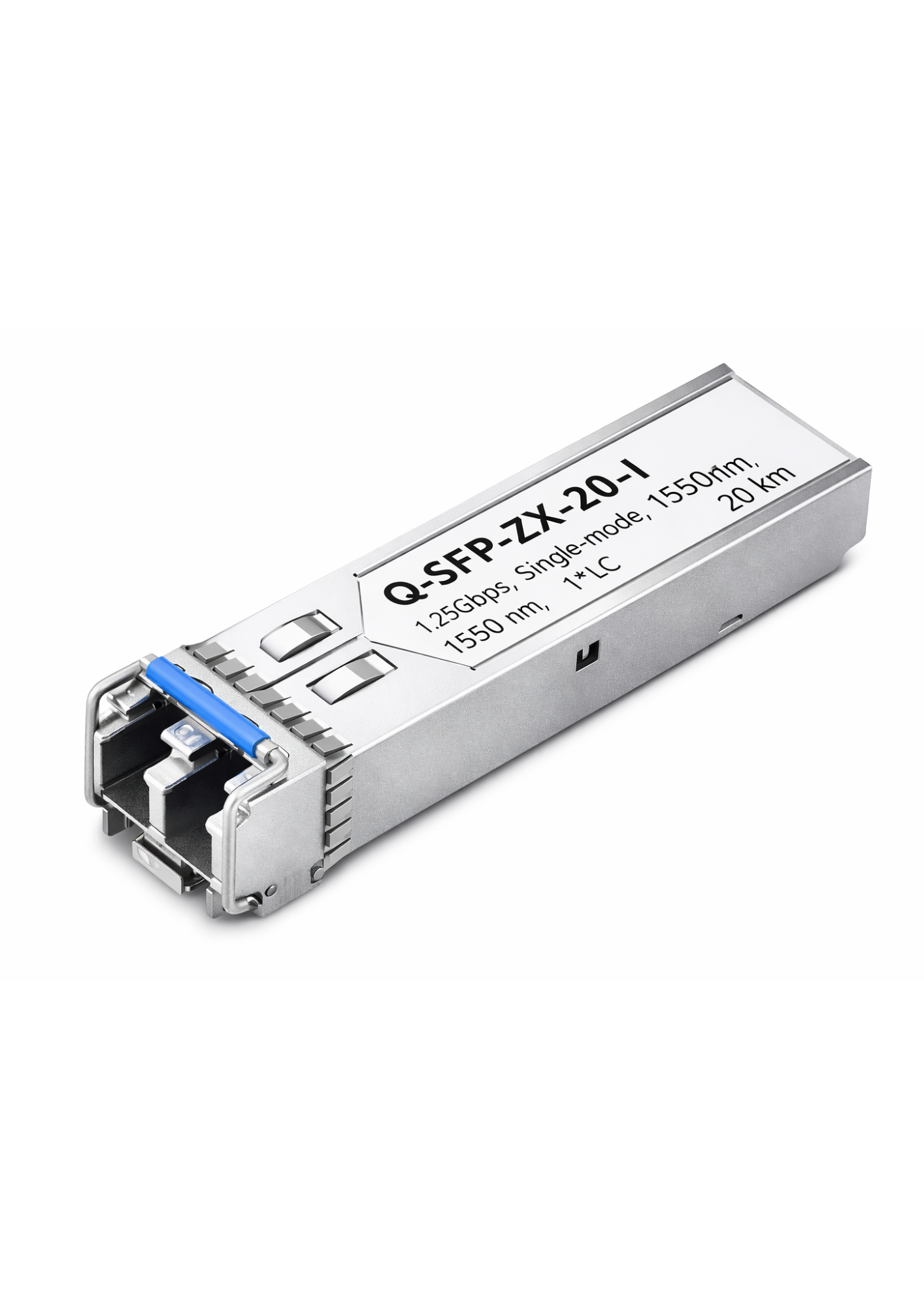

Q-SFP-ZX-20-I
1.25G SFP BIDI 1550NM LC 20KM INDUSTRIAL TRANSCEIVER

Technical Specification

  • Form Factor: Hot-pluggable SFP module
  • Data Rate: Up to 1.25 Gb/s
  • Wavelength: 1310 nm / 1550 nm BiDi operation
  • Fiber Type / Connector: Single-mode fiber (SMF), Bi-Directional LC
  • Maximum Transmission Distance: Up to 20 km
  • Power Supply / Consumption: Single +3.3 V, <0.8 W
  • Operating Temperature: −40°C to +85°C industrial range

Description

The Q-SFP-ZX-20-I is a hot-pluggable 1.25G SFP Bi-Directional optical transceiver designed for Gigabit Ethernet and fiber channel applications. It operates over single-mode fiber (SMF) using 1310 nm / 1550 nm bidirectional wavelengths, enabling communication over a single fiber while supporting transmission distances up to 20 km. The module complies with SFP MSA and SFF-8472 standards and supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters.

Product Advantage and Applications

  • Efficient Single-Fiber Communication
    Bi-directional transmission enables data transmission over a single fiber
    Reduces fiber infrastructure requirements and installation costs
    Supports 1.25 Gb/s high-speed optical communication
  • Long-Distance Industrial Connectivity
    Reliable transmission up to 20 km over single-mode fiber
    Wide industrial operating temperature −40°C to +85°C
    Designed for demanding industrial networking environments
  • Flexible Network Integration
    Standard hot-pluggable SFP form factor for easy deployment
    Bi-Directional LC optical interface for simplified fiber connections
    Compliant with SFP MSA and SFF-8472 standards for broad compatibility
  • Intelligent Monitoring and Efficiency
    Supports Digital Diagnostic Monitoring (DDM) for real-time parameter monitoring
    Low power consumption (<0.8 W) for energy-efficient operation
    Stable optical performance with PIN photodiode receiver
  • Typical Network Applications
    Gigabit Ethernet networks
    Fiber Channel communication systems
    Switch-to-switch fiber connectivity
    Router and server fiber interfaces
    Industrial Ethernet and optical transmission systems
ENQUIRE NOW
File Name Size Download
Q-SFP-ZX-20-I-2.pdf 1.00 MB Download
